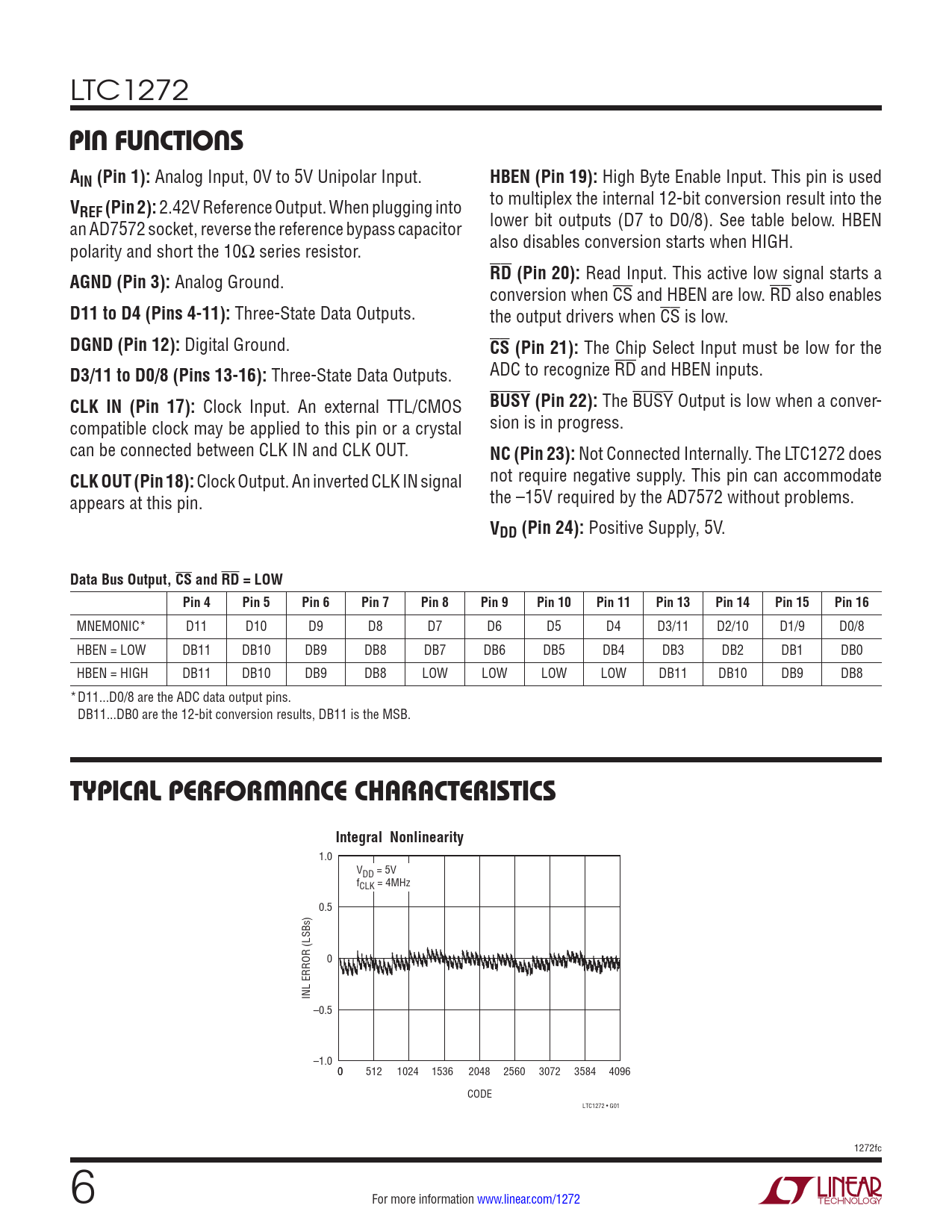

LTC1272
PIN FUNCTIONS AIN (Pin 1):
Analog Input, 0V to 5V Unipolar Input.
HBEN (Pin 19):
High Byte Enable Input. This pin is used
V
to multiplex the internal 12-bit conversion result into the
REF (Pin 2):
2.42V Reference Output. When plugging into an AD7572 socket, reverse the reference bypass capacitor lower bit outputs (D7 to D0/8). See table below. HBEN polarity and short the 10Ω series resistor. also disables conversion starts when HIGH.
AGND (Pin 3):
Analog Ground.
RD (Pin 20):
Read Input. This active low signal starts a conversion when CS and HBEN are low. RD also enables
D11 to D4 (Pins 4-11):
Three-State Data Outputs. the output drivers when CS is low.
DGND (Pin 12):
Digital Ground.
CS (Pin 21):
The Chip Select Input must be low for the
D3/11 to D0/8 (Pins 13-16):
Three-State Data Outputs. ADC to recognize RD and HBEN inputs.
CLK IN (Pin 17):
Clock Input. An external TTL/CMOS
BUSY (Pin 22):
The BUSY Output is low when a conver- compatible clock may be applied to this pin or a crystal sion is in progress. can be connected between CLK IN and CLK OUT.
NC (Pin 23):
Not Connected Internally. The LTC1272 does
CLK OUT (Pin 18):
Clock Output. An inverted CLK IN signal not require negative supply. This pin can accommodate appears at this pin. the –15V required by the AD7572 without problems.
VDD (Pin 24):
Positive Supply, 5V.
Data Bus Output, CS and RD = LOW Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 Pin 10 Pin 11 Pin 13 Pin 14 Pin 15 Pin 16
MNEMONIC* D11 D10 D9 D8 D7 D6 D5 D4 D3/11 D2/10 D1/9 D0/8 HBEN = LOW DB11 DB10 DB9 DB8 DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0 HBEN = HIGH DB11 DB10 DB9 DB8 LOW LOW LOW LOW DB11 DB10 DB9 DB8 * D11...D0/8 are the ADC data output pins. DB11...DB0 are the 12-bit conversion results, DB11 is the MSB.
TYPICAL PERFORMANCE CHARACTERISTICS Integral Nonlinearity
