Datasheet LTC2153-14 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | 14-Bit 310Msps ADC |
| Pages / Page | 26 / 1 — FeaTures. DescripTion. applicaTions. Typical applicaTion. LTC2153-14 32K … |
| File Format / Size | PDF / 837 Kb |
| Document Language | English |
FeaTures. DescripTion. applicaTions. Typical applicaTion. LTC2153-14 32K Point 2-Tone FFT,. fIN = 71MHz and 69MHz, 310Msps
Model Line for this Datasheet
Text Version of Document

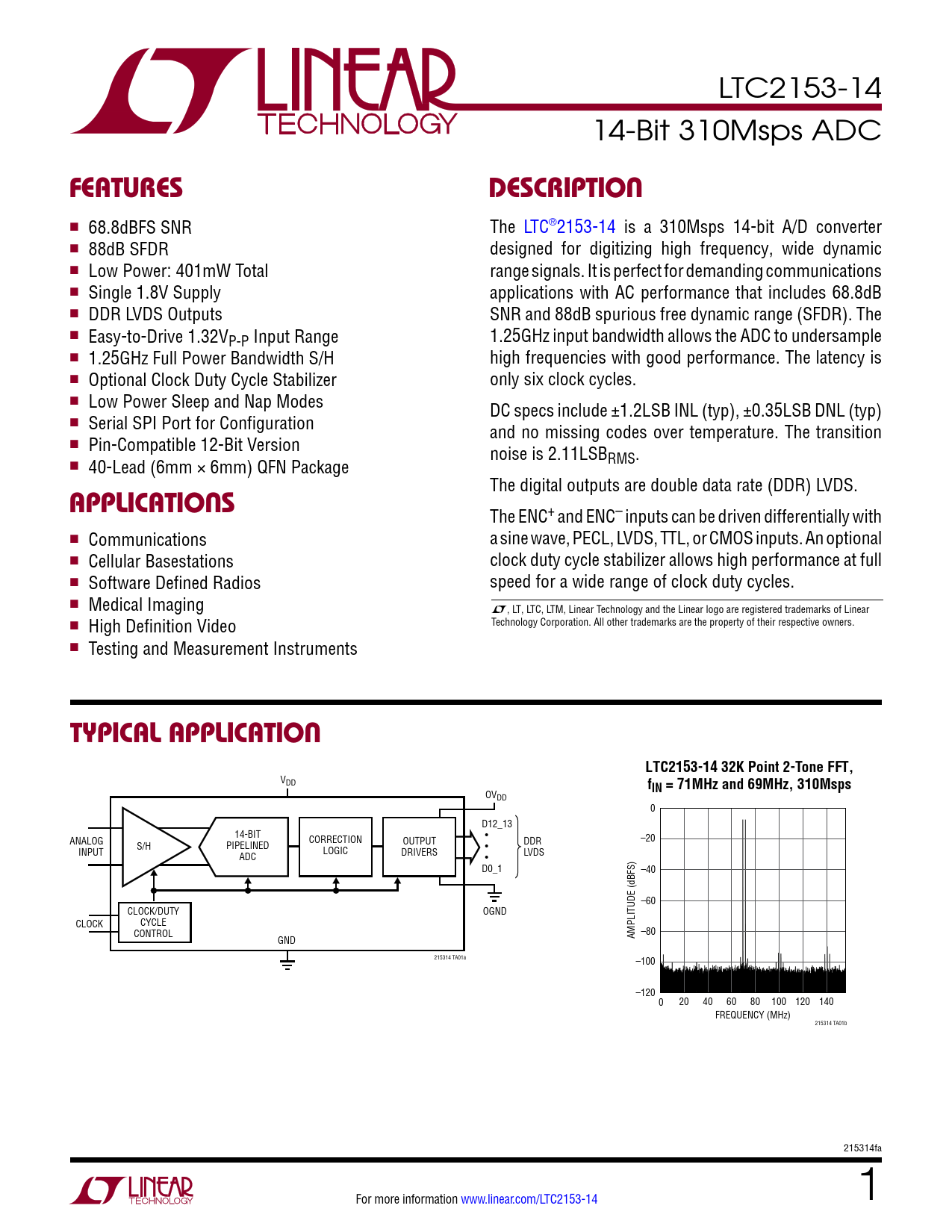

LTC2153-14 14-Bit 310Msps ADC
FeaTures DescripTion
n 68.8dBFS SNR The LTC®2153-14 is a 310Msps 14-bit A/D converter n 88dB SFDR designed for digitizing high frequency, wide dynamic n Low Power: 401mW Total range signals. It is perfect for demanding communications n Single 1.8V Supply applications with AC performance that includes 68.8dB n DDR LVDS Outputs SNR and 88dB spurious free dynamic range (SFDR). The n Easy-to-Drive 1.32VP-P Input Range 1.25GHz input bandwidth allows the ADC to undersample n 1.25GHz Full Power Bandwidth S/H high frequencies with good performance. The latency is n Optional Clock Duty Cycle Stabilizer only six clock cycles. n Low Power Sleep and Nap Modes DC specs include ±1.2LSB INL (typ), ±0.35LSB DNL (typ) n Serial SPI Port for Configuration and no missing codes over temperature. The transition n Pin-Compatible 12-Bit Version noise is 2.11LSBRMS. n 40-Lead (6mm × 6mm) QFN Package The digital outputs are double data rate (DDR) LVDS.
applicaTions
The ENC+ and ENC– inputs can be driven differentially with n Communications a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional n Cellular Basestations clock duty cycle stabilizer allows high performance at full n Software Defined Radios speed for a wide range of clock duty cycles. n Medical Imaging L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear n High Definition Video Technology Corporation. All other trademarks are the property of their respective owners. n Testing and Measurement Instruments
Typical applicaTion LTC2153-14 32K Point 2-Tone FFT,
VDD
fIN = 71MHz and 69MHz, 310Msps
OVDD 0 D12_13 14-BIT ANALOG CORRECTION • –20 S/H OUTPUT PIPELINED DDR INPUT LOGIC DRIVERS • ADC • LVDS D0_1 –40 –60 CLOCK/DUTY OGND CLOCK CYCLE CONTROL –80 GND AMPLITUDE (dBFS) 215314 TA01a –100 –120 0 20 40 60 80 100 120 140 FREQUENCY (MHz) 215314 TA01b 215314fa For more information www.linear.com/LTC2153-14 1 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Power Requirements Digital Inputs And Outputs Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagrams Applications Information Package Description Related Parts
