Datasheet LTC2192, LTC2191, LTC2190 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 16-Bit, 65Msps Low Power Dual ADCs |
| Pages / Page | 28 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER … |
| File Format / Size | PDF / 902 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
- LTC2190CUKG#PBF LTC2190CUKG#PBF LTC2190CUKG#TRPBF LTC2190CUKG#TRPBF LTC2190IUKG#PBF LTC2190IUKG#PBF LTC2190IUKG#TRPBF LTC2190IUKG#TRPBF
Text Version of Document
LTC2192 LTC2191/LTC2190

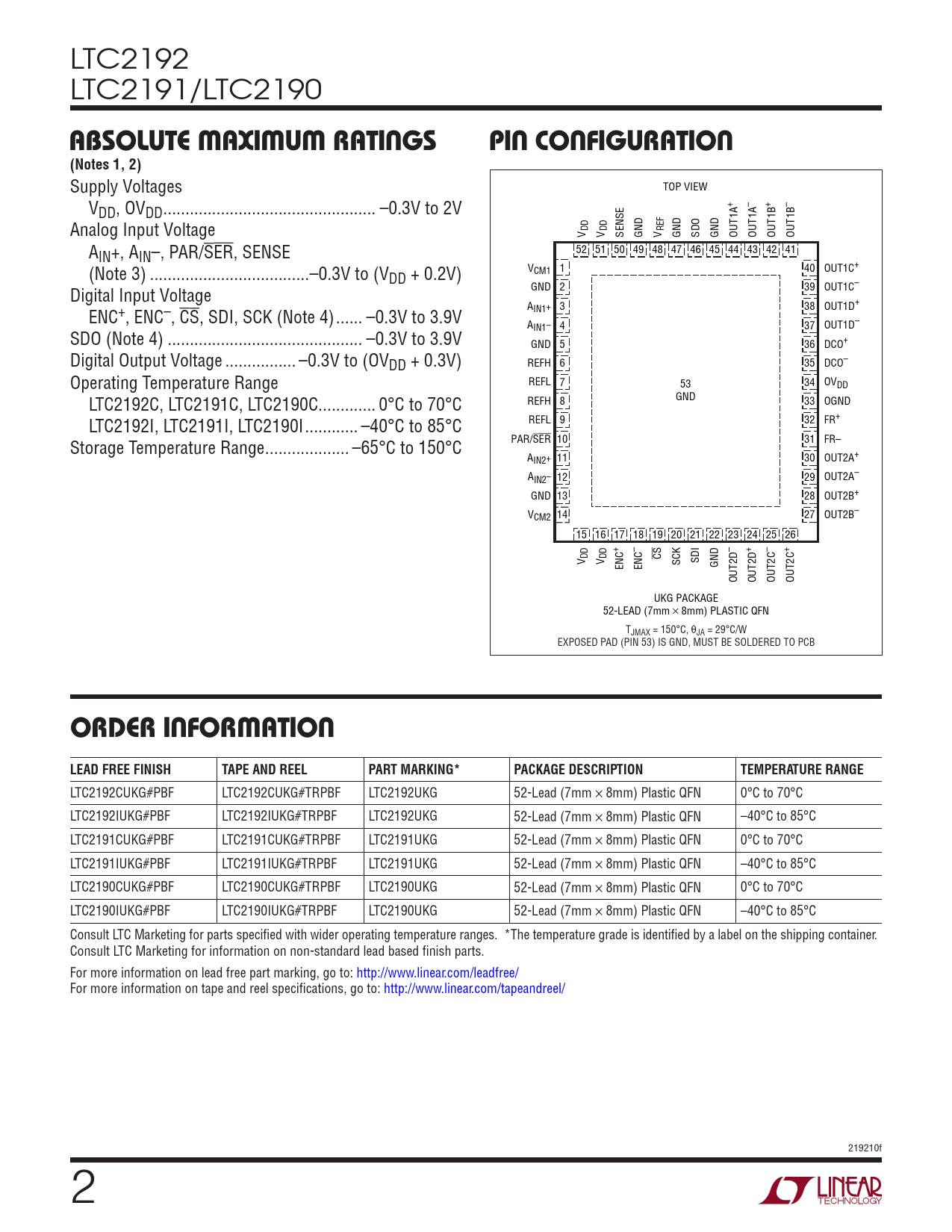

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
Supply Voltages TOP VIEW V + – + – DD, OVDD .. –0.3V to 2V Analog Input Voltage V DD V DD SENSE GND V REF GND SDO GND OUT1A OUT1A OUT1B OUT1B AIN+, AIN–, PAR/SER, SENSE 52 51 50 49 48 47 46 45 44 43 42 41 (Note 3) ..–0.3V to (V VCM1 1 40 OUT1C+ DD + 0.2V) Digital Input Voltage GND 2 39 OUT1C– ENC+, ENC–, CS, SDI, SCK (Note 4) .. –0.3V to 3.9V AIN1+ 3 38 OUT1D+ AIN1– 4 37 OUT1D– SDO (Note 4) .. –0.3V to 3.9V GND 5 36 DCO+ Digital Output Voltage .. –0.3V to (OVDD + 0.3V) REFH 6 35 DCO– Operating Temperature Range REFL 7 53 34 OVDD LTC2192C, LTC2191C, LTC2190C... 0°C to 70°C GND REFH 8 33 OGND LTC2192I, LTC2191I, LTC2190I .. –40°C to 85°C REFL 9 32 FR+ Storage Temperature Range ... –65°C to 150°C PAR/SER 10 31 FR– AIN2+ 11 30 OUT2A+ AIN2– 12 29 OUT2A– GND 13 28 OUT2B+ VCM2 14 27 OUT2B– 15 16 17 18 19 20 21 22 23 24 25 26 + – – + – + V DD V DD CS ENC ENC SCK SDI GND OUT2D OUT2D OUT2C OUT2C UKG PACKAGE 52-LEAD (7mm × 8mm) PLASTIC QFN TJMAX = 150°C, θJA = 29°C/W EXPOSED PAD (PIN 53) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2192CUKG#PBF LTC2192CUKG#TRPBF LTC2192UKG 52-Lead (7mm × 8mm) Plastic QFN 0°C to 70°C LTC2192IUKG#PBF LTC2192IUKG#TRPBF LTC2192UKG 52-Lead (7mm × 8mm) Plastic QFN –40°C to 85°C LTC2191CUKG#PBF LTC2191CUKG#TRPBF LTC2191UKG 52-Lead (7mm × 8mm) Plastic QFN 0°C to 70°C LTC2191IUKG#PBF LTC2191IUKG#TRPBF LTC2191UKG 52-Lead (7mm × 8mm) Plastic QFN –40°C to 85°C LTC2190CUKG#PBF LTC2190CUKG#TRPBF LTC2190UKG 52-Lead (7mm × 8mm) Plastic QFN 0°C to 70°C LTC2190IUKG#PBF LTC2190IUKG#TRPBF LTC2190UKG 52-Lead (7mm × 8mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 219210f 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
