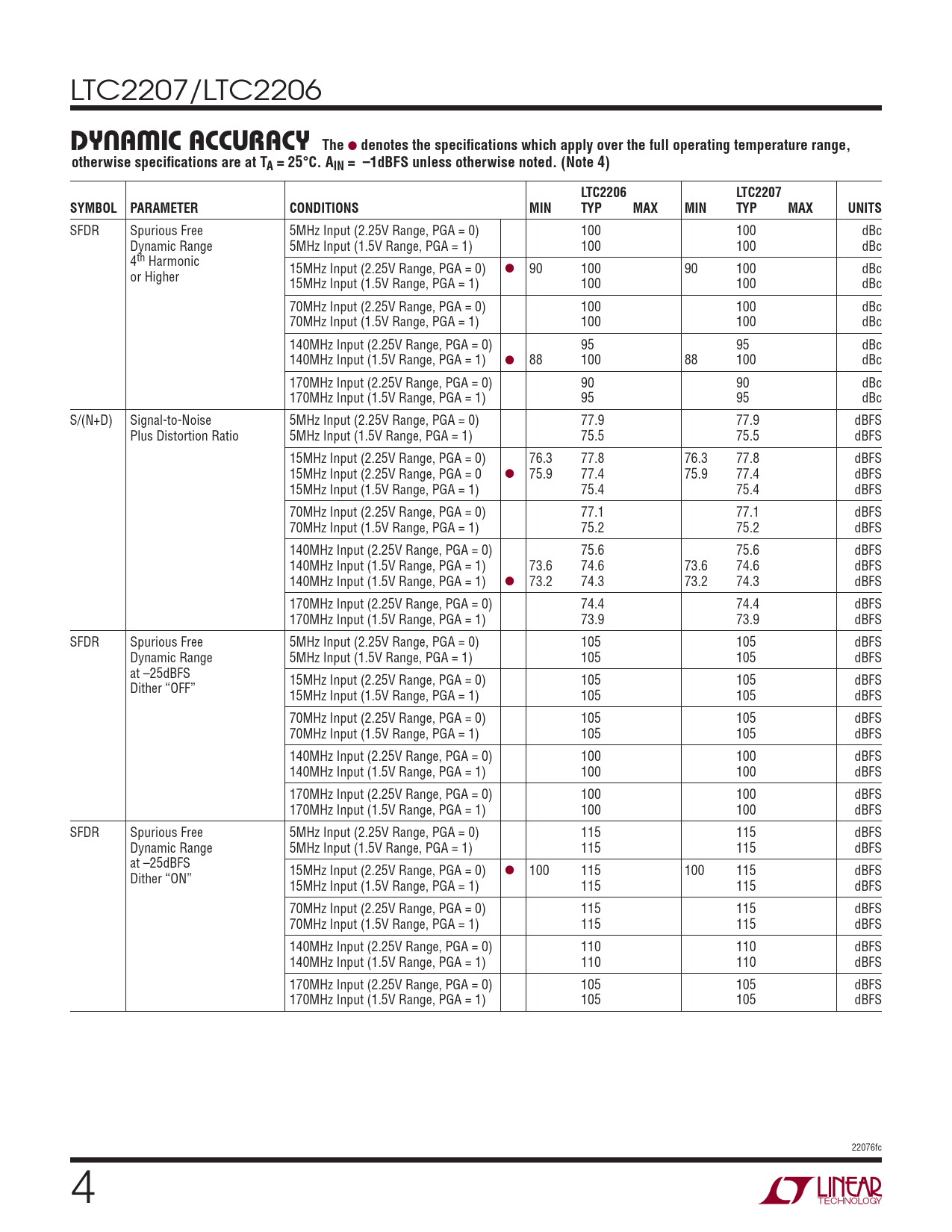

LTC2207/LTC2206
The DYNAMIC ACCURACY
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. AIN = –1dBFS unless otherwise noted. (Note 4) LTC2206 LTC2207 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
SFDR Spurious Free 5MHz Input (2.25V Range, PGA = 0) 100 100 dBc Dynamic Range 5MHz Input (1.5V Range, PGA = 1) 100 100 dBc 4th Harmonic 15MHz Input (2.25V Range, PGA = 0) ● 90 100 90 100 dBc or Higher 15MHz Input (1.5V Range, PGA = 1) 100 100 dBc 70MHz Input (2.25V Range, PGA = 0) 100 100 dBc 70MHz Input (1.5V Range, PGA = 1) 100 100 dBc 140MHz Input (2.25V Range, PGA = 0) 95 95 dBc 140MHz Input (1.5V Range, PGA = 1) ● 88 100 88 100 dBc 170MHz Input (2.25V Range, PGA = 0) 90 90 dBc 170MHz Input (1.5V Range, PGA = 1) 95 95 dBc S/(N+D) Signal-to-Noise 5MHz Input (2.25V Range, PGA = 0) 77.9 77.9 dBFS Plus Distortion Ratio 5MHz Input (1.5V Range, PGA = 1) 75.5 75.5 dBFS 15MHz Input (2.25V Range, PGA = 0) 76.3 77.8 76.3 77.8 dBFS 15MHz Input (2.25V Range, PGA = 0 ● 75.9 77.4 75.9 77.4 dBFS 15MHz Input (1.5V Range, PGA = 1) 75.4 75.4 dBFS 70MHz Input (2.25V Range, PGA = 0) 77.1 77.1 dBFS 70MHz Input (1.5V Range, PGA = 1) 75.2 75.2 dBFS 140MHz Input (2.25V Range, PGA = 0) 75.6 75.6 dBFS 140MHz Input (1.5V Range, PGA = 1) 73.6 74.6 73.6 74.6 dBFS 140MHz Input (1.5V Range, PGA = 1) ● 73.2 74.3 73.2 74.3 dBFS 170MHz Input (2.25V Range, PGA = 0) 74.4 74.4 dBFS 170MHz Input (1.5V Range, PGA = 1) 73.9 73.9 dBFS SFDR Spurious Free 5MHz Input (2.25V Range, PGA = 0) 105 105 dBFS Dynamic Range 5MHz Input (1.5V Range, PGA = 1) 105 105 dBFS at –25dBFS 15MHz Input (2.25V Range, PGA = 0) 105 105 dBFS Dither “OFF” 15MHz Input (1.5V Range, PGA = 1) 105 105 dBFS 70MHz Input (2.25V Range, PGA = 0) 105 105 dBFS 70MHz Input (1.5V Range, PGA = 1) 105 105 dBFS 140MHz Input (2.25V Range, PGA = 0) 100 100 dBFS 140MHz Input (1.5V Range, PGA = 1) 100 100 dBFS 170MHz Input (2.25V Range, PGA = 0) 100 100 dBFS 170MHz Input (1.5V Range, PGA = 1) 100 100 dBFS SFDR Spurious Free 5MHz Input (2.25V Range, PGA = 0) 115 115 dBFS Dynamic Range 5MHz Input (1.5V Range, PGA = 1) 115 115 dBFS at –25dBFS 15MHz Input (2.25V Range, PGA = 0) ● 100 115 100 115 dBFS Dither “ON” 15MHz Input (1.5V Range, PGA = 1) 115 115 dBFS 70MHz Input (2.25V Range, PGA = 0) 115 115 dBFS 70MHz Input (1.5V Range, PGA = 1) 115 115 dBFS 140MHz Input (2.25V Range, PGA = 0) 110 110 dBFS 140MHz Input (1.5V Range, PGA = 1) 110 110 dBFS 170MHz Input (2.25V Range, PGA = 0) 105 105 dBFS 170MHz Input (1.5V Range, PGA = 1) 105 105 dBFS 22076fc 4
