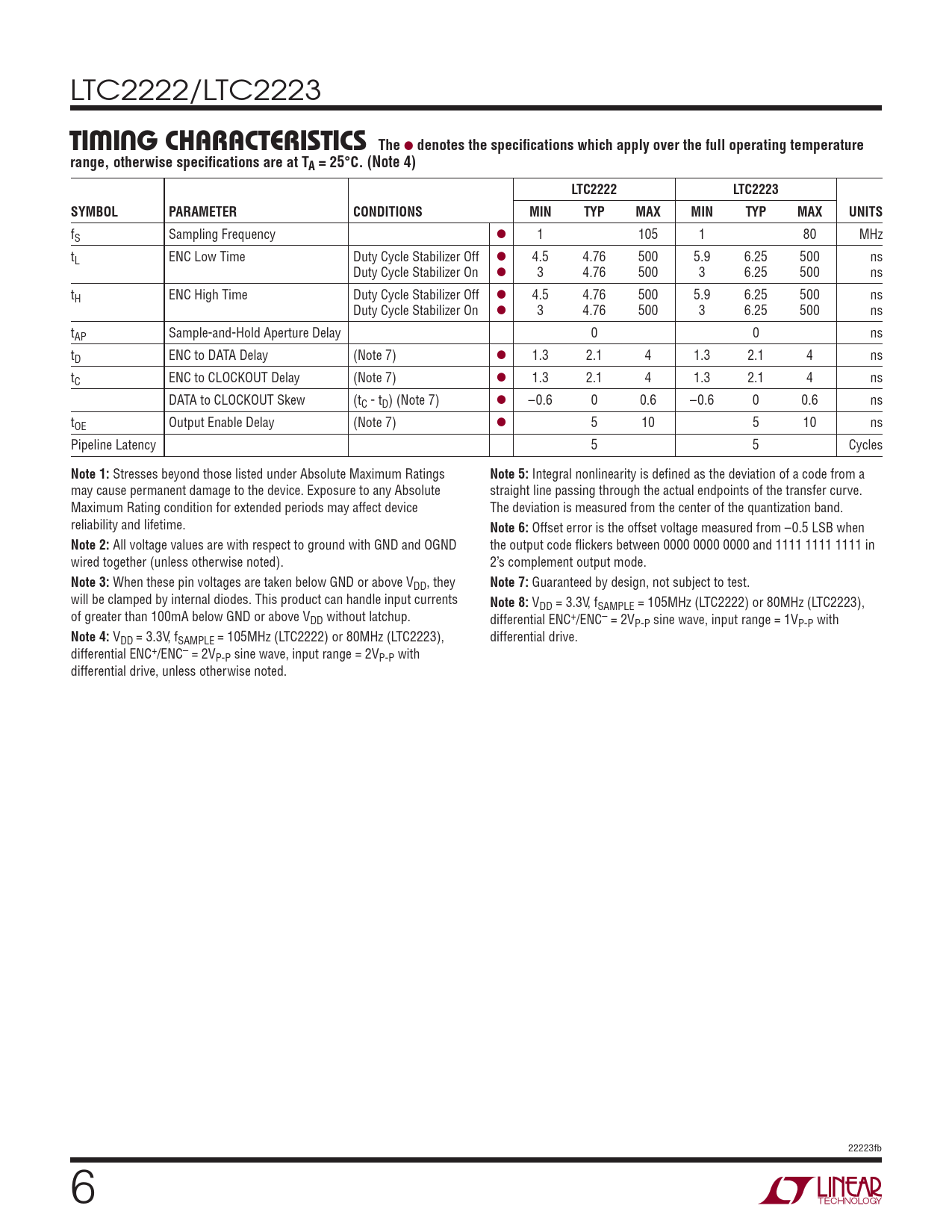

LTC2222/LTC2223
TIMING CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 4) LTC2222 LTC2223 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
fS Sampling Frequency l 1 105 1 80 MHz tL ENC Low Time Duty Cycle Stabilizer Off l 4.5 4.76 500 5.9 6.25 500 ns Duty Cycle Stabilizer On l 3 4.76 500 3 6.25 500 ns tH ENC High Time Duty Cycle Stabilizer Off l 4.5 4.76 500 5.9 6.25 500 ns Duty Cycle Stabilizer On l 3 4.76 500 3 6.25 500 ns tAP Sample-and-Hold Aperture Delay 0 0 ns tD ENC to DATA Delay (Note 7) l 1.3 2.1 4 1.3 2.1 4 ns tC ENC to CLOCKOUT Delay (Note 7) l 1.3 2.1 4 1.3 2.1 4 ns DATA to CLOCKOUT Skew (tC - tD) (Note 7) l –0.6 0 0.6 –0.6 0 0.6 ns tOE Output Enable Delay (Note 7) l 5 10 5 10 ns Pipeline Latency 5 5 Cycles
