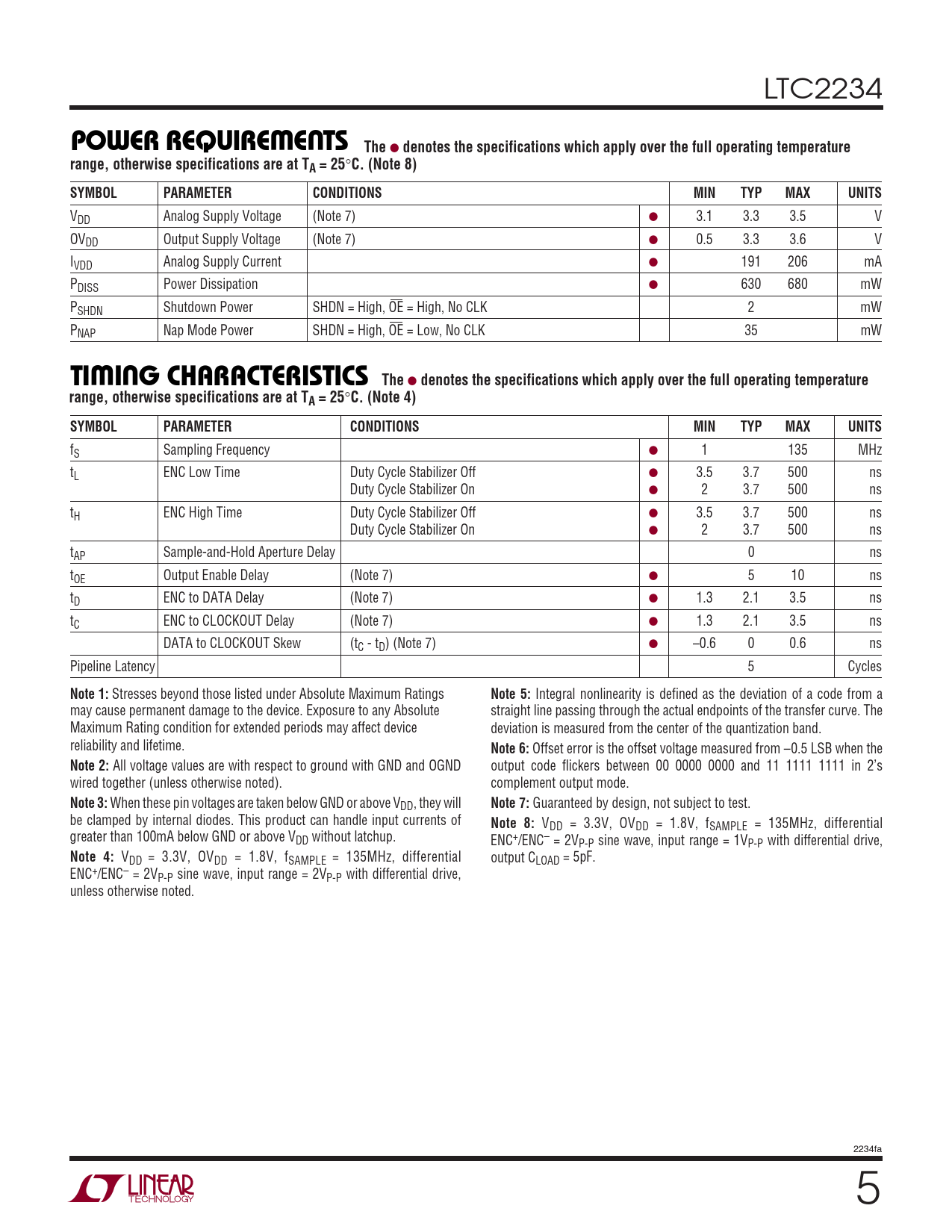

LTC2234
W U POWER REQUIRE E TS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 8) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VDD Analog Supply Voltage (Note 7) ● 3.1 3.3 3.5 V OVDD Output Supply Voltage (Note 7) ● 0.5 3.3 3.6 V IVDD Analog Supply Current ● 191 206 mA PDISS Power Dissipation ● 630 680 mW PSHDN Shutdown Power SHDN = High, OE = High, No CLK 2 mW PNAP Nap Mode Power SHDN = High, OE = Low, No CLK 35 mW
W U TI I G CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fS Sampling Frequency ● 1 135 MHz tL ENC Low Time Duty Cycle Stabilizer Off ● 3.5 3.7 500 ns Duty Cycle Stabilizer On ● 2 3.7 500 ns tH ENC High Time Duty Cycle Stabilizer Off ● 3.5 3.7 500 ns Duty Cycle Stabilizer On ● 2 3.7 500 ns tAP Sample-and-Hold Aperture Delay 0 ns tOE Output Enable Delay (Note 7) ● 5 10 ns tD ENC to DATA Delay (Note 7) ● 1.3 2.1 3.5 ns tC ENC to CLOCKOUT Delay (Note 7) ● 1.3 2.1 3.5 ns DATA to CLOCKOUT Skew (tC - tD) (Note 7) ● –0.6 0 0.6 ns Pipeline Latency 5 Cycles
