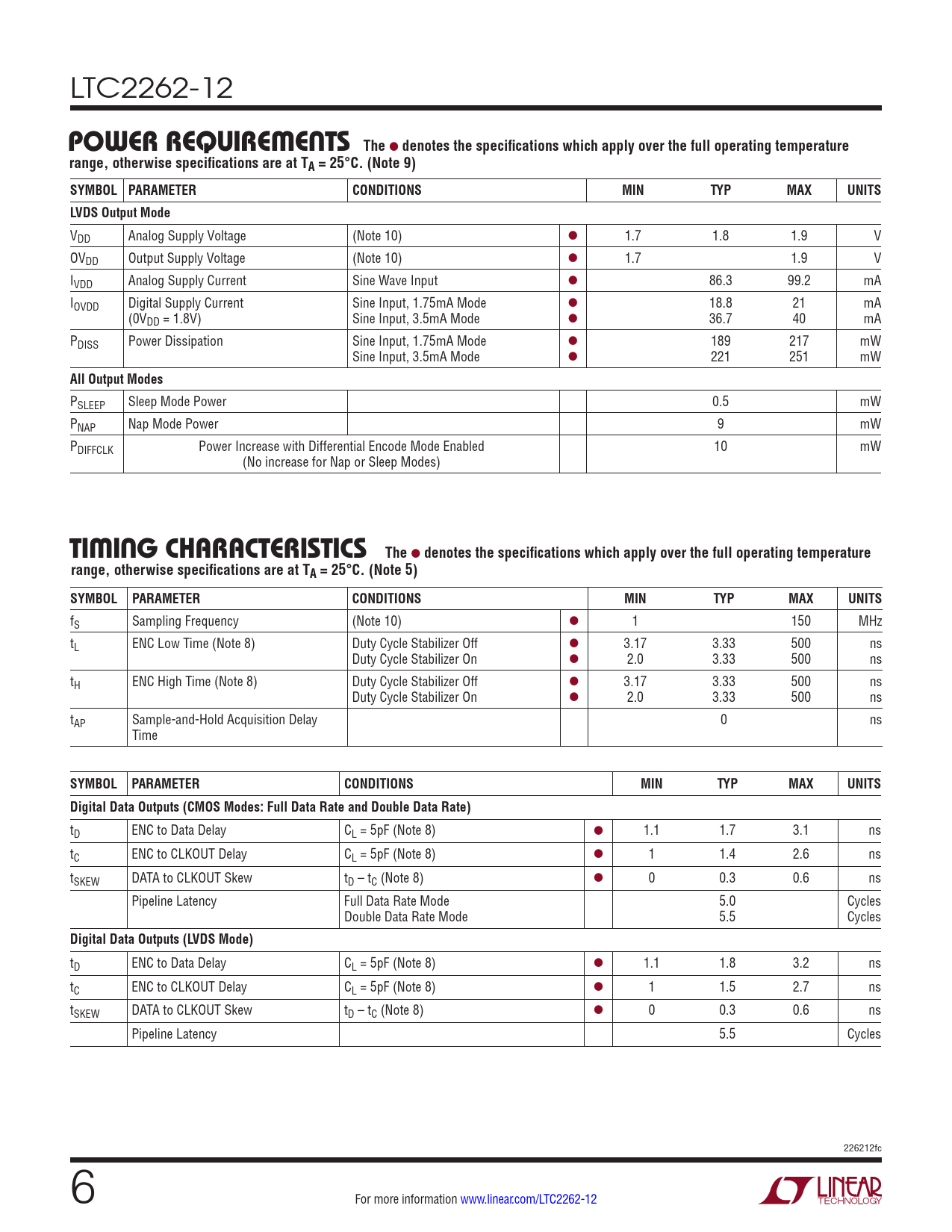

POWER REQUIREMENTS. The. denotes the specifications which apply over the full operating temperature
Model Line for this Datasheet
Text Version of Document
LTC2262-12
POWER REQUIREMENTS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 9) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS LVDS Output Mode
VDD Analog Supply Voltage (Note 10) l 1.7 1.8 1.9 V OVDD Output Supply Voltage (Note 10) l 1.7 1.9 V IVDD Analog Supply Current Sine Wave Input l 86.3 99.2 mA IOVDD Digital Supply Current Sine Input, 1.75mA Mode l 18.8 21 mA (0VDD = 1.8V) Sine Input, 3.5mA Mode l 36.7 40 mA PDISS Power Dissipation Sine Input, 1.75mA Mode l 189 217 mW Sine Input, 3.5mA Mode l 221 251 mW
All Output Modes
PSLEEP Sleep Mode Power 0.5 mW PNAP Nap Mode Power 9 mW PDIFFCLK Power Increase with Differential Encode Mode Enabled 10 mW (No increase for Nap or Sleep Modes)
TIMING CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fS Sampling Frequency (Note 10) l 1 150 MHz tL ENC Low Time (Note 8) Duty Cycle Stabilizer Off l 3.17 3.33 500 ns Duty Cycle Stabilizer On l 2.0 3.33 500 ns tH ENC High Time (Note 8) Duty Cycle Stabilizer Off l 3.17 3.33 500 ns Duty Cycle Stabilizer On l 2.0 3.33 500 ns tAP Sample-and-Hold Acquisition Delay 0 ns Time
SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Digital Data Outputs (CMOS Modes: Full Data Rate and Double Data Rate)
tD ENC to Data Delay CL = 5pF (Note 8) l 1.1 1.7 3.1 ns tC ENC to CLKOUT Delay CL = 5pF (Note 8) l 1 1.4 2.6 ns tSKEW DATA to CLKOUT Skew tD – tC (Note 8) l 0 0.3 0.6 ns Pipeline Latency Full Data Rate Mode 5.0 Cycles Double Data Rate Mode 5.5 Cycles
Digital Data Outputs (LVDS Mode)
tD ENC to Data Delay CL = 5pF (Note 8) l 1.1 1.8 3.2 ns tC ENC to CLKOUT Delay CL = 5pF (Note 8) l 1 1.5 2.7 ns tSKEW DATA to CLKOUT Skew tD – tC (Note 8) l 0 0.3 0.6 ns Pipeline Latency 5.5 Cycles 226212fc 6 For more information www.linear.com/LTC2262-12 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Typical Performance Characteristics Pin Functions Block Diagram Applications Information Related Parts
