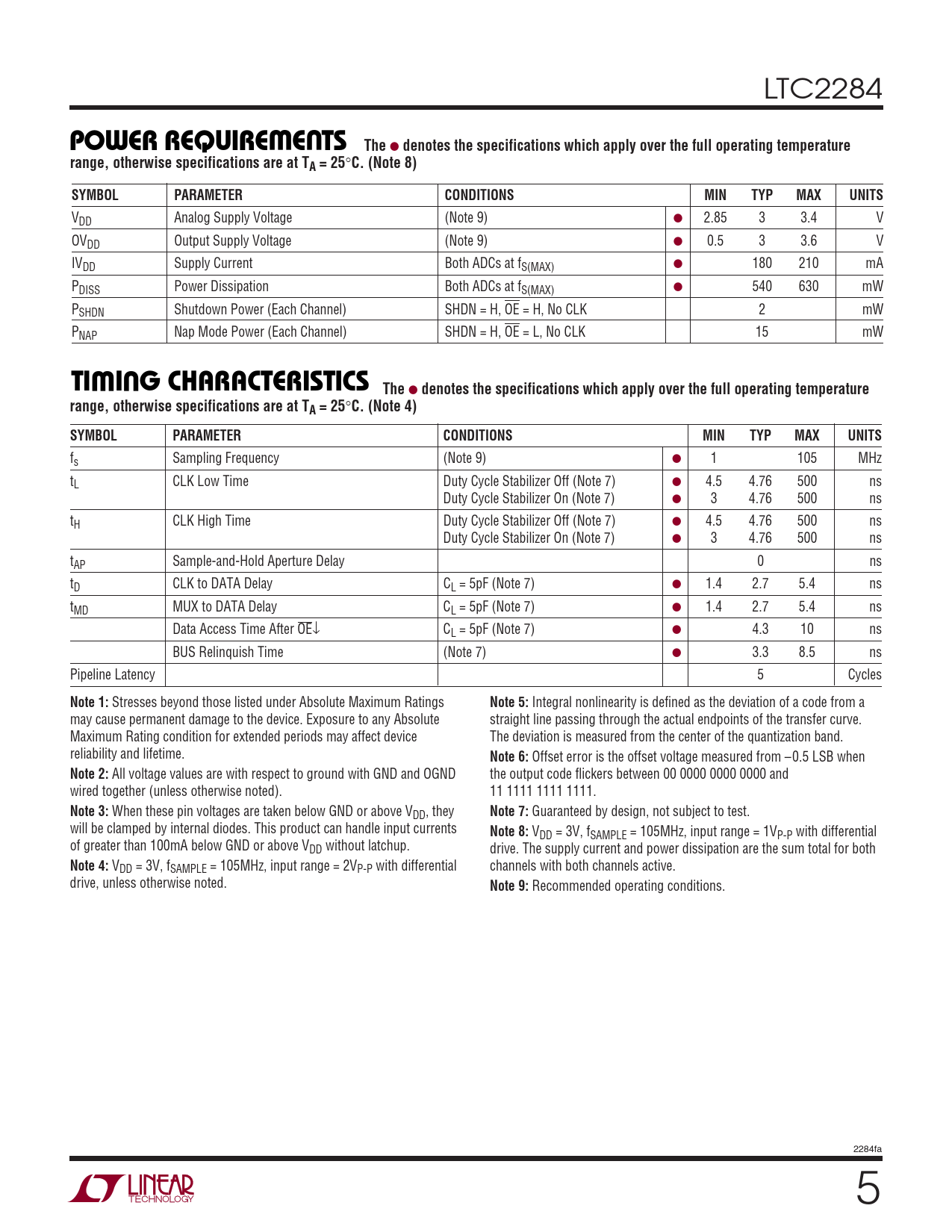

LTC2284
W U POWER REQUIRE E TS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 8) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VDD Analog Supply Voltage (Note 9) ● 2.85 3 3.4 V OVDD Output Supply Voltage (Note 9) ● 0.5 3 3.6 V IVDD Supply Current Both ADCs at fS(MAX) ● 180 210 mA PDISS Power Dissipation Both ADCs at fS(MAX) ● 540 630 mW PSHDN Shutdown Power (Each Channel) SHDN = H, OE = H, No CLK 2 mW PNAP Nap Mode Power (Each Channel) SHDN = H, OE = L, No CLK 15 mW
W U TI I G CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fs Sampling Frequency (Note 9) ● 1 105 MHz tL CLK Low Time Duty Cycle Stabilizer Off (Note 7) ● 4.5 4.76 500 ns Duty Cycle Stabilizer On (Note 7) ● 3 4.76 500 ns tH CLK High Time Duty Cycle Stabilizer Off (Note 7) ● 4.5 4.76 500 ns Duty Cycle Stabilizer On (Note 7) ● 3 4.76 500 ns tAP Sample-and-Hold Aperture Delay 0 ns tD CLK to DATA Delay CL = 5pF (Note 7) ● 1.4 2.7 5.4 ns tMD MUX to DATA Delay CL = 5pF (Note 7) ● 1.4 2.7 5.4 ns Data Access Time After OE↓ CL = 5pF (Note 7) ● 4.3 10 ns BUS Relinquish Time (Note 7) ● 3.3 8.5 ns Pipeline Latency 5 Cycles
