Datasheet LTC2285 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | Dual 14-Bit, 125Msps Low Power 3V ADC |
| Pages / Page | 24 / 10 — TIMING DIAGRAMS. Dual Digital Output Bus Timing. (Only One Channel is … |
| File Format / Size | PDF / 594 Kb |
| Document Language | English |
TIMING DIAGRAMS. Dual Digital Output Bus Timing. (Only One Channel is Shown). Multiplexed Digital Output Bus Timing
Model Line for this Datasheet
Text Version of Document
LTC2285

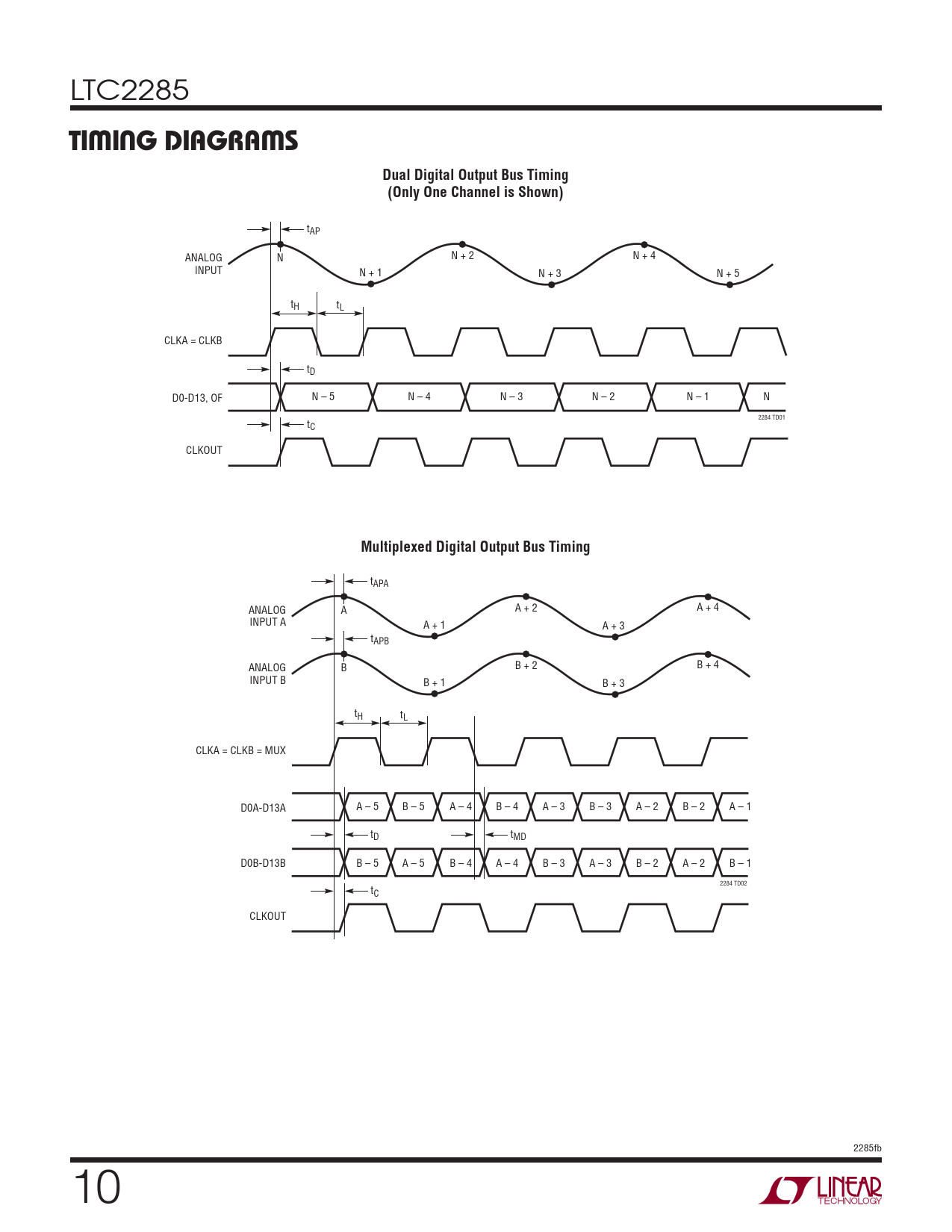

TIMING DIAGRAMS Dual Digital Output Bus Timing (Only One Channel is Shown)
tAP N + 2 N + 4 ANALOG N INPUT N + 1 N + 3 N + 5 tH tL CLKA = CLKB tD D0-D13, OF N – 5 N – 4 N – 3 N – 2 N – 1 N 2284 TD01 tC CLKOUT
Multiplexed Digital Output Bus Timing
tAPA A + 2 A + 4 ANALOG A INPUT A A + 1 A + 3 tAPB B + 2 B + 4 ANALOG B INPUT B B + 1 B + 3 tH tL CLKA = CLKB = MUX D0A-D13A A – 5 B – 5 A – 4 B – 4 A – 3 B – 3 A – 2 B – 2 A – 1 tD tMD D0B-D13B B – 5 A – 5 B – 4 A – 4 B – 3 A – 3 B – 2 A – 2 B – 1 2284 TD02 tC CLKOUT 2285fb 10
