Datasheet LTC2299 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Dual 14-Bit, 80Msps Low Power 3V ADC |
| Pages / Page | 24 / 5 — POWER REQUIRE E TS The. denotes the specifications which apply over the … |
| File Format / Size | PDF / 730 Kb |
| Document Language | English |
POWER REQUIRE E TS The. denotes the specifications which apply over the full operating temperature
Model Line for this Datasheet
Text Version of Document

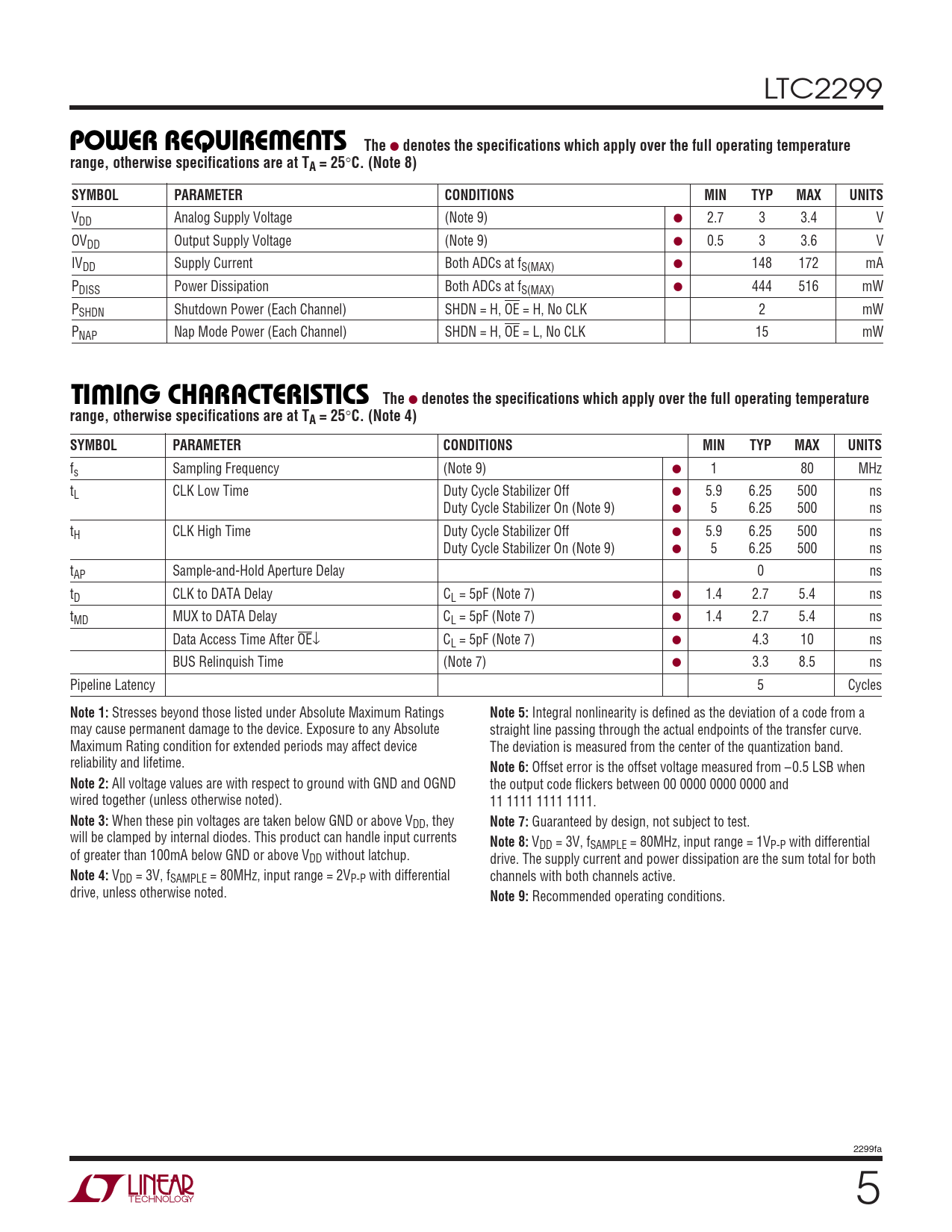

LTC2299
W U POWER REQUIRE E TS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 8) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VDD Analog Supply Voltage (Note 9) ● 2.7 3 3.4 V OVDD Output Supply Voltage (Note 9) ● 0.5 3 3.6 V IVDD Supply Current Both ADCs at fS(MAX) ● 148 172 mA PDISS Power Dissipation Both ADCs at fS(MAX) ● 444 516 mW PSHDN Shutdown Power (Each Channel) SHDN = H, OE = H, No CLK 2 mW PNAP Nap Mode Power (Each Channel) SHDN = H, OE = L, No CLK 15 mW
W U TI I G CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fs Sampling Frequency (Note 9) ● 1 80 MHz tL CLK Low Time Duty Cycle Stabilizer Off ● 5.9 6.25 500 ns Duty Cycle Stabilizer On (Note 9) ● 5 6.25 500 ns tH CLK High Time Duty Cycle Stabilizer Off ● 5.9 6.25 500 ns Duty Cycle Stabilizer On (Note 9) ● 5 6.25 500 ns tAP Sample-and-Hold Aperture Delay 0 ns tD CLK to DATA Delay CL = 5pF (Note 7) ● 1.4 2.7 5.4 ns tMD MUX to DATA Delay CL = 5pF (Note 7) ● 1.4 2.7 5.4 ns Data Access Time After OE↓ CL = 5pF (Note 7) ● 4.3 10 ns BUS Relinquish Time (Note 7) ● 3.3 8.5 ns Pipeline Latency 5 Cycles
