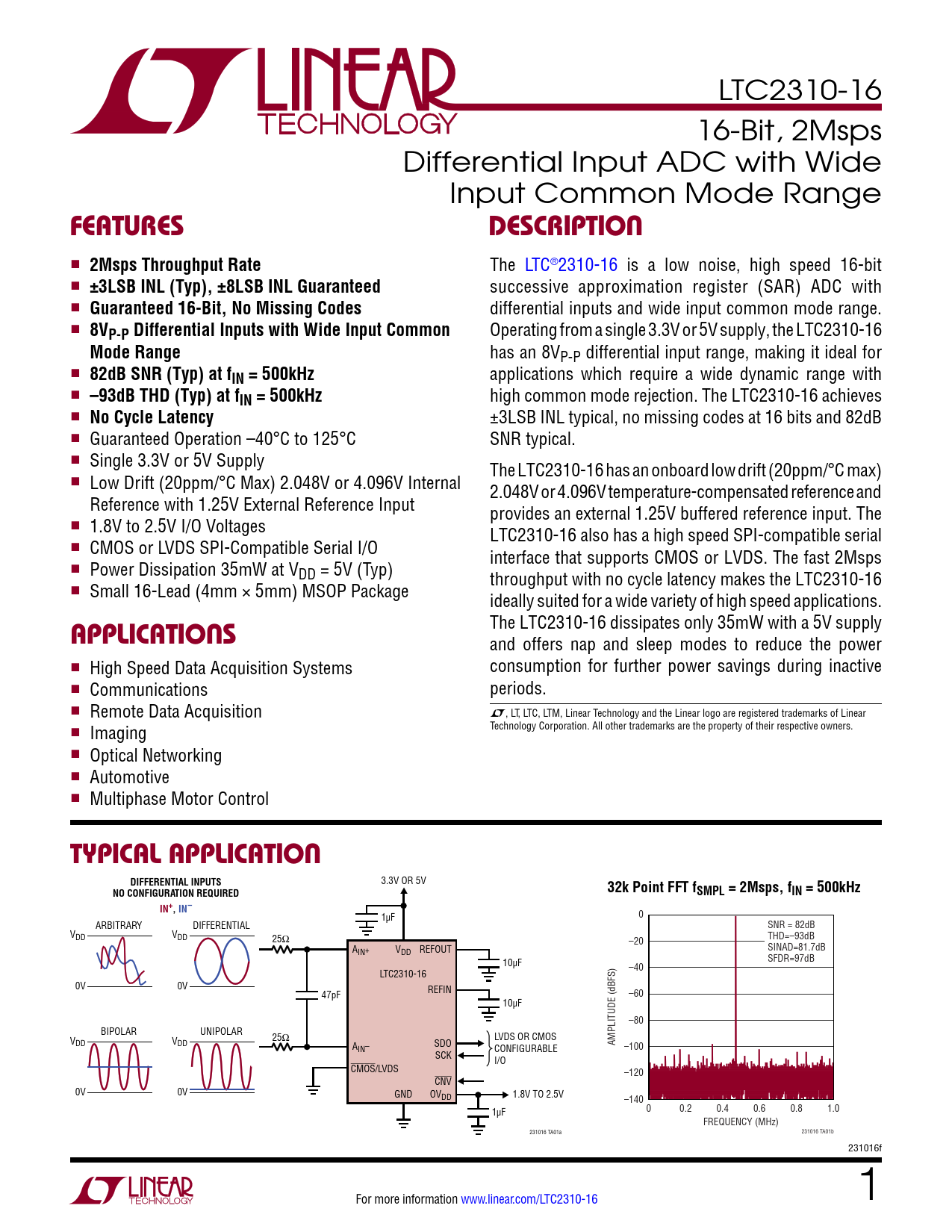

LTC2310-16 16-Bit, 2Msps Differential Input ADC with Wide Input Common Mode Range
FeaTures DescripTion
n
2Msps Throughput Rate
The LTC®2310-16 is a low noise, high speed 16-bit n
±3LSB INL (Typ), ±8LSB INL Guaranteed
successive approximation register (SAR) ADC with n
Guaranteed 16-Bit, No Missing Codes
differential inputs and wide input common mode range. n
8VP-P Differential Inputs with Wide Input Common
Operating from a single 3.3V or 5V supply, the LTC2310-16
Mode Range
has an 8VP-P differential input range, making it ideal for n
82dB SNR (Typ) at fIN = 500kHz
applications which require a wide dynamic range with n
–93dB THD (Typ) at fIN = 500kHz
high common mode rejection. The LTC2310-16 achieves n
No Cycle Latency
±3LSB INL typical, no missing codes at 16 bits and 82dB n Guaranteed Operation –40°C to 125°C SNR typical. n Single 3.3V or 5V Supply The LTC2310-16 has an onboard low drift (20ppm/°C max) n Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal 2.048V or 4.096V temperature-compensated reference and Reference with 1.25V External Reference Input provides an external 1.25V buffered reference input. The n 1.8V to 2.5V I/O Voltages LTC2310-16 also has a high speed SPI-compatible serial n CMOS or LVDS SPI-Compatible Serial I/O interface that supports CMOS or LVDS. The fast 2Msps n Power Dissipation 35mW at VDD = 5V (Typ) throughput with no cycle latency makes the LTC2310-16 n Small 16-Lead (4mm × 5mm) MSOP Package ideally suited for a wide variety of high speed applications. The LTC2310-16 dissipates only 35mW with a 5V supply
applicaTions
and offers nap and sleep modes to reduce the power n High Speed Data Acquisition Systems consumption for further power savings during inactive n Communications periods. n Remote Data Acquisition L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. n Imaging n Optical Networking n Automotive n Multiphase Motor Control
Typical applicaTion DIFFERENTIAL INPUTS
3.3V OR 5V
32k Point FFT f NO CONFIGURATION REQUIRED SMPL = 2Msps, fIN = 500kHz IN+, IN–
1µF 0 ARBITRARY DIFFERENTIAL SNR = 82dB VDD VDD 25Ω THD=–93dB –20 AIN+ VDD REFOUT SINAD=81.7dB 10µF SFDR=97dB –40 LTC2310-16 0V 0V 47pF REFIN –60 10µF –80 BIPOLAR UNIPOLAR 25Ω V LVDS OR CMOS DD VDD SDO A AMPLITUDE (dBFS) IN– CONFIGURABLE –100 SCK I/O CMOS/LVDS –120 CNV 0V 0V GND OVDD 1.8V TO 2.5V –140 1µF 0 0.2 0.4 0.6 0.8 1.0 FREQUENCY (MHz) 231016 TA01a 231016 TA01b 231016f For more information www.linear.com/LTC2310-16 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Functional Block Diagram Timing Diagram Applications Information Package Description Related Parts
