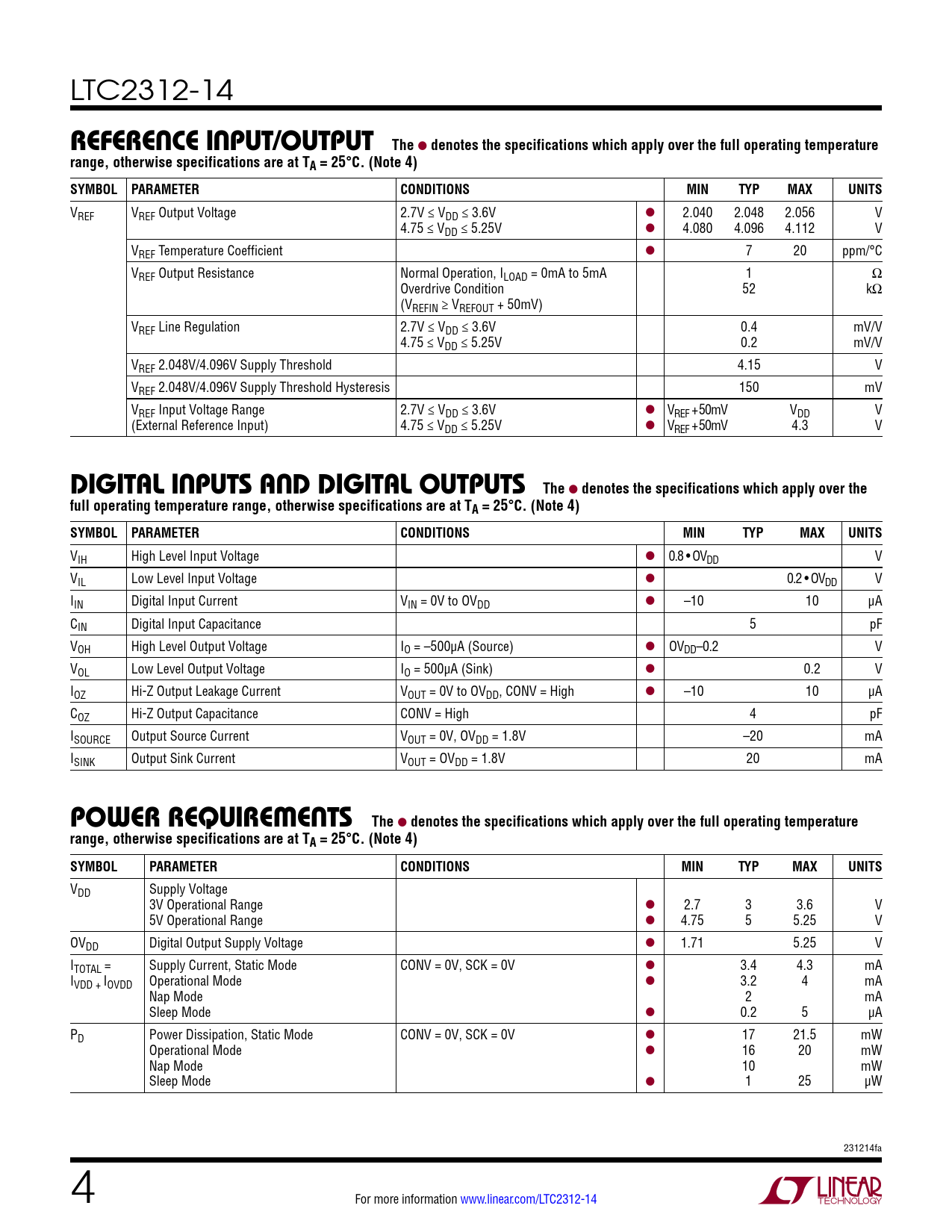

REFERENCE. INPUT/OUTPUT The. denotes the specifications which apply over the full operating temperature
