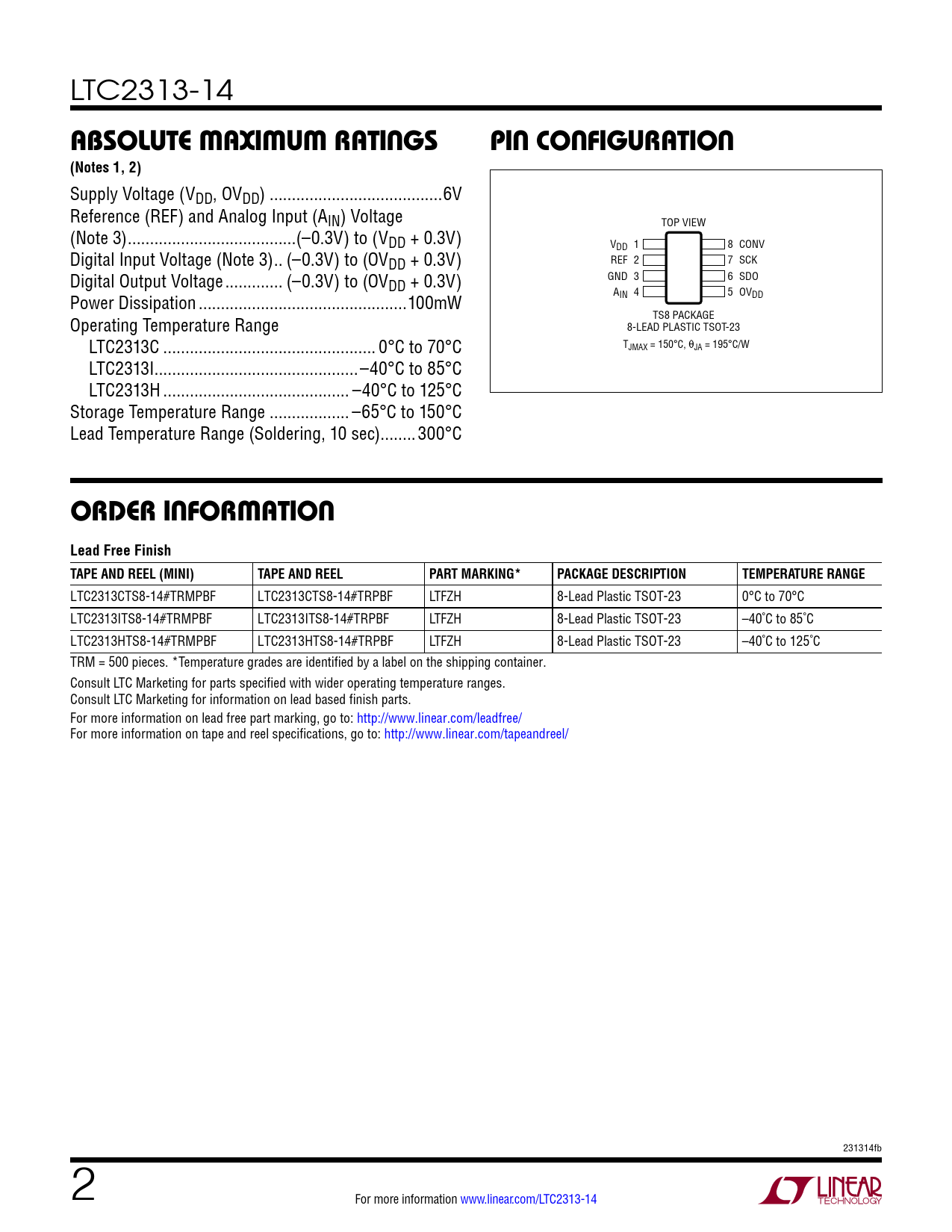

LTC2313-14
absoluTe MaxiMuM raTings pin conFiguraTion (Notes 1, 2)
Supply Voltage (VDD, OVDD) ...6V Reference (REF) and Analog Input (AIN) Voltage TOP VIEW (Note 3) ..(–0.3V) to (VDD + 0.3V) VDD 1 8 CONV Digital Input Voltage (Note 3) .. (–0.3V) to (OVDD + 0.3V) REF 2 7 SCK Digital Output Voltage ... (–0.3V) to (OV GND 3 6 SDO DD + 0.3V) Power Dissipation ...100mW AIN 4 5 OVDD Operating Temperature Range TS8 PACKAGE 8-LEAD PLASTIC TSOT-23 LTC2313C .. 0°C to 70°C TJMAX = 150°C, θJA = 195°C/W LTC2313I..–40°C to 85°C LTC2313H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C Lead Temperature Range (Soldering, 10 sec) ..300°C
orDer inForMaTion Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2313CTS8-14#TRMPBF LTC2313CTS8-14#TRPBF LTFZH 8-Lead Plastic TSOT-23 0°C to 70°C LTC2313ITS8-14#TRMPBF LTC2313ITS8-14#TRPBF LTFZH 8-Lead Plastic TSOT-23 –40˚C to 85˚C LTC2313HTS8-14#TRMPBF LTC2313HTS8-14#TRPBF LTFZH 8-Lead Plastic TSOT-23 –40˚C to 125˚C TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 231314fb 2 For more information www.linear.com/LTC2313-14 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Dynamic Accuracy Reference Input/Output Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Block Diagram Timing Diagrams Applications Information Package Description Related Parts
