Datasheet LTC2315-12 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 12-Bit, 5Msps Serial Sampling ADC in TSOT |
| Pages / Page | 22 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER … |
| File Format / Size | PDF / 706 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Notes 1, 2). ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI)
Model Line for this Datasheet
- LTC2315CTS8-12#PBF LTC2315CTS8-12#TRMPBF LTC2315CTS8-12#TRMPBF LTC2315CTS8-12#TRPBF LTC2315CTS8-12#TRPBF LTC2315HTS8-12#PBF LTC2315HTS8-12#TRMPBF LTC2315HTS8-12#TRMPBF LTC2315HTS8-12#TRPBF LTC2315HTS8-12#TRPBF LTC2315ITS8-12#PBF LTC2315ITS8-12#TRMPBF LTC2315ITS8-12#TRMPBF LTC2315ITS8-12#TRPBF LTC2315ITS8-12#TRPBF
Text Version of Document
LTC2315-12

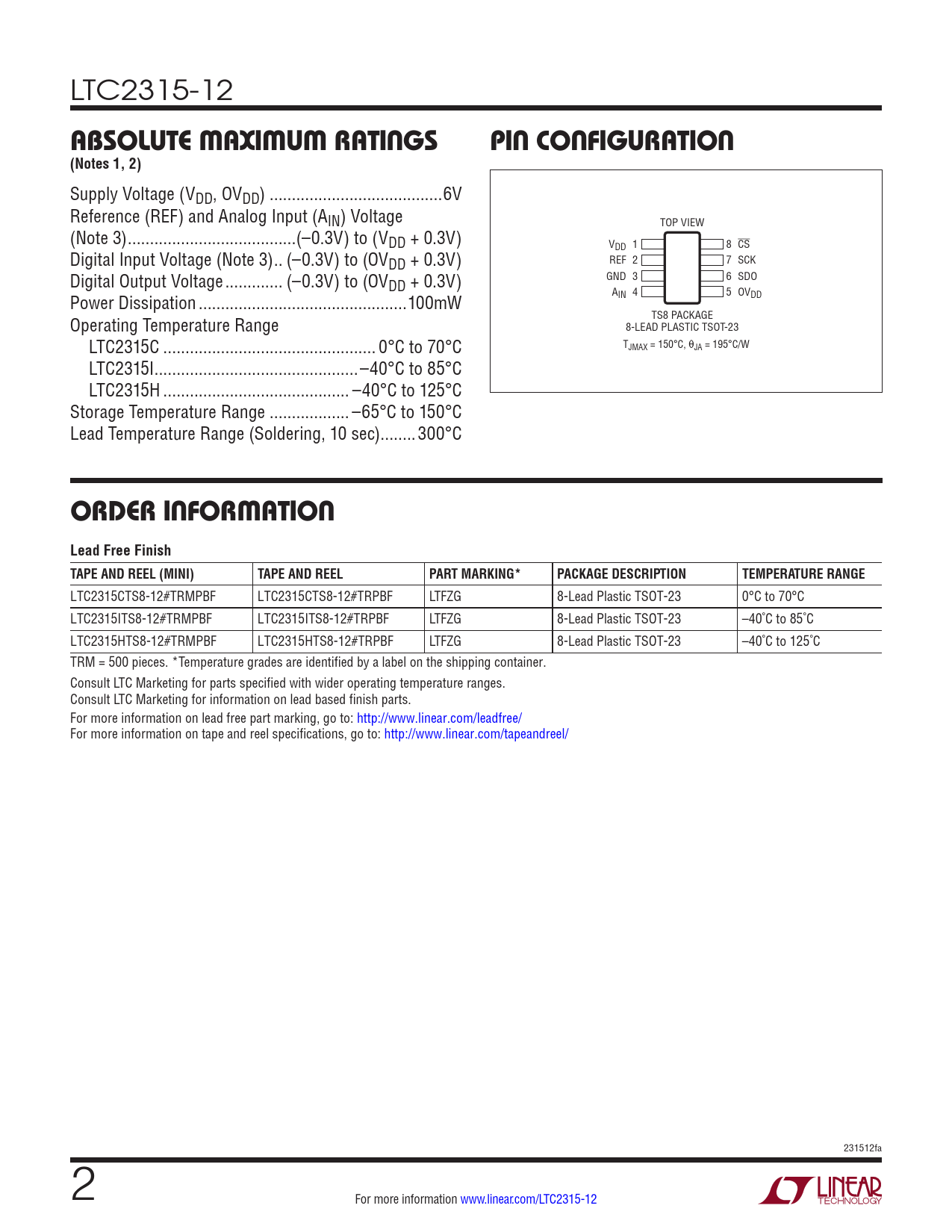

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
Supply Voltage (VDD, OVDD) ...6V Reference (REF) and Analog Input (AIN) Voltage TOP VIEW (Note 3) ..(–0.3V) to (VDD + 0.3V) VDD 1 8 CS Digital Input Voltage (Note 3) .. (–0.3V) to (OVDD + 0.3V) REF 2 7 SCK Digital Output Voltage ... (–0.3V) to (OV GND 3 6 SDO DD + 0.3V) Power Dissipation ...100mW AIN 4 5 OVDD Operating Temperature Range TS8 PACKAGE 8-LEAD PLASTIC TSOT-23 LTC2315C .. 0°C to 70°C TJMAX = 150°C, θJA = 195°C/W LTC2315I ..–40°C to 85°C LTC2315H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C Lead Temperature Range (Soldering, 10 sec) ..300°C
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2315CTS8-12#TRMPBF LTC2315CTS8-12#TRPBF LTFZG 8-Lead Plastic TSOT-23 0°C to 70°C LTC2315ITS8-12#TRMPBF LTC2315ITS8-12#TRPBF LTFZG 8-Lead Plastic TSOT-23 –40˚C to 85˚C LTC2315HTS8-12#TRMPBF LTC2315HTS8-12#TRPBF LTFZG 8-Lead Plastic TSOT-23 –40˚C to 125˚C TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 231512fa 2 For more information www.linear.com/LTC2315-12
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
Supply Voltage (VDD, OVDD) ...6V Reference (REF) and Analog Input (AIN) Voltage TOP VIEW (Note 3) ..(–0.3V) to (VDD + 0.3V) VDD 1 8 CS Digital Input Voltage (Note 3) .. (–0.3V) to (OVDD + 0.3V) REF 2 7 SCK Digital Output Voltage ... (–0.3V) to (OV GND 3 6 SDO DD + 0.3V) Power Dissipation ...100mW AIN 4 5 OVDD Operating Temperature Range TS8 PACKAGE 8-LEAD PLASTIC TSOT-23 LTC2315C .. 0°C to 70°C TJMAX = 150°C, θJA = 195°C/W LTC2315I ..–40°C to 85°C LTC2315H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C Lead Temperature Range (Soldering, 10 sec) ..300°C
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2315CTS8-12#TRMPBF LTC2315CTS8-12#TRPBF LTFZG 8-Lead Plastic TSOT-23 0°C to 70°C LTC2315ITS8-12#TRMPBF LTC2315ITS8-12#TRPBF LTFZG 8-Lead Plastic TSOT-23 –40˚C to 85˚C LTC2315HTS8-12#TRMPBF LTC2315HTS8-12#TRPBF LTFZG 8-Lead Plastic TSOT-23 –40˚C to 125˚C TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 231512fa 2 For more information www.linear.com/LTC2315-12
