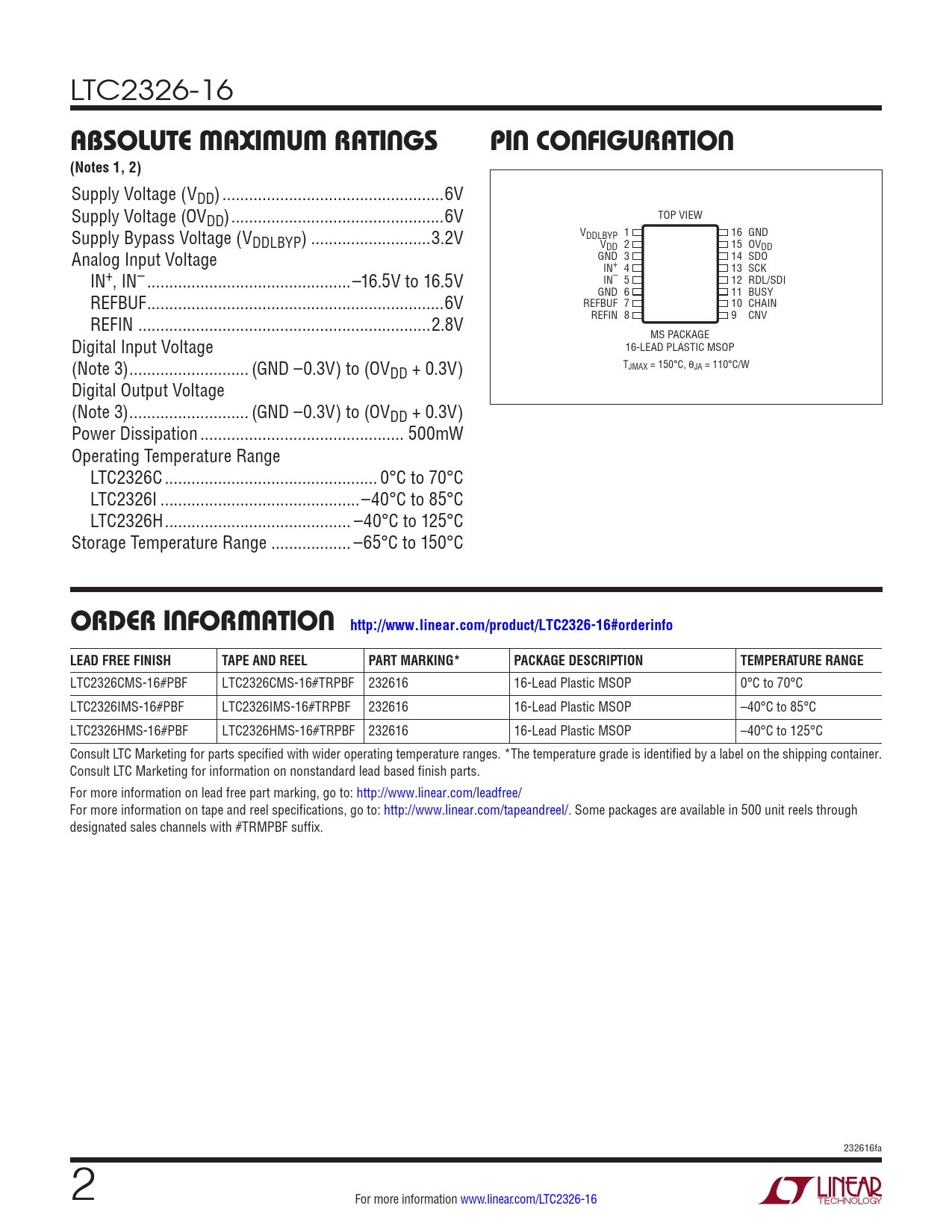

LTC2326-16
absoluTe MaxiMuM raTings pin conFiguraTion (Notes 1, 2)
Supply Voltage (VDD) ..6V Supply Voltage (OVDD) ..6V TOP VIEW Supply Bypass Voltage (V VDDLBYP 1 16 GND DDLBYP) ...3.2V VDD 2 15 OVDD Analog Input Voltage GND 3 14 SDO IN+ 4 13 SCK IN+, IN– ..–16.5V to 16.5V IN– 5 12 RDL/SDI REFBUF ...6V GND 6 11 BUSY REFBUF 7 10 CHAIN REFIN ..2.8V REFIN 8 9 CNV MS PACKAGE Digital Input Voltage 16-LEAD PLASTIC MSOP (Note 3) ... (GND –0.3V) to (OVDD + 0.3V) TJMAX = 150°C, θJA = 110°C/W Digital Output Voltage (Note 3) ... (GND –0.3V) to (OVDD + 0.3V) Power Dissipation .. 500mW Operating Temperature Range LTC2326C .. 0°C to 70°C LTC2326I ...–40°C to 85°C LTC2326H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C
orDer inForMaTion http://www.linear.com/product/LTC2326-16#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2326CMS-16#PBF LTC2326CMS-16#TRPBF 232616 16-Lead Plastic MSOP 0°C to 70°C LTC2326IMS-16#PBF LTC2326IMS-16#TRPBF 232616 16-Lead Plastic MSOP –40°C to 85°C LTC2326HMS-16#PBF LTC2326HMS-16#TRPBF 232616 16-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 232616fa 2 For more information www.linear.com/LTC2326-16 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Reference Buffer Characteristics Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Board Layout Package Description Revision History Typical Application Related Parts
