Typical perForMance characTerisTics. TA = 25°C, VDD = 5V, OVDD = 2.5V, REFIN = 2.048V,
Model Line for this Datasheet
Text Version of Document
LTC2326-18

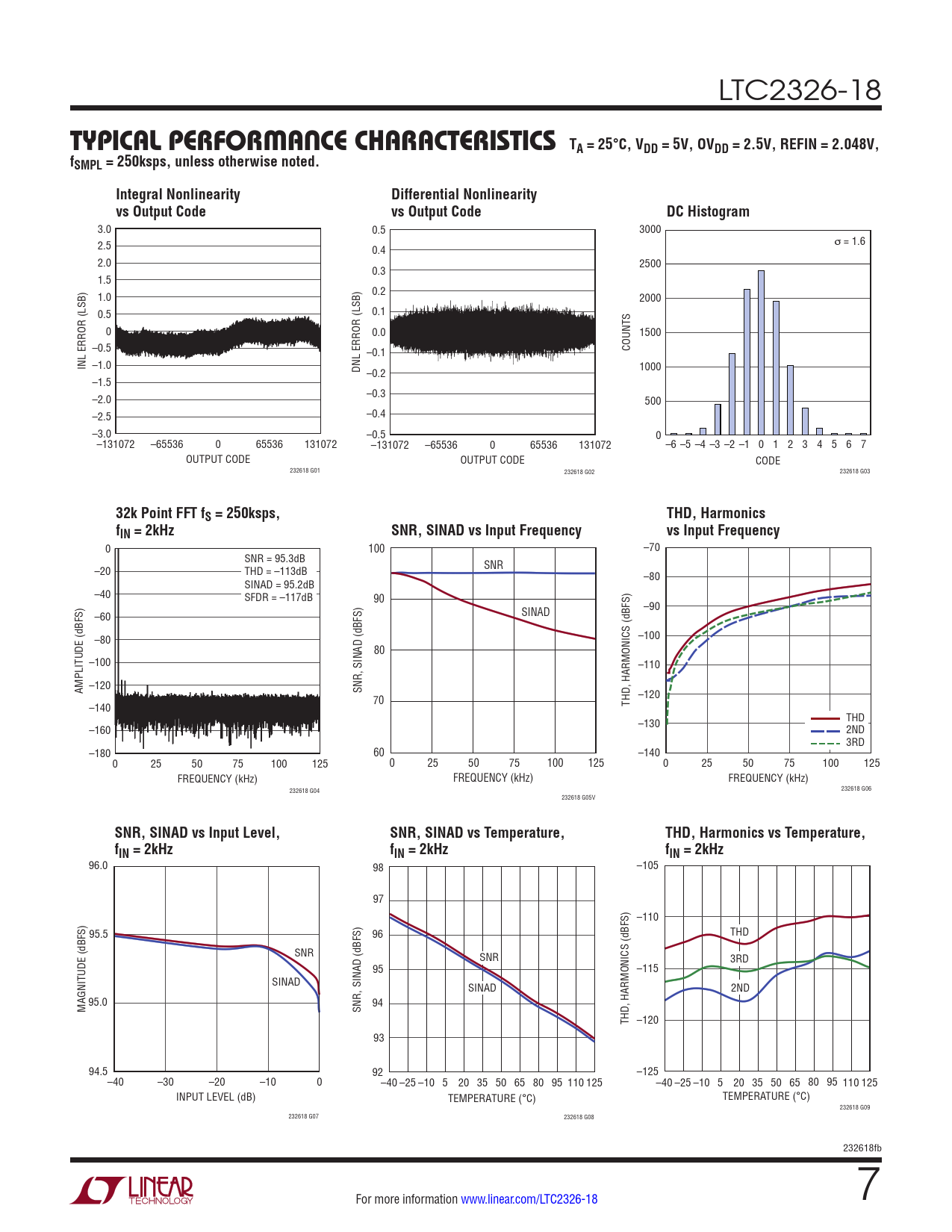

Typical perForMance characTerisTics TA = 25°C, VDD = 5V, OVDD = 2.5V, REFIN = 2.048V, fSMPL = 250ksps, unless otherwise noted. Integral Nonlinearity Differential Nonlinearity vs Output Code vs Output Code DC Histogram
