Datasheet LTC2345-18 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | Octal, 18-Bit, 200ksps Differential SoftSpan ADC with Wide Input Common Mode Range |
| Pages / Page | 40 / 1 — FeaTures. DescripTion. 200ksps per Channel Throughput. Eight Simultaneous … |
| File Format / Size | PDF / 1.9 Mb |
| Document Language | English |
FeaTures. DescripTion. 200ksps per Channel Throughput. Eight Simultaneous Sampling Channels. ±5LSB INL (Maximum, ±4.096V Range)
Model Line for this Datasheet
Text Version of Document

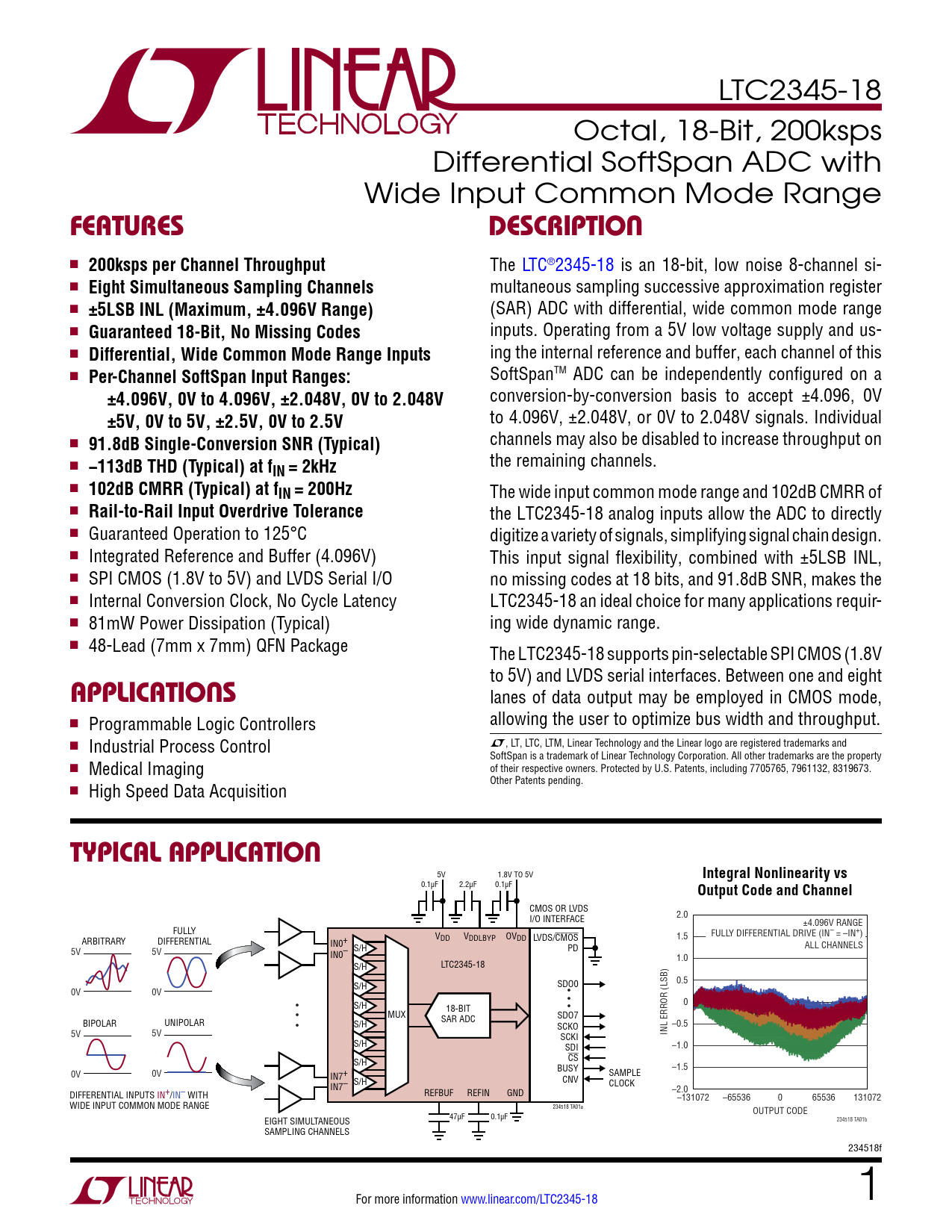

LTC2345-18 Octal, 18-Bit, 200ksps Differential SoftSpan ADC with Wide Input Common Mode Range
FeaTures DescripTion
n
200ksps per Channel Throughput
The LTC®2345-18 is an 18-bit, low noise 8-channel si- n
Eight Simultaneous Sampling Channels
multaneous sampling successive approximation register n
±5LSB INL (Maximum, ±4.096V Range)
(SAR) ADC with differential, wide common mode range n
Guaranteed 18-Bit, No Missing Codes
inputs. Operating from a 5V low voltage supply and us- n
Differential, Wide Common Mode Range Inputs
ing the internal reference and buffer, each channel of this n
Per-Channel SoftSpan Input Ranges:
SoftSpanTM ADC can be independently configured on a
±4.096V, 0V to 4.096V, ±2.048V, 0V to 2.048V
conversion-by-conversion basis to accept ±4.096, 0V
±5V, 0V to 5V, ±2.5V, 0V to 2.5V
to 4.096V, ±2.048V, or 0V to 2.048V signals. Individual n channels may also be disabled to increase throughput on
91.8dB Single-Conversion SNR (Typical)
n the remaining channels.
−113dB THD (Typical) at fIN = 2kHz
n
102dB CMRR (Typical) at fIN = 200Hz
The wide input common mode range and 102dB CMRR of n
Rail-to-Rail Input Overdrive Tolerance
the LTC2345-18 analog inputs allow the ADC to directly n Guaranteed Operation to 125°C digitize a variety of signals, simplifying signal chain design. n Integrated Reference and Buffer (4.096V) This input signal flexibility, combined with ±5LSB INL, n SPI CMOS (1.8V to 5V) and LVDS Serial I/O no missing codes at 18 bits, and 91.8dB SNR, makes the n Internal Conversion Clock, No Cycle Latency LTC2345-18 an ideal choice for many applications requir- n 81mW Power Dissipation (Typical) ing wide dynamic range. n 48-Lead (7mm x 7mm) QFN Package The LTC2345-18 supports pin-selectable SPI CMOS (1.8V to 5V) and LVDS serial interfaces. Between one and eight
applicaTions
lanes of data output may be employed in CMOS mode, n allowing the user to optimize bus width and throughput. Programmable Logic Controllers L n , LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and Industrial Process Control SoftSpan is a trademark of Linear Technology Corporation. All other trademarks are the property n of their respective owners. Protected by U.S. Patents, including 7705765, 7961132, 8319673. Medical Imaging Other Patents pending. n High Speed Data Acquisition
Typical applicaTion
