Typical perForMance characTerisTics. TA = 25°C, VDD = 2.5V, OVDD = 2.5V, VCM = 2.5V,
Model Line for this Datasheet
- LTC2376CDE-18#PBF LTC2376CDE-18#PBF LTC2376CDE-18#TRPBF LTC2376CDE-18#TRPBF LTC2376CMS-18#PBF LTC2376CMS-18#PBF LTC2376CMS-18#TRPBF LTC2376CMS-18#TRPBF LTC2376HMS-18#PBF LTC2376HMS-18#PBF LTC2376HMS-18#TRPBF LTC2376HMS-18#TRPBF LTC2376IDE-18#PBF LTC2376IDE-18#PBF LTC2376IDE-18#TRPBF LTC2376IDE-18#TRPBF LTC2376IMS-18#PBF LTC2376IMS-18#PBF LTC2376IMS-18#TRPBF LTC2376IMS-18#TRPBF
Text Version of Document
LTC2376-18

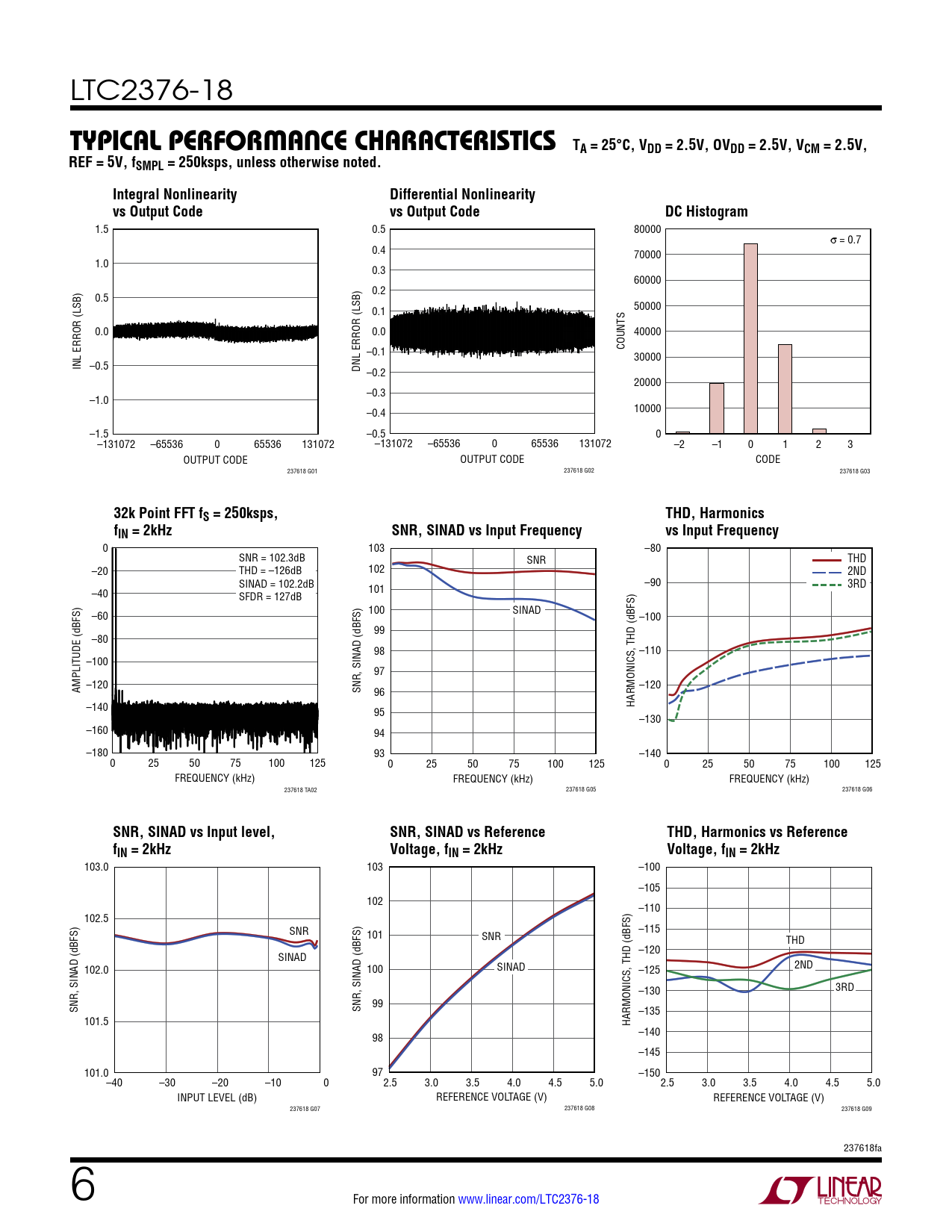

Typical perForMance characTerisTics TA = 25°C, VDD = 2.5V, OVDD = 2.5V, VCM = 2.5V, REF = 5V, fSMPL = 250ksps, unless otherwise noted. Integral Nonlinearity Differential Nonlinearity vs Output Code vs Output Code DC Histogram
