TYPICAL PERFORMANCE CHARACTERISTICS. TA = 25°C, VDD = 2.5V, OVDD = 2.5V, VCM = 2.5V,
Model Line for this Datasheet
- LTC2377CDE-18#PBF LTC2377CDE-18#PBF LTC2377CDE-18#TRPBF LTC2377CDE-18#TRPBF LTC2377CMS-18#PBF LTC2377CMS-18#PBF LTC2377CMS-18#TRPBF LTC2377CMS-18#TRPBF LTC2377HMS-18#PBF LTC2377HMS-18#PBF LTC2377HMS-18#TRPBF LTC2377HMS-18#TRPBF LTC2377IDE-18#PBF LTC2377IDE-18#PBF LTC2377IDE-18#TRPBF LTC2377IDE-18#TRPBF LTC2377IMS-18#PBF LTC2377IMS-18#PBF LTC2377IMS-18#TRPBF LTC2377IMS-18#TRPBF
Text Version of Document
LTC2377-18

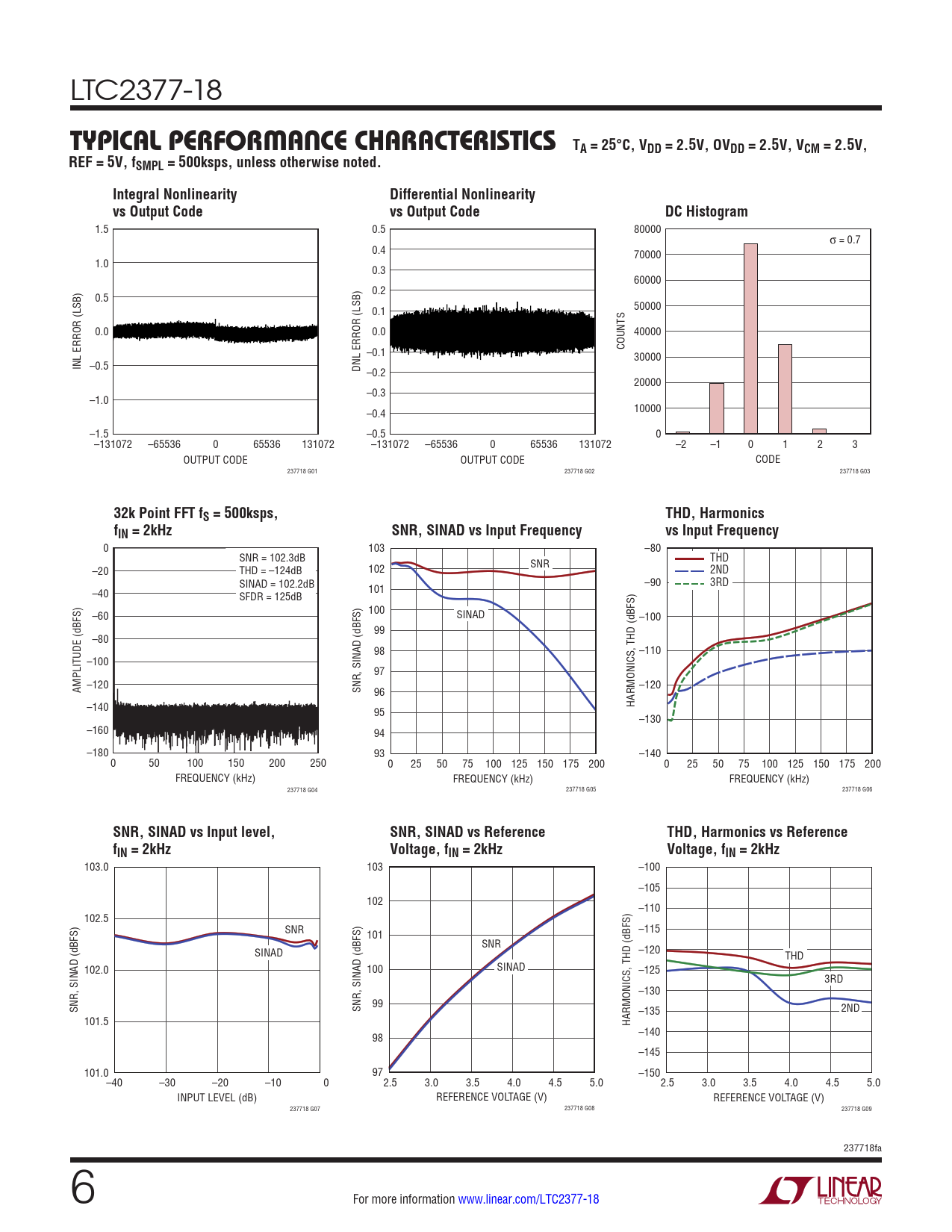

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, VDD = 2.5V, OVDD = 2.5V, VCM = 2.5V, REF = 5V, fSMPL = 500ksps, unless otherwise noted. Integral Nonlinearity Differential Nonlinearity vs Output Code vs Output Code DC Histogram
