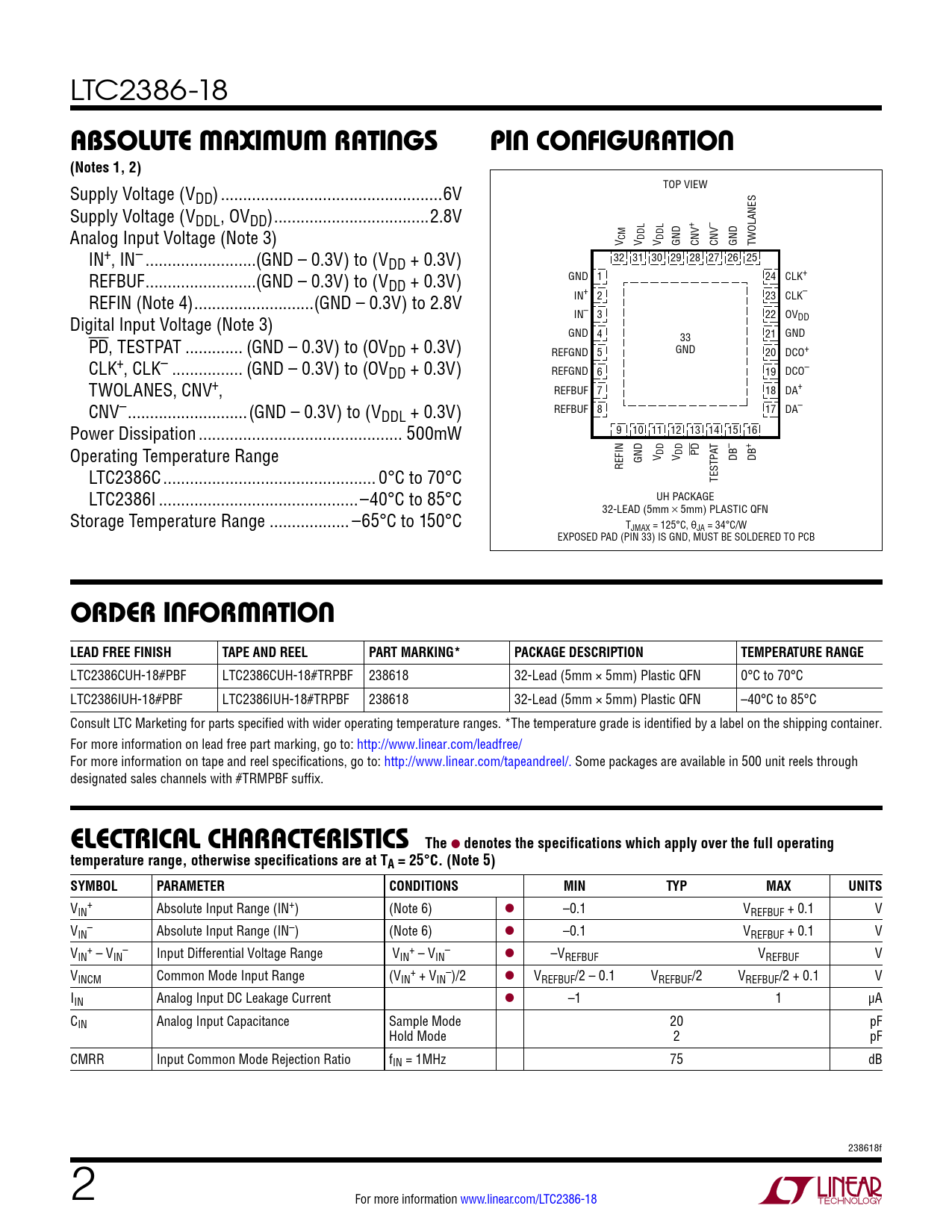

absoluTe MaxiMuM raTings. pin conFiguraTion. (Notes 1, 2). orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LTC2386-18
absoluTe MaxiMuM raTings pin conFiguraTion (Notes 1, 2)
Supply Voltage (V TOP VIEW DD) ..6V Supply Voltage (VDDL, OVDD) ...2.8V + – Analog Input Voltage (Note 3) V CM V DDL V DDL GND CNV CNV GND TWOLANES IN+, IN– ...(GND – 0.3V) to (VDD + 0.3V) 32 31 30 29 28 27 26 25 REFBUF ...(GND – 0.3V) to (V GND 1 24 CLK+ DD + 0.3V) REFIN (Note 4) ...(GND – 0.3V) to 2.8V IN+ 2 23 CLK– Digital Input Voltage (Note 3) IN– 3 22 OVDD GND 4 21 GND PD, TESTPAT ... (GND – 0.3V) to (OV 33 DD + 0.3V) REFGND 5 GND 20 DCO+ CLK+, CLK– .. (GND – 0.3V) to (OVDD + 0.3V) REFGND 6 19 DCO– TWOLANES, CNV+, REFBUF 7 18 DA+ CNV– ...(GND – 0.3V) to (VDDL + 0.3V) REFBUF 8 17 DA– Power Dissipation .. 500mW 9 10 11 12 13 14 15 16 Operating Temperature Range AT – + DB DB LTC2386C .. 0°C to 70°C REFIN GND V DD V DD PD TESTP LTC2386I ...–40°C to 85°C UH PACKAGE Storage Temperature Range .. –65°C to 150°C 32-LEAD (5mm × 5mm) PLASTIC QFN TJMAX = 125°C, θJA = 34°C/W EXPOSED PAD (PIN 33) IS GND, MUST BE SOLDERED TO PCB
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2386CUH-18#PBF LTC2386CUH-18#TRPBF 238618 32-Lead (5mm × 5mm) Plastic QFN 0°C to 70°C LTC2386IUH-18#PBF LTC2386IUH-18#TRPBF 238618 32-Lead (5mm × 5mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
