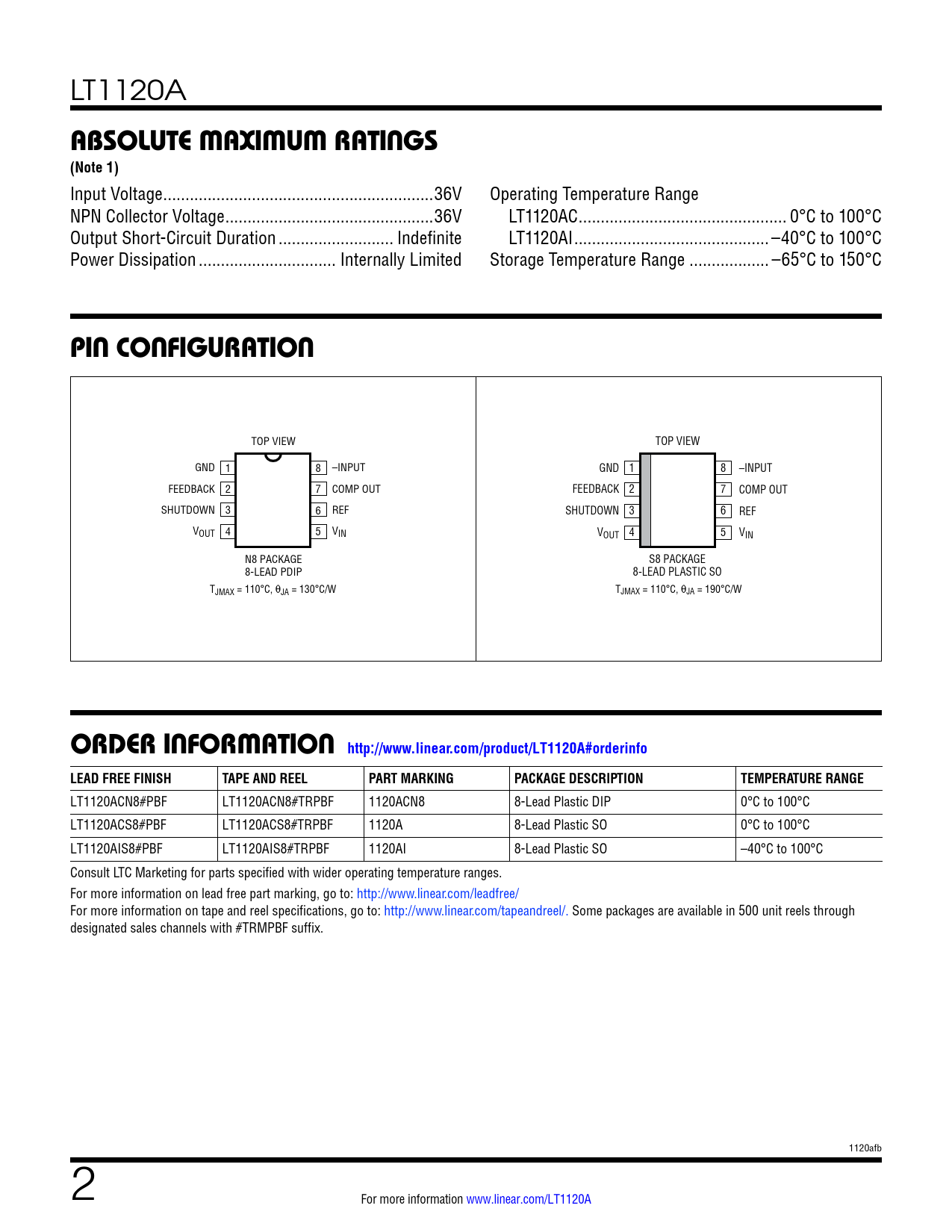

LT1120A
absoluTe MaxiMuM raTings (Note 1)
Input Voltage ...36V Operating Temperature Range NPN Col ector Voltage ...36V LT1120AC ... 0°C to 100°C Output Short-Circuit Duration .. Indefinite LT1120AI ..–40°C to 100°C Power Dissipation ... Internally Limited Storage Temperature Range .. –65°C to 150°C
pin conFiguraTion
TOP VIEW TOP VIEW GND 1 8 –INPUT GND 1 8 –INPUT FEEDBACK 2 7 COMP OUT FEEDBACK 2 7 COMP OUT SHUTDOWN 3 6 REF SHUTDOWN 3 6 REF VOUT 4 5 VIN VOUT 4 5 VIN N8 PACKAGE S8 PACKAGE 8-LEAD PDIP 8-LEAD PLASTIC SO TJMAX = 110°C, θJA = 130°C/W TJMAX = 110°C, θJA = 190°C/W
orDer inForMaTion http://www.linear.com/product/LT1120A#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1120ACN8#PBF LT1120ACN8#TRPBF 1120ACN8 8-Lead Plastic DIP 0°C to 100°C LT1120ACS8#PBF LT1120ACS8#TRPBF 1120A 8-Lead Plastic SO 0°C to 100°C LT1120AIS8#PBF LT1120AIS8#TRPBF 1120AI 8-Lead Plastic SO –40°C to 100°C Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 1120afb 2 For more information www.linear.com/LT1120A Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Related Parts
