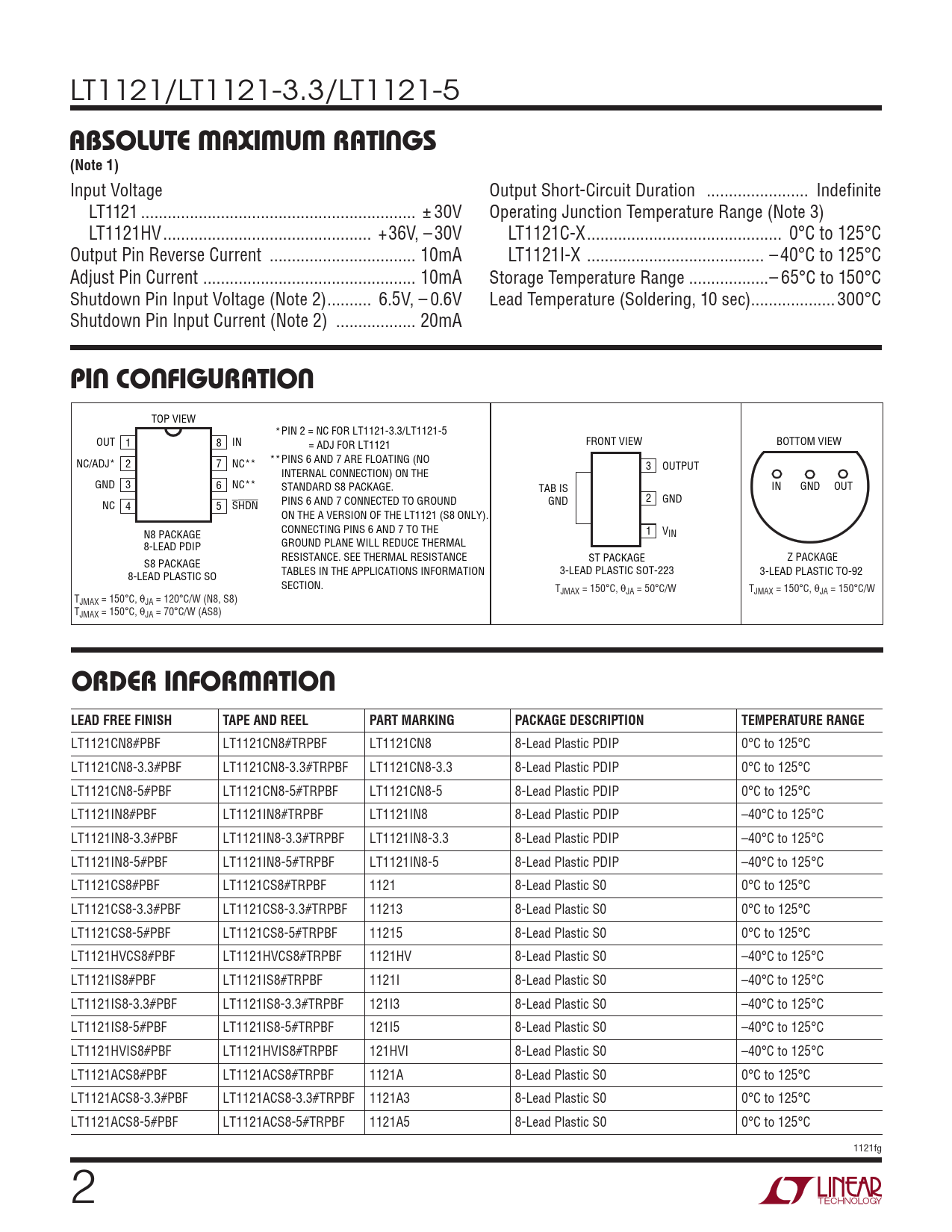

LT1121/LT1121-3.3/LT1121-5
ABSOLUTE MAXIMUM RATINGS (Note 1)
Input Voltage Output Short-Circuit Duration ... Indefinite LT1121 .. ± 30V Operating Junction Temperature Range (Note 3) LT1121HV ... +36V, –30V LT1121C-X .. 0°C to 125°C Output Pin Reverse Current ... 10mA LT1121I-X .. –40°C to 125°C Adjust Pin Current .. 10mA Storage Temperature Range ..– 65°C to 150°C Shutdown Pin Input Voltage (Note 2) .. 6.5V, – 0.6V Lead Temperature (Soldering, 10 sec) ...300°C Shutdown Pin Input Current (Note 2) .. 20mA
PIN CONFIGURATION
TOP VIEW *PIN 2 = NC FOR LT1121-3.3/LT1121-5 OUT 1 8 IN = ADJ FOR LT1121 FRONT VIEW BOTTOM VIEW NC/ADJ* 2 7 NC** **PINS 6 AND 7 ARE FLOATING (NO 3 OUTPUT INTERNAL CONNECTION) ON THE GND 3 6 NC** STANDARD S8 PACKAGE. TAB IS IN GND OUT GND 2 GND NC 4 5 SHDN PINS 6 AND 7 CONNECTED TO GROUND ON THE A VERSION OF THE LT1121 (S8 ONLY). N8 PACKAGE CONNECTING PINS 6 AND 7 TO THE 1 VIN 8-LEAD PDIP GROUND PLANE WILL REDUCE THERMAL S8 PACKAGE RESISTANCE. SEE THERMAL RESISTANCE ST PACKAGE Z PACKAGE 8-LEAD PLASTIC SO TABLES IN THE APPLICATIONS INFORMATION 3-LEAD PLASTIC SOT-223 3-LEAD PLASTIC TO-92 SECTION. TJMAX = 150°C, θJA = 50°C/W TJMAX = 150°C, θJA = 150°C/W TJMAX = 150°C, θJA = 120°C/W (N8, S8) TJMAX = 150°C, θJA = 70°C/W (AS8)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1121CN8#PBF LT1121CN8#TRPBF LT1121CN8 8-Lead Plastic PDIP 0°C to 125°C LT1121CN8-3.3#PBF LT1121CN8-3.3#TRPBF LT1121CN8-3.3 8-Lead Plastic PDIP 0°C to 125°C LT1121CN8-5#PBF LT1121CN8-5#TRPBF LT1121CN8-5 8-Lead Plastic PDIP 0°C to 125°C LT1121IN8#PBF LT1121IN8#TRPBF LT1121IN8 8-Lead Plastic PDIP –40°C to 125°C LT1121IN8-3.3#PBF LT1121IN8-3.3#TRPBF LT1121IN8-3.3 8-Lead Plastic PDIP –40°C to 125°C LT1121IN8-5#PBF LT1121IN8-5#TRPBF LT1121IN8-5 8-Lead Plastic PDIP –40°C to 125°C LT1121CS8#PBF LT1121CS8#TRPBF 1121 8-Lead Plastic S0 0°C to 125°C LT1121CS8-3.3#PBF LT1121CS8-3.3#TRPBF 11213 8-Lead Plastic S0 0°C to 125°C LT1121CS8-5#PBF LT1121CS8-5#TRPBF 11215 8-Lead Plastic S0 0°C to 125°C LT1121HVCS8#PBF LT1121HVCS8#TRPBF 1121HV 8-Lead Plastic S0 –40°C to 125°C LT1121IS8#PBF LT1121IS8#TRPBF 1121I 8-Lead Plastic S0 –40°C to 125°C LT1121IS8-3.3#PBF LT1121IS8-3.3#TRPBF 121I3 8-Lead Plastic S0 –40°C to 125°C LT1121IS8-5#PBF LT1121IS8-5#TRPBF 121I5 8-Lead Plastic S0 –40°C to 125°C LT1121HVIS8#PBF LT1121HVIS8#TRPBF 121HVI 8-Lead Plastic S0 –40°C to 125°C LT1121ACS8#PBF LT1121ACS8#TRPBF 1121A 8-Lead Plastic S0 0°C to 125°C LT1121ACS8-3.3#PBF LT1121ACS8-3.3#TRPBF 1121A3 8-Lead Plastic S0 0°C to 125°C LT1121ACS8-5#PBF LT1121ACS8-5#TRPBF 1121A5 8-Lead Plastic S0 0°C to 125°C 1121fg 2 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Revision History Related Parts
ABSOLUTE MAXIMUM RATINGS (Note 1)
Input Voltage Output Short-Circuit Duration ... Indefinite LT1121 .. ± 30V Operating Junction Temperature Range (Note 3) LT1121HV ... +36V, –30V LT1121C-X .. 0°C to 125°C Output Pin Reverse Current ... 10mA LT1121I-X .. –40°C to 125°C Adjust Pin Current .. 10mA Storage Temperature Range ..– 65°C to 150°C Shutdown Pin Input Voltage (Note 2) .. 6.5V, – 0.6V Lead Temperature (Soldering, 10 sec) ...300°C Shutdown Pin Input Current (Note 2) .. 20mA
PIN CONFIGURATION
TOP VIEW *PIN 2 = NC FOR LT1121-3.3/LT1121-5 OUT 1 8 IN = ADJ FOR LT1121 FRONT VIEW BOTTOM VIEW NC/ADJ* 2 7 NC** **PINS 6 AND 7 ARE FLOATING (NO 3 OUTPUT INTERNAL CONNECTION) ON THE GND 3 6 NC** STANDARD S8 PACKAGE. TAB IS IN GND OUT GND 2 GND NC 4 5 SHDN PINS 6 AND 7 CONNECTED TO GROUND ON THE A VERSION OF THE LT1121 (S8 ONLY). N8 PACKAGE CONNECTING PINS 6 AND 7 TO THE 1 VIN 8-LEAD PDIP GROUND PLANE WILL REDUCE THERMAL S8 PACKAGE RESISTANCE. SEE THERMAL RESISTANCE ST PACKAGE Z PACKAGE 8-LEAD PLASTIC SO TABLES IN THE APPLICATIONS INFORMATION 3-LEAD PLASTIC SOT-223 3-LEAD PLASTIC TO-92 SECTION. TJMAX = 150°C, θJA = 50°C/W TJMAX = 150°C, θJA = 150°C/W TJMAX = 150°C, θJA = 120°C/W (N8, S8) TJMAX = 150°C, θJA = 70°C/W (AS8)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1121CN8#PBF LT1121CN8#TRPBF LT1121CN8 8-Lead Plastic PDIP 0°C to 125°C LT1121CN8-3.3#PBF LT1121CN8-3.3#TRPBF LT1121CN8-3.3 8-Lead Plastic PDIP 0°C to 125°C LT1121CN8-5#PBF LT1121CN8-5#TRPBF LT1121CN8-5 8-Lead Plastic PDIP 0°C to 125°C LT1121IN8#PBF LT1121IN8#TRPBF LT1121IN8 8-Lead Plastic PDIP –40°C to 125°C LT1121IN8-3.3#PBF LT1121IN8-3.3#TRPBF LT1121IN8-3.3 8-Lead Plastic PDIP –40°C to 125°C LT1121IN8-5#PBF LT1121IN8-5#TRPBF LT1121IN8-5 8-Lead Plastic PDIP –40°C to 125°C LT1121CS8#PBF LT1121CS8#TRPBF 1121 8-Lead Plastic S0 0°C to 125°C LT1121CS8-3.3#PBF LT1121CS8-3.3#TRPBF 11213 8-Lead Plastic S0 0°C to 125°C LT1121CS8-5#PBF LT1121CS8-5#TRPBF 11215 8-Lead Plastic S0 0°C to 125°C LT1121HVCS8#PBF LT1121HVCS8#TRPBF 1121HV 8-Lead Plastic S0 –40°C to 125°C LT1121IS8#PBF LT1121IS8#TRPBF 1121I 8-Lead Plastic S0 –40°C to 125°C LT1121IS8-3.3#PBF LT1121IS8-3.3#TRPBF 121I3 8-Lead Plastic S0 –40°C to 125°C LT1121IS8-5#PBF LT1121IS8-5#TRPBF 121I5 8-Lead Plastic S0 –40°C to 125°C LT1121HVIS8#PBF LT1121HVIS8#TRPBF 121HVI 8-Lead Plastic S0 –40°C to 125°C LT1121ACS8#PBF LT1121ACS8#TRPBF 1121A 8-Lead Plastic S0 0°C to 125°C LT1121ACS8-3.3#PBF LT1121ACS8-3.3#TRPBF 1121A3 8-Lead Plastic S0 0°C to 125°C LT1121ACS8-5#PBF LT1121ACS8-5#TRPBF 1121A5 8-Lead Plastic S0 0°C to 125°C 1121fg 2 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Revision History Related Parts
