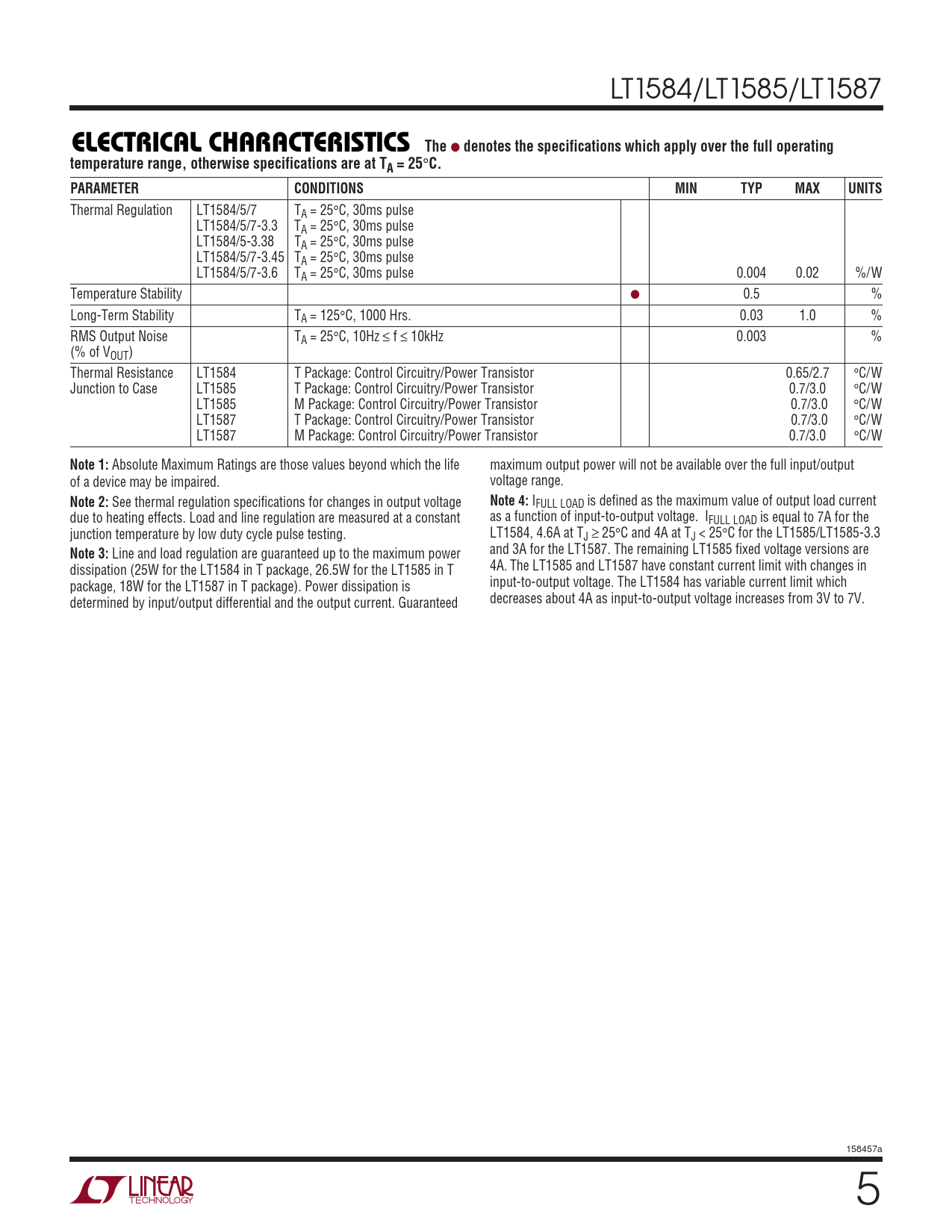

LT1584/LT1585/LT1587
ELECTRICAL CHARACTERISTICS The

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Thermal Regulation LT1584/5/7 TA = 25°C, 30ms pulse LT1584/5/7-3.3 TA = 25°C, 30ms pulse LT1584/5-3.38 TA = 25°C, 30ms pulse LT1584/5/7-3.45 TA = 25°C, 30ms pulse LT1584/5/7-3.6 TA = 25°C, 30ms pulse 0.004 0.02 %/W Temperature Stability ● 0.5 % Long-Term Stability TA = 125°C, 1000 Hrs. 0.03 1.0 % RMS Output Noise TA = 25°C, 10Hz ≤ f ≤ 10kHz 0.003 % (% of VOUT) Thermal Resistance LT1584 T Package: Control Circuitry/Power Transistor 0.65/2.7 °C/W Junction to Case LT1585 T Package: Control Circuitry/Power Transistor 0.7/3.0 °C/W LT1585 M Package: Control Circuitry/Power Transistor 0.7/3.0 °C/W LT1587 T Package: Control Circuitry/Power Transistor 0.7/3.0 °C/W LT1587 M Package: Control Circuitry/Power Transistor 0.7/3.0 °C/W
Note 1:
Absolute Maximum Ratings are those values beyond which the life maximum output power will not be available over the full input/output of a device may be impaired. voltage range.
Note 2:
See thermal regulation specifications for changes in output voltage
Note 4:
IFULL LOAD is defined as the maximum value of output load current due to heating effects. Load and line regulation are measured at a constant as a function of input-to-output voltage. IFULL LOAD is equal to 7A for the junction temperature by low duty cycle pulse testing. LT1584, 4.6A at TJ ≥ 25°C and 4A at TJ < 25°C for the LT1585/LT1585-3.3 and 3A for the LT1587. The remaining LT1585 fixed voltage versions are
