| Description | 100mA, Low Noise, LDO Micropower Regulators in TSOT-23 |
| Pages / Page | 22 / 7 — TYPICAL PERFORMANCE CHARACTERISTICS. Typical Dropout Voltage. Guaranteed … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. Typical Dropout Voltage. Guaranteed Dropout Voltage. Dropout Voltage. LT1761-1.2. LT1761-1.5
Model Line for this Datasheet
- LT1761ES5-1.2#PBF LT1761ES5-1.2#TRMPBF LT1761ES5-1.2#TRMPBF LT1761ES5-1.2#TRPBF LT1761ES5-1.2#TRPBF LT1761ES5-1.5#PBF LT1761ES5-1.5#TRMPBF LT1761ES5-1.5#TRMPBF LT1761ES5-1.5#TRPBF LT1761ES5-1.5#TRPBF LT1761ES5-1.8#PBF LT1761ES5-1.8#TRMPBF LT1761ES5-1.8#TRMPBF LT1761ES5-1.8#TRPBF LT1761ES5-1.8#TRPBF LT1761ES5-2#PBF LT1761ES5-2#TRMPBF LT1761ES5-2#TRMPBF LT1761ES5-2#TRPBF LT1761ES5-2#TRPBF LT1761ES5-2.5#PBF LT1761ES5-2.5#TRMPBF LT1761ES5-2.5#TRMPBF LT1761ES5-2.5#TRPBF LT1761ES5-2.5#TRPBF LT1761ES5-2.8#PBF LT1761ES5-2.8#TRMPBF LT1761ES5-2.8#TRMPBF LT1761ES5-2.8#TRPBF LT1761ES5-2.8#TRPBF LT1761ES5-3#PBF LT1761ES5-3#TRMPBF LT1761ES5-3#TRMPBF LT1761ES5-3#TRPBF LT1761ES5-3#TRPBF LT1761ES5-3.3#PBF LT1761ES5-3.3#TRMPBF LT1761ES5-3.3#TRMPBF LT1761ES5-3.3#TRPBF LT1761ES5-3.3#TRPBF LT1761ES5-5#PBF LT1761ES5-5#TRMPBF LT1761ES5-5#TRMPBF LT1761ES5-5#TRPBF LT1761ES5-5#TRPBF LT1761ES5-BYP#PBF LT1761ES5-BYP#TRMPBF LT1761ES5-BYP#TRMPBF LT1761ES5-BYP#TRPBF LT1761ES5-BYP#TRPBF LT1761ES5-SD#PBF LT1761ES5-SD#TRMPBF LT1761ES5-SD#TRMPBF LT1761ES5-SD#TRPBF LT1761ES5-SD#TRPBF LT1761IS5-1.2#PBF LT1761IS5-1.2#TRMPBF LT1761IS5-1.2#TRMPBF LT1761IS5-1.2#TRPBF LT1761IS5-1.2#TRPBF LT1761IS5-1.5#PBF LT1761IS5-1.5#TRMPBF LT1761IS5-1.5#TRMPBF LT1761IS5-1.5#TRPBF LT1761IS5-1.5#TRPBF LT1761IS5-1.8#PBF LT1761IS5-1.8#TRMPBF LT1761IS5-1.8#TRMPBF LT1761IS5-1.8#TRPBF LT1761IS5-1.8#TRPBF LT1761IS5-2#PBF LT1761IS5-2#TRMPBF LT1761IS5-2#TRMPBF LT1761IS5-2#TRPBF LT1761IS5-2#TRPBF LT1761IS5-2.5#PBF LT1761IS5-2.5#TRMPBF LT1761IS5-2.5#TRMPBF LT1761IS5-2.5#TRPBF LT1761IS5-2.5#TRPBF LT1761IS5-2.8#PBF LT1761IS5-2.8#TRMPBF LT1761IS5-2.8#TRMPBF LT1761IS5-2.8#TRPBF LT1761IS5-2.8#TRPBF LT1761IS5-3#PBF LT1761IS5-3#TRMPBF LT1761IS5-3#TRMPBF LT1761IS5-3#TRPBF LT1761IS5-3#TRPBF LT1761IS5-3.3#PBF LT1761IS5-3.3#TRMPBF LT1761IS5-3.3#TRMPBF LT1761IS5-3.3#TRPBF LT1761IS5-3.3#TRPBF LT1761IS5-5#PBF LT1761IS5-5#TRMPBF LT1761IS5-5#TRMPBF LT1761IS5-5#TRPBF LT1761IS5-5#TRPBF LT1761IS5-BYP#PBF LT1761IS5-BYP#TRMPBF LT1761IS5-BYP#TRMPBF LT1761IS5-BYP#TRPBF LT1761IS5-BYP#TRPBF LT1761IS5-SD#PBF LT1761IS5-SD#TRMPBF LT1761IS5-SD#TRMPBF LT1761IS5-SD#TRPBF LT1761IS5-SD#TRPBF LT1761MPS5-1.8#TRMPBF LT1761MPS5-1.8#TRMPBF LT1761MPS5-1.8#TRPBF LT1761MPS5-1.8#TRPBF LT1761MPS5-3.3 LT1761MPS5-3.3#PBF LT1761MPS5-3.3#TR LT1761MPS5-3.3#TRM LT1761MPS5-3.3#TRMPBF LT1761MPS5-3.3#TRMPBF LT1761MPS5-3.3#TRPBF LT1761MPS5-3.3#TRPBF LT1761MPS5-5#PBF LT1761MPS5-5#TR LT1761MPS5-5#TRM LT1761MPS5-5#TRMPBF LT1761MPS5-5#TRMPBF LT1761MPS5-5#TRPBF LT1761MPS5-5#TRPBF
Text Version of Document
LT1761 Series

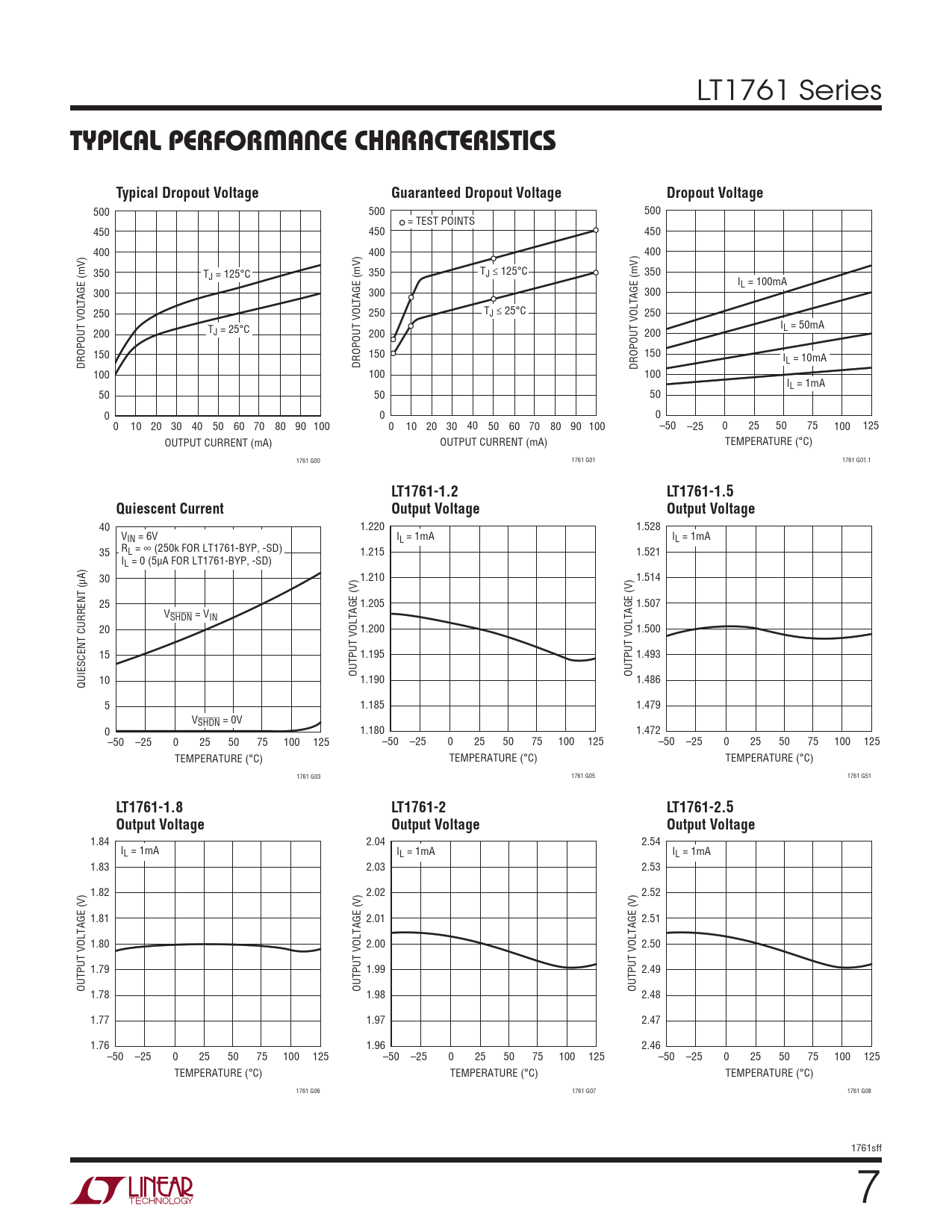

TYPICAL PERFORMANCE CHARACTERISTICS Typical Dropout Voltage Guaranteed Dropout Voltage Dropout Voltage
