| Description | 1.5A, Low Noise, Fast Transient Response LDO Regulators |
| Pages / Page | 28 / 10 — Typical perForMance characTerisTics. SHDN Pin Input Current. ADJ Pin Bias … |
| File Format / Size | PDF / 552 Kb |
| Document Language | English |
Typical perForMance characTerisTics. SHDN Pin Input Current. ADJ Pin Bias Current. Current Limit. Reverse Output Current
Model Line for this Datasheet
- LT1963AEFE#PBF LT1963AEFE#TRPBF LT1963AEFE-1.5#PBF LT1963AEFE-1.5#TRPBF LT1963AEFE-1.8#PBF LT1963AEFE-1.8#TRPBF LT1963AEFE-2.5#PBF LT1963AEFE-2.5#TRPBF LT1963AEFE-3.3#PBF LT1963AEFE-3.3#TRPBF LT1963AEQ#PBF LT1963AEQ#TRPBF LT1963AEQ-1.5#PBF LT1963AEQ-1.5#TRPBF LT1963AEQ-1.8#PBF LT1963AEQ-1.8#TRPBF LT1963AEQ-2.5#PBF LT1963AEQ-2.5#TRPBF LT1963AEQ-3.3#PBF LT1963AEQ-3.3#TRPBF LT1963AES8#PBF LT1963AES8#TRPBF LT1963AES8-1.5#PBF LT1963AES8-1.5#TRPBF LT1963AES8-1.8#PBF LT1963AES8-1.8#TRPBF LT1963AES8-2.5#PBF LT1963AES8-2.5#TRPBF LT1963AES8-3.3#PBF LT1963AES8-3.3#TRPBF LT1963AEST-1.5#PBF LT1963AEST-1.5#TRPBF LT1963AEST-1.8#PBF LT1963AEST-1.8#TRPBF LT1963AEST-2.5#PBF LT1963AEST-2.5#TRPBF LT1963AEST-3.3#PBF LT1963AEST-3.3#TRPBF LT1963AET#06PBF LT1963AET#PBF LT1963AET-1.5#06PBF LT1963AET-1.5#PBF LT1963AET-1.8#06PBF LT1963AET-1.8#30PBF LT1963AET-1.8#PBF LT1963AET-2.5#06PBF LT1963AET-2.5#30PBF LT1963AET-2.5#PBF LT1963AET-3.3#06PBF LT1963AET-3.3#30PBF LT1963AET-3.3#PBF LT1963AIFE#PBF LT1963AIFE#TRPBF LT1963AIQ#PBF LT1963AIQ#TRPBF LT1963AIS8#PBF LT1963AIS8#TRPBF LT1963AIT#PBF LT1963AMPQ LT1963AMPQ#PBF LT1963AMPQ#TR LT1963AMPQ#TRPBF LT1963AMPS8 LT1963AMPS8#PBF LT1963AMPS8#TR
- LT1963AEFE#PBF LT1963AEFE#TRPBF LT1963AEFE-1.5#PBF LT1963AEFE-1.5#TRPBF LT1963AEFE-1.8#PBF LT1963AEFE-1.8#TRPBF LT1963AEFE-2.5#PBF LT1963AEFE-2.5#TRPBF LT1963AEFE-3.3#PBF LT1963AEFE-3.3#TRPBF LT1963AEQ#PBF LT1963AEQ#TRPBF LT1963AEQ-1.5#PBF LT1963AEQ-1.5#TRPBF LT1963AEQ-1.8 LT1963AEQ-1.8#PBF LT1963AEQ-1.8#TRPBF LT1963AEQ-2.5#PBF LT1963AEQ-2.5#TRPBF LT1963AEQ-3.3#PBF LT1963AEQ-3.3#TRPBF LT1963AES8#PBF LT1963AES8#TRPBF LT1963AES8-1.5#PBF LT1963AES8-1.5#TRPBF LT1963AES8-1.8#PBF LT1963AES8-1.8#TRPBF LT1963AES8-2.5#PBF LT1963AES8-2.5#TRPBF LT1963AES8-3.3#PBF LT1963AES8-3.3#TRPBF LT1963AEST-1.5#PBF LT1963AEST-1.5#TRPBF LT1963AEST-1.8#PBF LT1963AEST-1.8#TRPBF LT1963AEST-2.5#PBF LT1963AEST-2.5#TRPBF LT1963AEST-3.3#PBF LT1963AEST-3.3#TRPBF LT1963AET#06PBF LT1963AET#PBF LT1963AET-1.5#06PBF LT1963AET-1.5#PBF LT1963AET-1.8#06PBF LT1963AET-1.8#30PBF LT1963AET-1.8#PBF LT1963AET-2.5#06PBF LT1963AET-2.5#30PBF LT1963AET-2.5#PBF LT1963AET-3.3#06PBF LT1963AET-3.3#30PBF LT1963AET-3.3#PBF LT1963AIFE#PBF LT1963AIFE#TRPBF LT1963AIQ#PBF LT1963AIQ#TRPBF LT1963AIS8#PBF LT1963AIS8#TRPBF LT1963AIT#PBF LT1963AMPQ#PBF LT1963AMPQ#TRPBF LT1963AMPS8#PBF
Text Version of Document
LT1963A Series

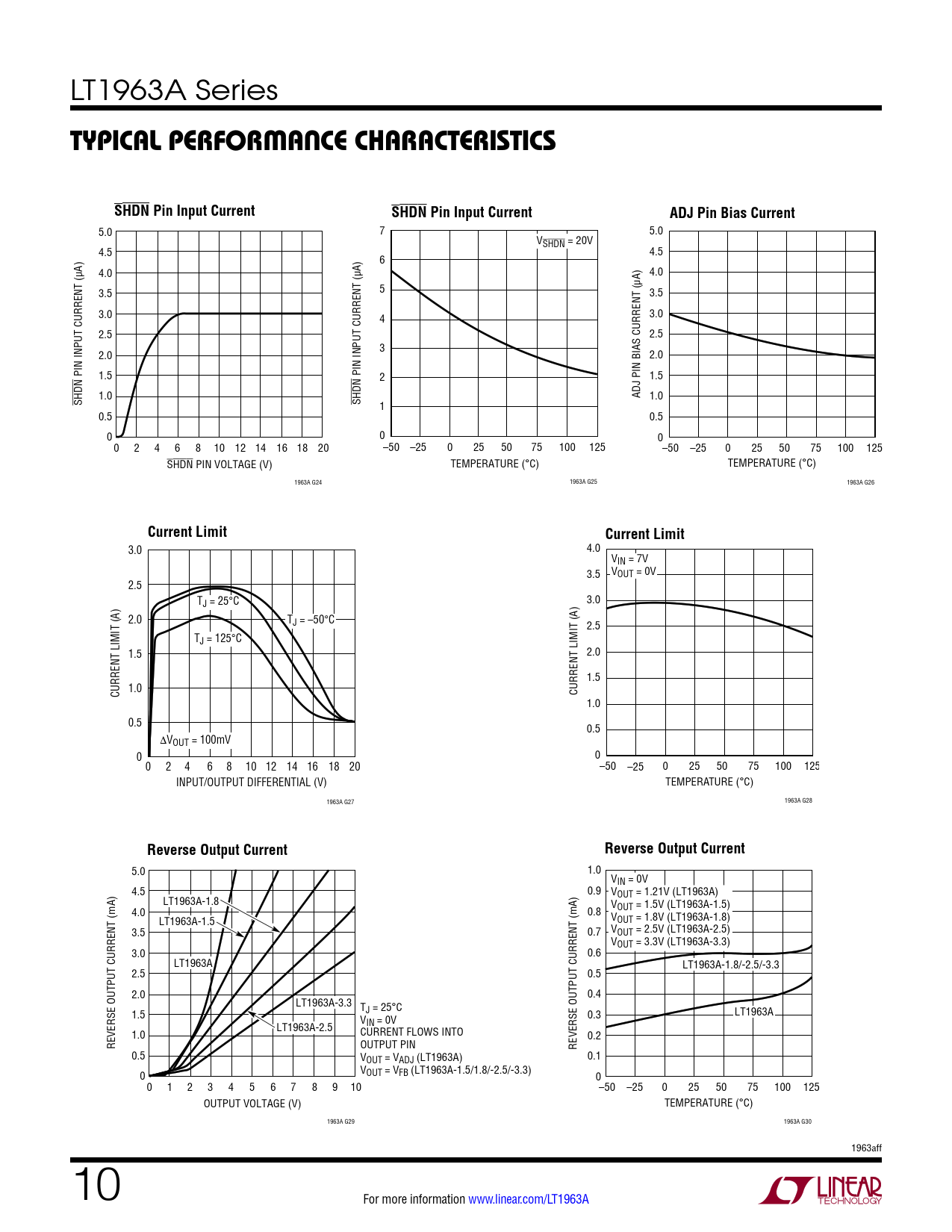

Typical perForMance characTerisTics SHDN Pin Input Current SHDN Pin Input Current ADJ Pin Bias Current
