LT3060 Series

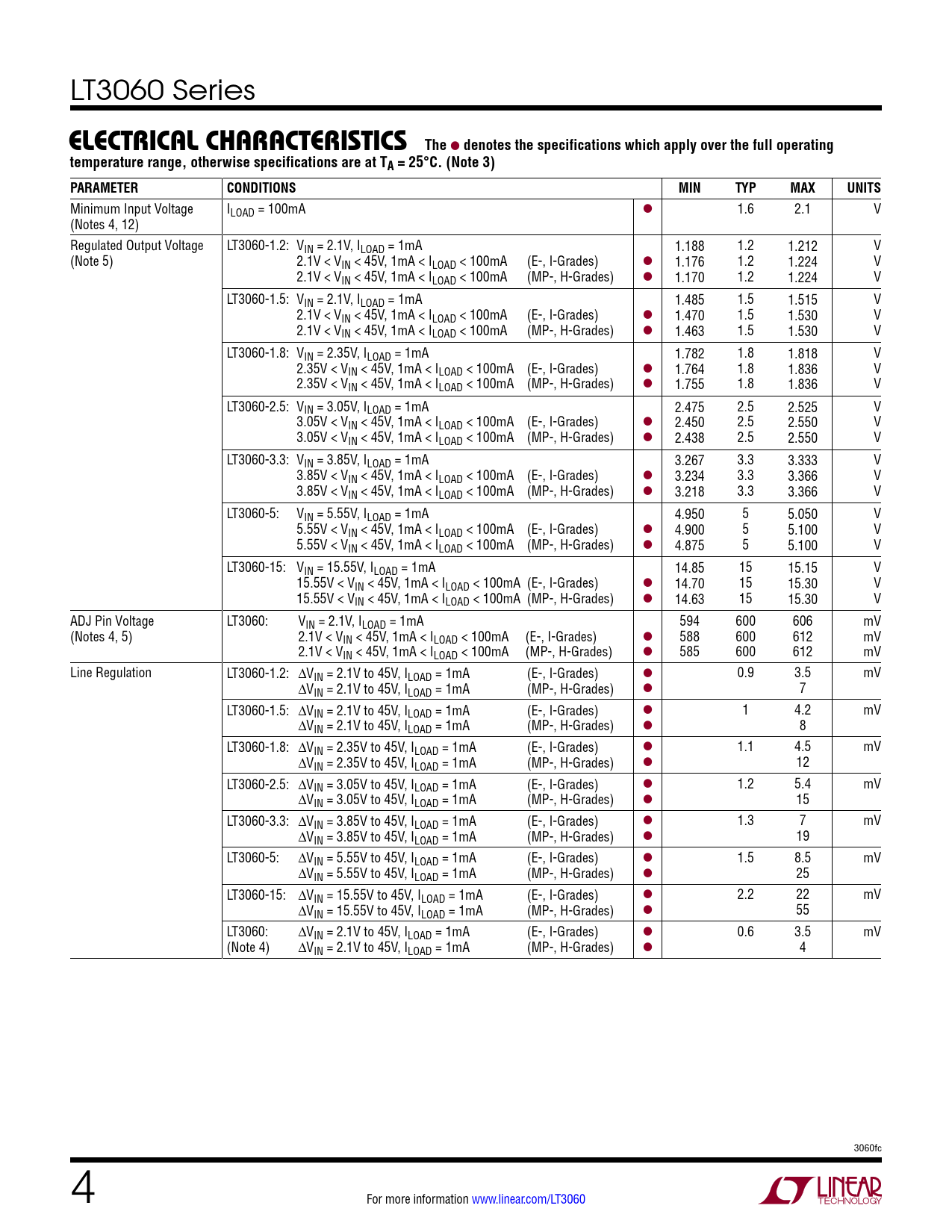

elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage ILOAD = 100mA l 1.6 2.1 V (Notes 4, 12) Regulated Output Voltage LT3060-1.2: VIN = 2.1V, ILOAD = 1mA 1.188 1.2 1.212 V (Note 5) 2.1V < VIN < 45V, 1mA < ILOAD < 100mA (E-, I-Grades) l 1.176 1.2 1.224 V 2.1V < VIN < 45V, 1mA < ILOAD < 100mA (MP-, H-Grades) l 1.170 1.2 1.224 V LT3060-1.5: VIN = 2.1V, ILOAD = 1mA 1.485 1.5 1.515 V 2.1V < VIN < 45V, 1mA < ILOAD < 100mA (E-, I-Grades) l 1.470 1.5 1.530 V 2.1V < VIN < 45V, 1mA < ILOAD < 100mA (MP-, H-Grades) l 1.463 1.5 1.530 V LT3060-1.8: VIN = 2.35V, ILOAD = 1mA 1.782 1.8 1.818 V 2.35V < VIN < 45V, 1mA < ILOAD < 100mA (E-, I-Grades) l 1.764 1.8 1.836 V 2.35V < VIN < 45V, 1mA < ILOAD < 100mA (MP-, H-Grades) l 1.755 1.8 1.836 V LT3060-2.5: VIN = 3.05V, ILOAD = 1mA 2.475 2.5 2.525 V 3.05V < VIN < 45V, 1mA < ILOAD < 100mA (E-, I-Grades) l 2.450 2.5 2.550 V 3.05V < VIN < 45V, 1mA < ILOAD < 100mA (MP-, H-Grades) l 2.438 2.5 2.550 V LT3060-3.3: VIN = 3.85V, ILOAD = 1mA 3.267 3.3 3.333 V 3.85V < VIN < 45V, 1mA < ILOAD < 100mA (E-, I-Grades) l 3.234 3.3 3.366 V 3.85V < VIN < 45V, 1mA < ILOAD < 100mA (MP-, H-Grades) l 3.218 3.3 3.366 V LT3060-5: VIN = 5.55V, ILOAD = 1mA 4.950 5 5.050 V 5.55V < VIN < 45V, 1mA < ILOAD < 100mA (E-, I-Grades) l 4.900 5 5.100 V 5.55V < VIN < 45V, 1mA < ILOAD < 100mA (MP-, H-Grades) l 4.875 5 5.100 V LT3060-15: VIN = 15.55V, ILOAD = 1mA 14.85 15 15.15 V 15.55V < VIN < 45V, 1mA < ILOAD < 100mA (E-, I-Grades) l 14.70 15 15.30 V 15.55V < VIN < 45V, 1mA < ILOAD < 100mA (MP-, H-Grades) l 14.63 15 15.30 V ADJ Pin Voltage LT3060: VIN = 2.1V, ILOAD = 1mA 594 600 606 mV (Notes 4, 5) 2.1V < VIN < 45V, 1mA < ILOAD < 100mA (E-, I-Grades) l 588 600 612 mV 2.1V < VIN < 45V, 1mA < ILOAD < 100mA (MP-, H-Grades) l 585 600 612 mV Line Regulation LT3060-1.2: ΔVIN = 2.1V to 45V, ILOAD = 1mA (E-, I-Grades) l 0.9 3.5 mV ΔVIN = 2.1V to 45V, ILOAD = 1mA (MP-, H-Grades) l 7 LT3060-1.5: ΔVIN = 2.1V to 45V, ILOAD = 1mA (E-, I-Grades) l 1 4.2 mV ΔVIN = 2.1V to 45V, ILOAD = 1mA (MP-, H-Grades) l 8 LT3060-1.8: ΔVIN = 2.35V to 45V, ILOAD = 1mA (E-, I-Grades) l 1.1 4.5 mV ΔVIN = 2.35V to 45V, ILOAD = 1mA (MP-, H-Grades) l 12 LT3060-2.5: ΔVIN = 3.05V to 45V, ILOAD = 1mA (E-, I-Grades) l 1.2 5.4 mV ΔVIN = 3.05V to 45V, ILOAD = 1mA (MP-, H-Grades) l 15 LT3060-3.3: ΔVIN = 3.85V to 45V, ILOAD = 1mA (E-, I-Grades) l 1.3 7 mV ΔVIN = 3.85V to 45V, ILOAD = 1mA (MP-, H-Grades) l 19 LT3060-5: ΔVIN = 5.55V to 45V, ILOAD = 1mA (E-, I-Grades) l 1.5 8.5 mV ΔVIN = 5.55V to 45V, ILOAD = 1mA (MP-, H-Grades) l 25 LT3060-15: ΔVIN = 15.55V to 45V, ILOAD = 1mA (E-, I-Grades) l 2.2 22 mV ΔVIN = 15.55V to 45V, ILOAD = 1mA (MP-, H-Grades) l 55 LT3060: ΔVIN = 2.1V to 45V, ILOAD = 1mA (E-, I-Grades) l 0.6 3.5 mV (Note 4) ΔVIN = 2.1V to 45V, ILOAD = 1mA (MP-, H-Grades) l 4 3060fc 4 For more information www.linear.com/LT3060 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Typical Application Revision History Typical Application Related Parts
