Datasheet LT3063 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 45V VIN, Micropower, Low Noise, 200mA LDO with Active Output Discharge |
| Pages / Page | 22 / 10 — TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. … |
| File Format / Size | PDF / 975 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Transient Response, V. SHDN Transient Response
Model Line for this Datasheet
- LT3063EDCB#PBF LT3063EDCB#TRMPBF LT3063EDCB#TRMPBF LT3063EDCB#TRPBF LT3063EDCB#TRPBF LT3063EDCB-3.3#PBF LT3063EDCB-3.3#TRMPBF LT3063EDCB-3.3#TRMPBF LT3063EDCB-3.3#TRPBF LT3063EDCB-3.3#TRPBF LT3063EDCB-5#PBF LT3063EDCB-5#TRMPBF LT3063EDCB-5#TRMPBF LT3063EDCB-5#TRPBF LT3063EDCB-5#TRPBF LT3063EMS8E#PBF LT3063EMS8E#PBF LT3063EMS8E#TRPBF LT3063EMS8E#TRPBF LT3063EMS8E-3.3#PBF LT3063EMS8E-3.3#PBF LT3063EMS8E-3.3#TRPBF LT3063EMS8E-3.3#TRPBF LT3063EMS8E-5#PBF LT3063EMS8E-5#PBF LT3063EMS8E-5#TRPBF LT3063EMS8E-5#TRPBF LT3063HDCB#PBF LT3063HDCB#TRMPBF LT3063HDCB#TRMPBF LT3063HDCB#TRPBF LT3063HDCB#TRPBF LT3063HMS8E#PBF LT3063HMS8E#PBF LT3063HMS8E#TRPBF LT3063HMS8E#TRPBF LT3063IDCB#PBF LT3063IDCB#TRMPBF LT3063IDCB#TRMPBF LT3063IDCB#TRPBF LT3063IDCB#TRPBF LT3063IDCB-3.3#PBF LT3063IDCB-3.3#TRMPBF LT3063IDCB-3.3#TRMPBF LT3063IDCB-3.3#TRPBF LT3063IDCB-3.3#TRPBF LT3063IDCB-5#PBF LT3063IDCB-5#TRMPBF LT3063IDCB-5#TRMPBF LT3063IDCB-5#TRPBF LT3063IDCB-5#TRPBF LT3063IMS8E#PBF LT3063IMS8E#PBF LT3063IMS8E#TRPBF LT3063IMS8E#TRPBF LT3063IMS8E-3.3#PBF LT3063IMS8E-3.3#PBF LT3063IMS8E-3.3#TRPBF LT3063IMS8E-3.3#TRPBF LT3063IMS8E-5#PBF LT3063IMS8E-5#PBF LT3063IMS8E-5#TRPBF LT3063IMS8E-5#TRPBF LT3063MPDCB LT3063MPDCB#PBF LT3063MPDCB#TR LT3063MPDCB#TRM LT3063MPDCB#TRMPBF LT3063MPDCB#TRMPBF LT3063MPDCB#TRPBF LT3063MPDCB#TRPBF LT3063MPMS8E#PBF LT3063MPMS8E#PBF LT3063MPMS8E#TRPBF LT3063MPMS8E#TRPBF
Text Version of Document
LT3063 Series

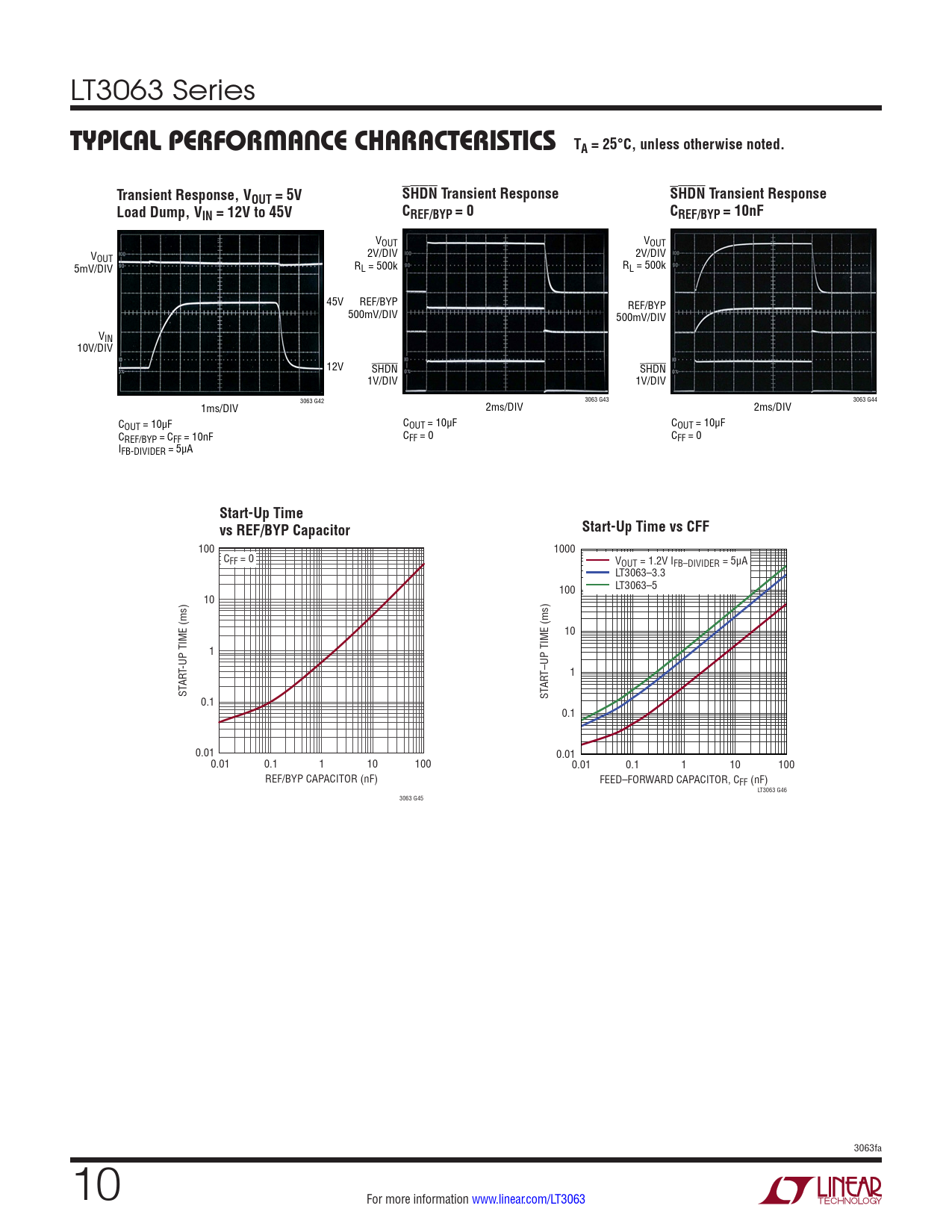

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Transient Response, V SHDN Transient Response SHDN Transient Response OUT = 5V Load Dump, V C IN = 12V to 45V REF/BYP = 0 CREF/BYP = 10nF
