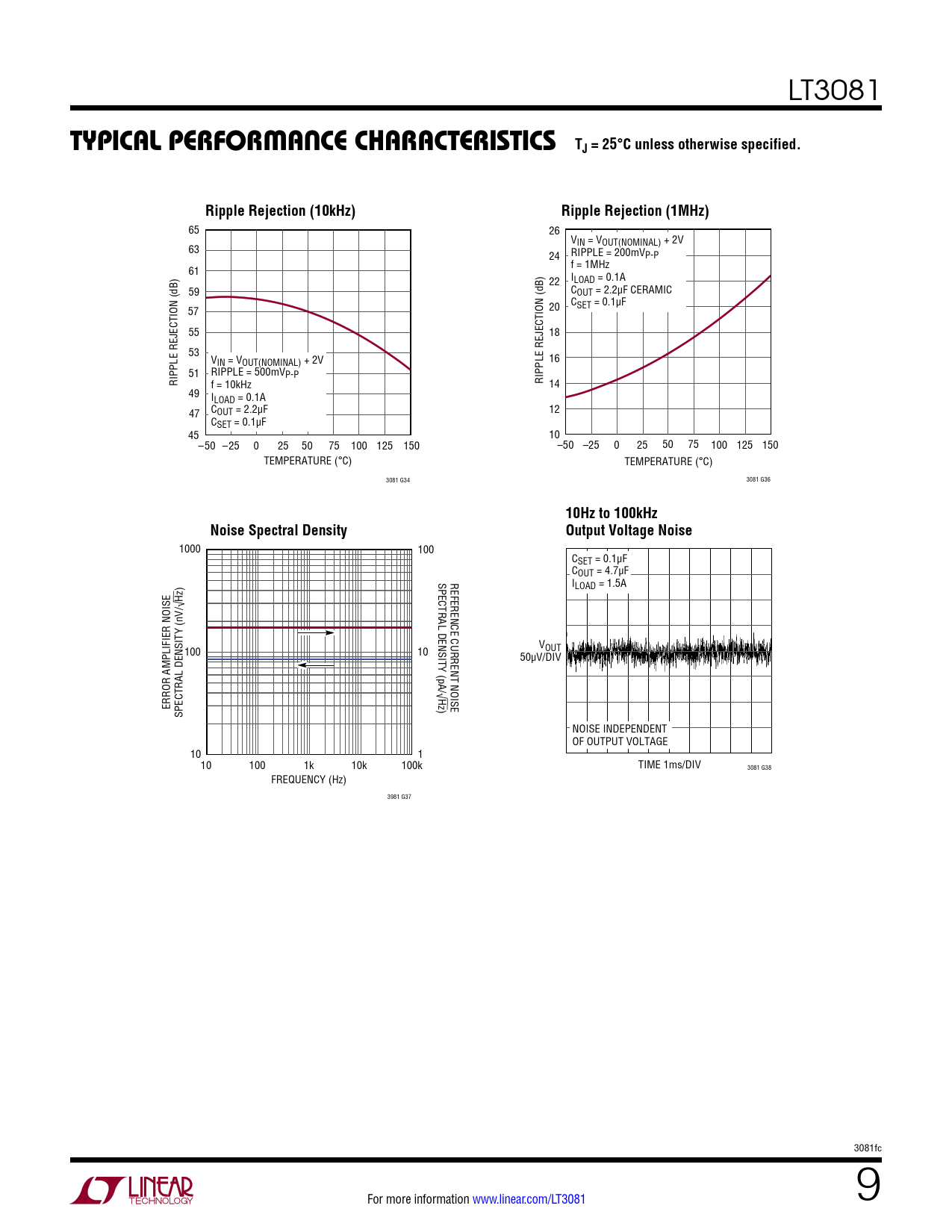

Typical perForMance characTerisTics TJ = 25°C unless otherwise specified. Ripple Rejection (10kHz). Ripple Rejection (1MHz)
