LT3086

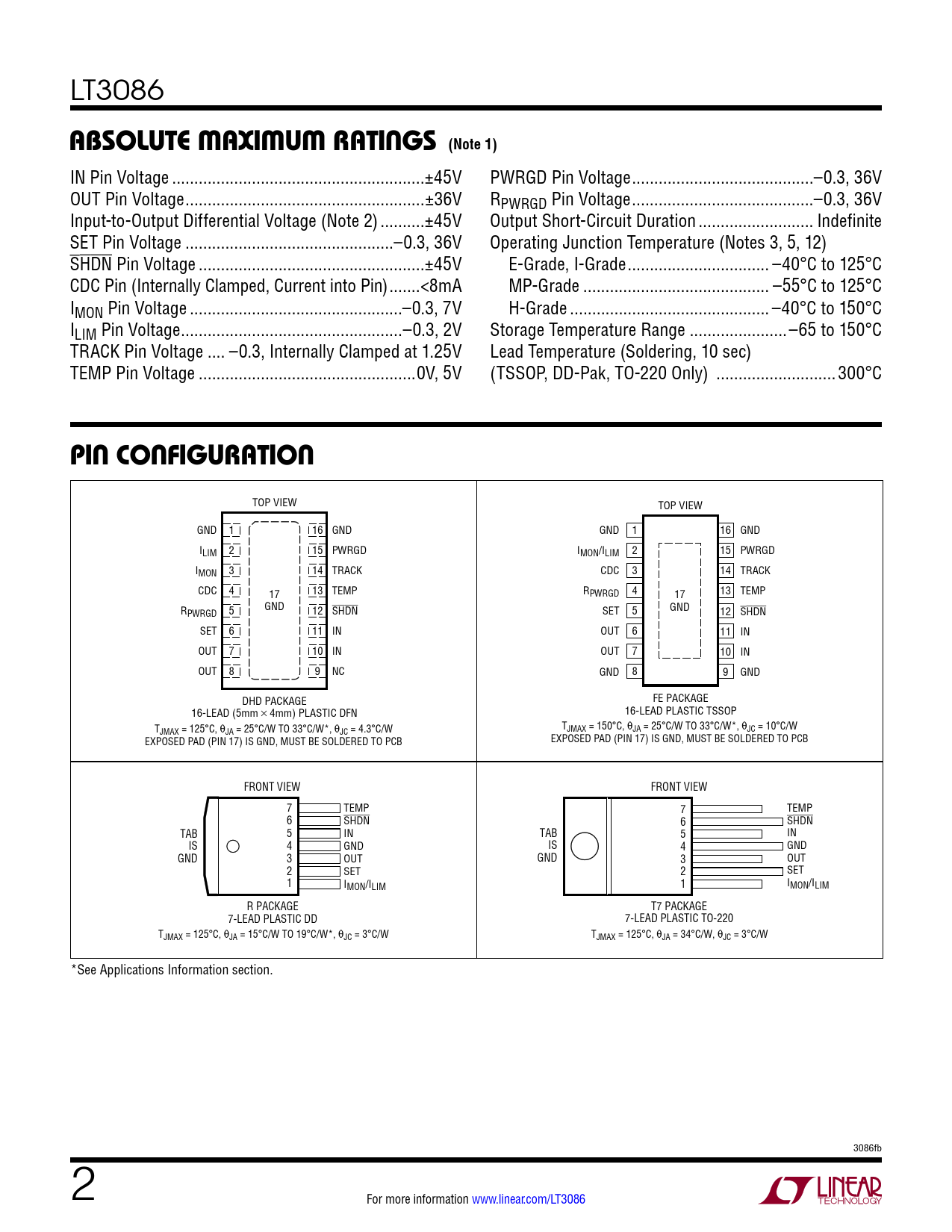

absoluTe MaxiMuM raTings (Note 1)
IN Pin Voltage ...±45V PWRGD Pin Voltage ...–0.3, 36V OUT Pin Voltage ..±36V RPWRGD Pin Voltage ...–0.3, 36V Input-to-Output Differential Voltage (Note 2) ..±45V Output Short-Circuit Duration .. Indefinite SET Pin Voltage ...–0.3, 36V Operating Junction Temperature (Notes 3, 5, 12) SHDN Pin Voltage ...±45V E-Grade, I-Grade .. –40°C to 125°C CDC Pin (Internally Clamped, Current into Pin) ...<8mA MP-Grade .. –55°C to 125°C IMON Pin Voltage ..–0.3, 7V H-Grade ... –40°C to 150°C ILIM Pin Voltage ..–0.3, 2V Storage Temperature Range ..–65 to 150°C TRACK Pin Voltage .. –0.3, Internally Clamped at 1.25V Lead Temperature (Soldering, 10 sec) TEMP Pin Voltage ...0V, 5V (TSSOP, DD-Pak, TO-220 Only) ...300°C
pin conFiguraTion
TOP VIEW TOP VIEW GND 1 16 GND GND 1 16 GND ILIM 2 15 PWRGD IMON/ILIM 2 15 PWRGD IMON 3 14 TRACK CDC 3 14 TRACK CDC 4 13 17 TEMP RPWRGD 4 13 TEMP 17 GND R GND PWRGD 5 12 SHDN SET 5 12 SHDN SET 6 11 IN OUT 6 11 IN OUT 7 10 IN OUT 7 10 IN OUT 8 9 NC GND 8 9 GND DHD PACKAGE FE PACKAGE 16-LEAD (5mm × 4mm) PLASTIC DFN 16-LEAD PLASTIC TSSOP T T JMAX = 125°C, θJA = 25°C/W TO 33°C/W*, θJC = 4.3°C/W JMAX = 150°C, θJA = 25°C/W TO 33°C/W*, θJC = 10°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB FRONT VIEW FRONT VIEW 7 TEMP 7 TEMP 6 SHDN 6 SHDN TAB 5 IN TAB 5 IN IS 4 GND IS 4 GND GND 3 OUT GND 3 OUT 2 SET 2 SET 1 IMON/ILIM 1 IMON/ILIM R PACKAGE T7 PACKAGE 7-LEAD PLASTIC DD 7-LEAD PLASTIC TO-220 TJMAX = 125°C, θJA = 15°C/W TO 19°C/W*, θJC = 3°C/W TJMAX = 125°C, θJA = 34°C/W, θJC = 3°C/W *See Applications Information section. 3086fb 2 For more information www.linear.com/LT3086 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
