Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. GND Pin Current vs ILOAD
Model Line for this Datasheet
- LT3086EDHD#PBF LT3086EDHD#PBF LT3086EDHD#TRPBF LT3086EDHD#TRPBF LT3086EFE#PBF LT3086EFE#PBF LT3086EFE#TRPBF LT3086EFE#TRPBF LT3086ER#PBF LT3086ER#PBF LT3086ER#TRPBF LT3086ER#TRPBF LT3086ET7#PBF LT3086ET7#PBF LT3086HFE#PBF LT3086HFE#PBF LT3086HFE#TRPBF LT3086HFE#TRPBF LT3086IDHD#PBF LT3086IDHD#PBF LT3086IDHD#TRPBF LT3086IDHD#TRPBF LT3086IFE#PBF LT3086IFE#PBF LT3086IFE#TRPBF LT3086IFE#TRPBF LT3086IR#PBF LT3086IR#PBF LT3086IR#TRPBF LT3086IR#TRPBF LT3086IT7#PBF LT3086IT7#PBF LT3086MPFE#PBF LT3086MPFE#PBF LT3086MPFE#TRPBF LT3086MPFE#TRPBF LT3086MPR#PBF LT3086MPR#PBF LT3086MPR#TRPBF LT3086MPR#TRPBF LT3086MPT7#PBF LT3086MPT7#PBF
Text Version of Document
LT3086

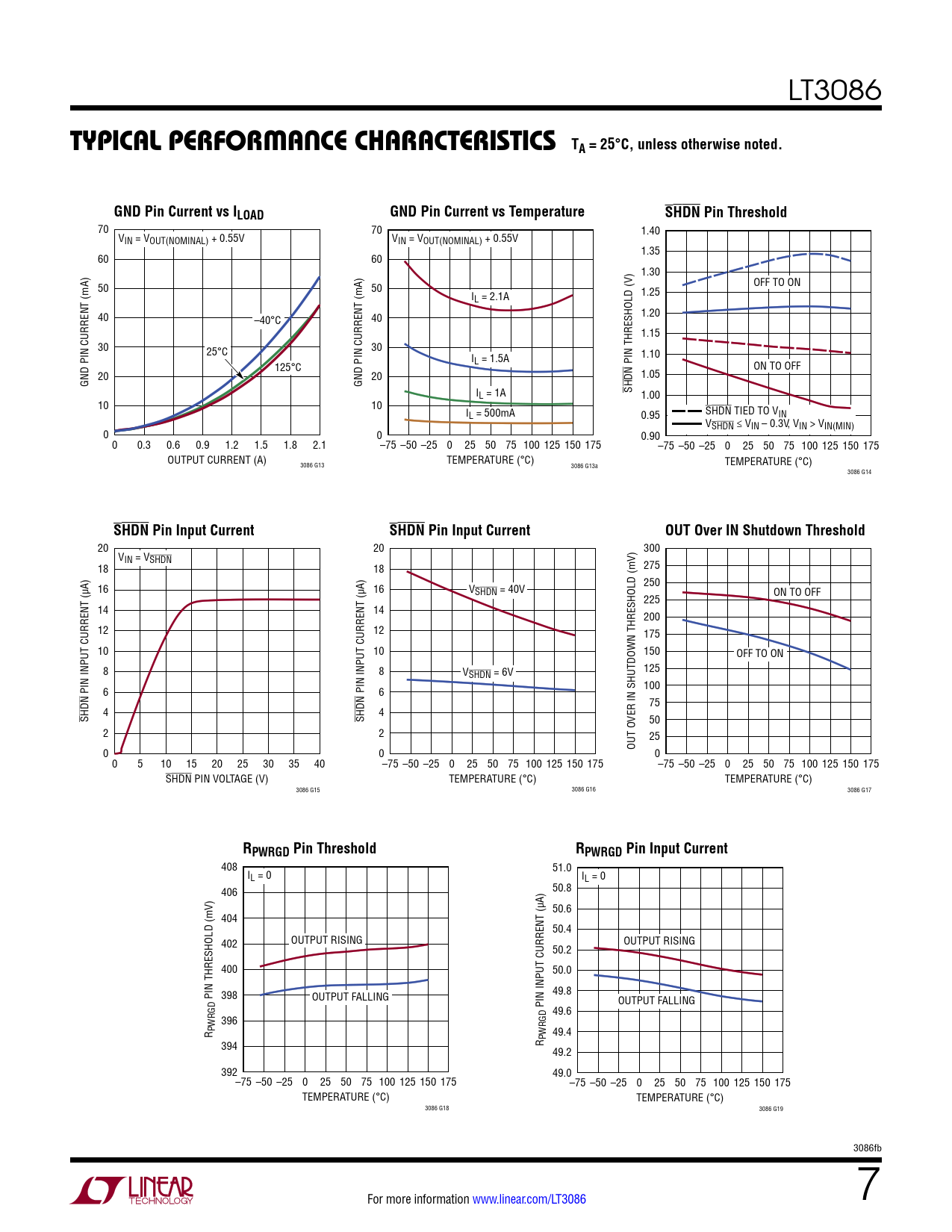

Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. GND Pin Current vs ILOAD GND Pin Current vs Temperature SHDN Pin Threshold
