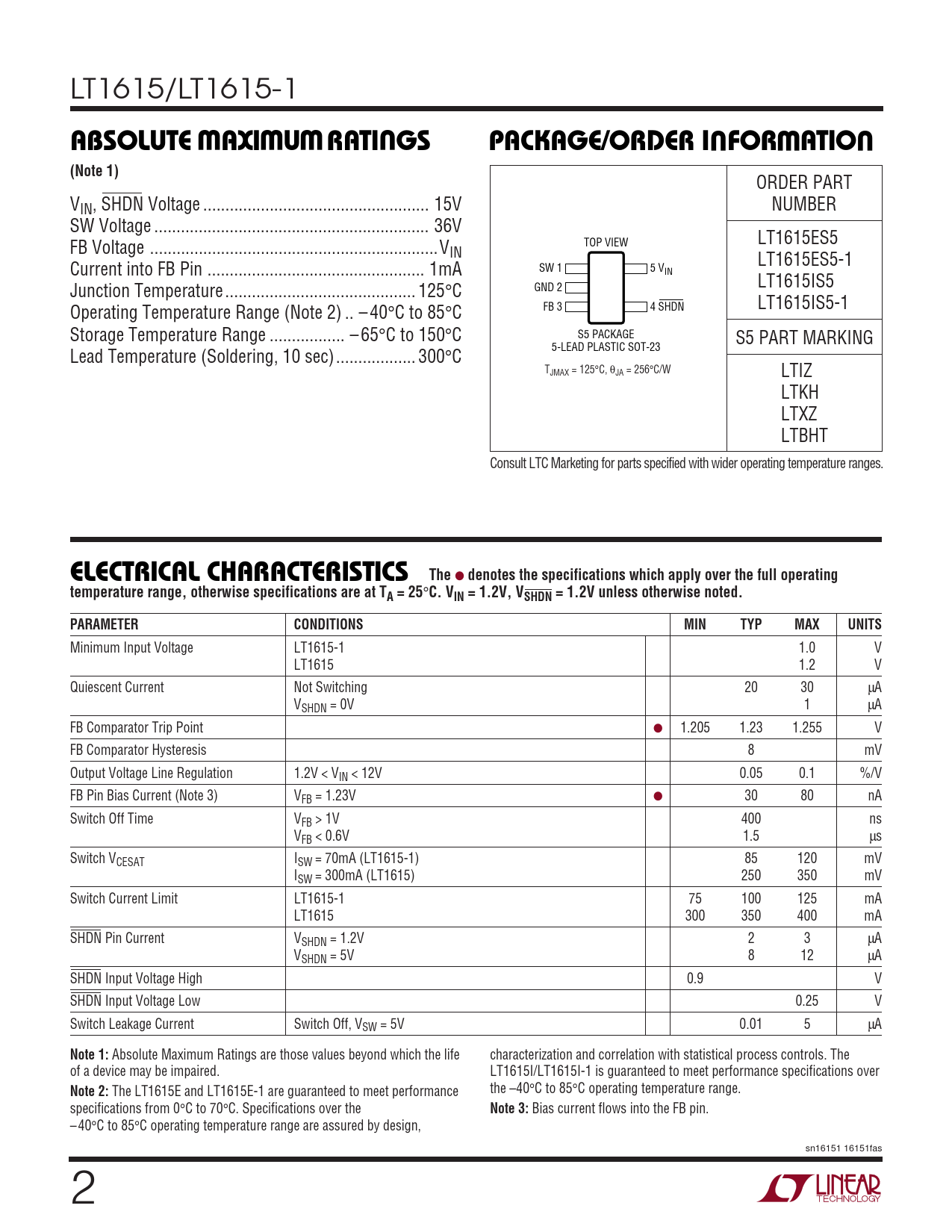

LT1615/LT1615-1
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
ORDER PART VIN, SHDN Voltage ... 15V NUMBER SW Voltage .. 36V TOP VIEW LT1615ES5 FB Voltage ...VIN LT1615ES5-1 Current into FB Pin ... 1mA SW 1 5 VIN LT1615IS5 Junction Temperature ... 125°C GND 2 FB 3 4 SHDN LT1615IS5-1 Operating Temperature Range (Note 2) .. – 40°C to 85°C Storage Temperature Range ... – 65°C to 150°C S5 PACKAGE S5 PART MARKING 5-LEAD PLASTIC SOT-23 Lead Temperature (Soldering, 10 sec).. 300°C TJMAX = 125°C, θJA = 256°C/W LTIZ LTKH LTXZ LTBHT Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VIN = 1.2V, VSHDN = 1.2V unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage LT1615-1 1.0 V LT1615 1.2 V Quiescent Current Not Switching 20 30 µA VSHDN = 0V 1 µA FB Comparator Trip Point ● 1.205 1.23 1.255 V FB Comparator Hysteresis 8 mV Output Voltage Line Regulation 1.2V < VIN < 12V 0.05 0.1 %/V FB Pin Bias Current (Note 3) VFB = 1.23V ● 30 80 nA Switch Off Time VFB > 1V 400 ns VFB < 0.6V 1.5 µs Switch VCESAT ISW = 70mA (LT1615-1) 85 120 mV ISW = 300mA (LT1615) 250 350 mV Switch Current Limit LT1615-1 75 100 125 mA LT1615 300 350 400 mA SHDN Pin Current VSHDN = 1.2V 2 3 µA VSHDN = 5V 8 12 µA SHDN Input Voltage High 0.9 V SHDN Input Voltage Low 0.25 V Switch Leakage Current Switch Off, VSW = 5V 0.01 5 µA
Note 1:
Absolute Maximum Ratings are those values beyond which the life characterization and correlation with statistical process controls. The of a device may be impaired. LT1615I/LT1615I-1 is guaranteed to meet performance specifications over
Note 2:
The LT1615E and LT1615E-1 are guaranteed to meet performance the –40°C to 85°C operating temperature range. specifications from 0°C to 70°C. Specifications over the
Note 3:
Bias current flows into the FB pin. – 40°C to 85°C operating temperature range are assured by design, sn16151 16151fas 2
