Datasheet LT3477 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 3A, DC/DC Converter with Dual Rail-to-Rail Current Sense |
| Pages / Page | 22 / 7 — blocK DiagraM. Figure 1. LT3477 Block Diagram |
| File Format / Size | PDF / 585 Kb |
| Document Language | English |

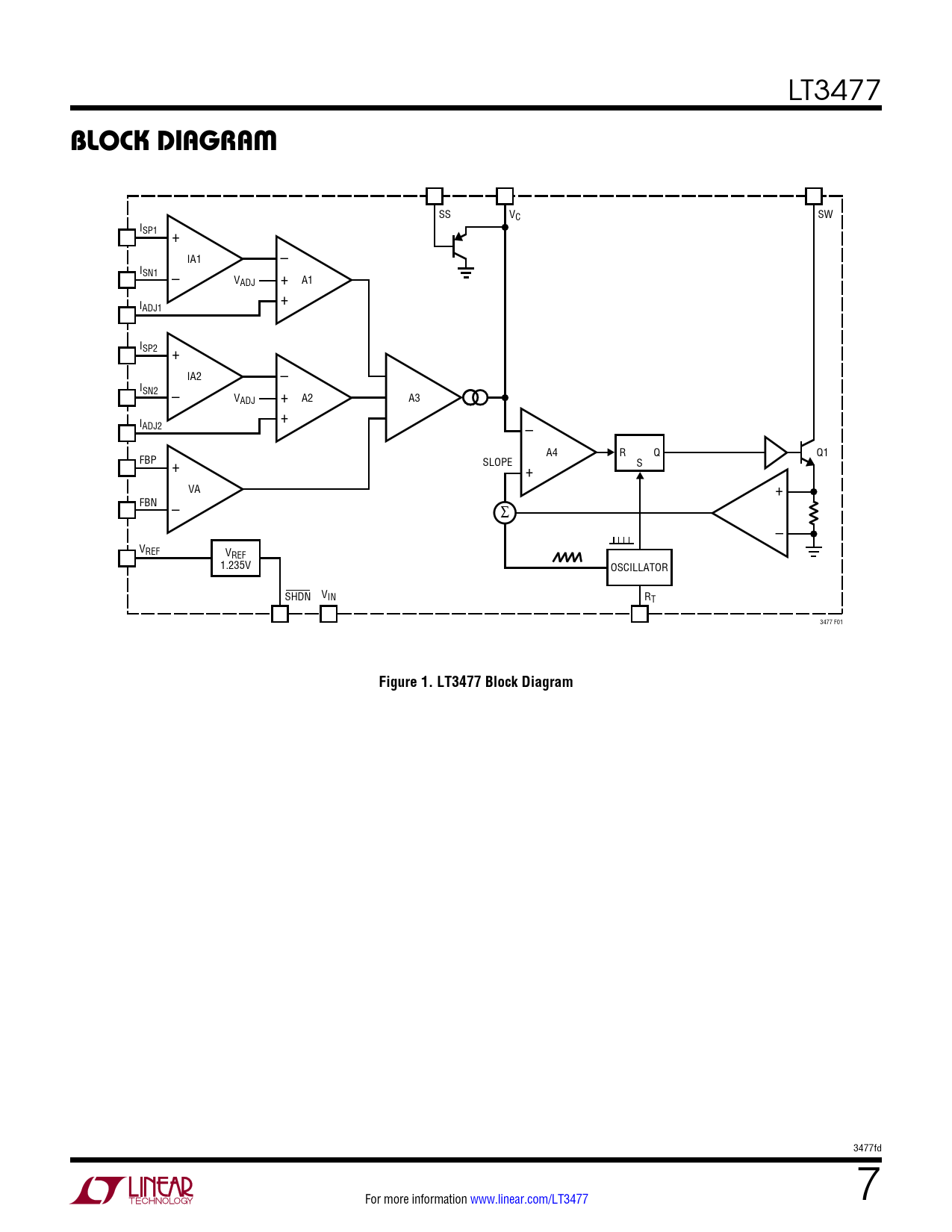

blocK DiagraM. Figure 1. LT3477 Block Diagram
Model Line for this Datasheet
Text Version of Document
LT3477
blocK DiagraM
SS VC SW ISP1 + IA1 – ISN1 – VADJ + A1 + IADJ1 ISP2 + IA2 – ISN2 – VADJ + A2 A3 I + ADJ2 – A4 R Q Q1 FBP SLOPE + + S + VA FBN – ∑ – VREF VREF 1.235V OSCILLATOR SHDN VIN RT 3477 F01
Figure 1. LT3477 Block Diagram
