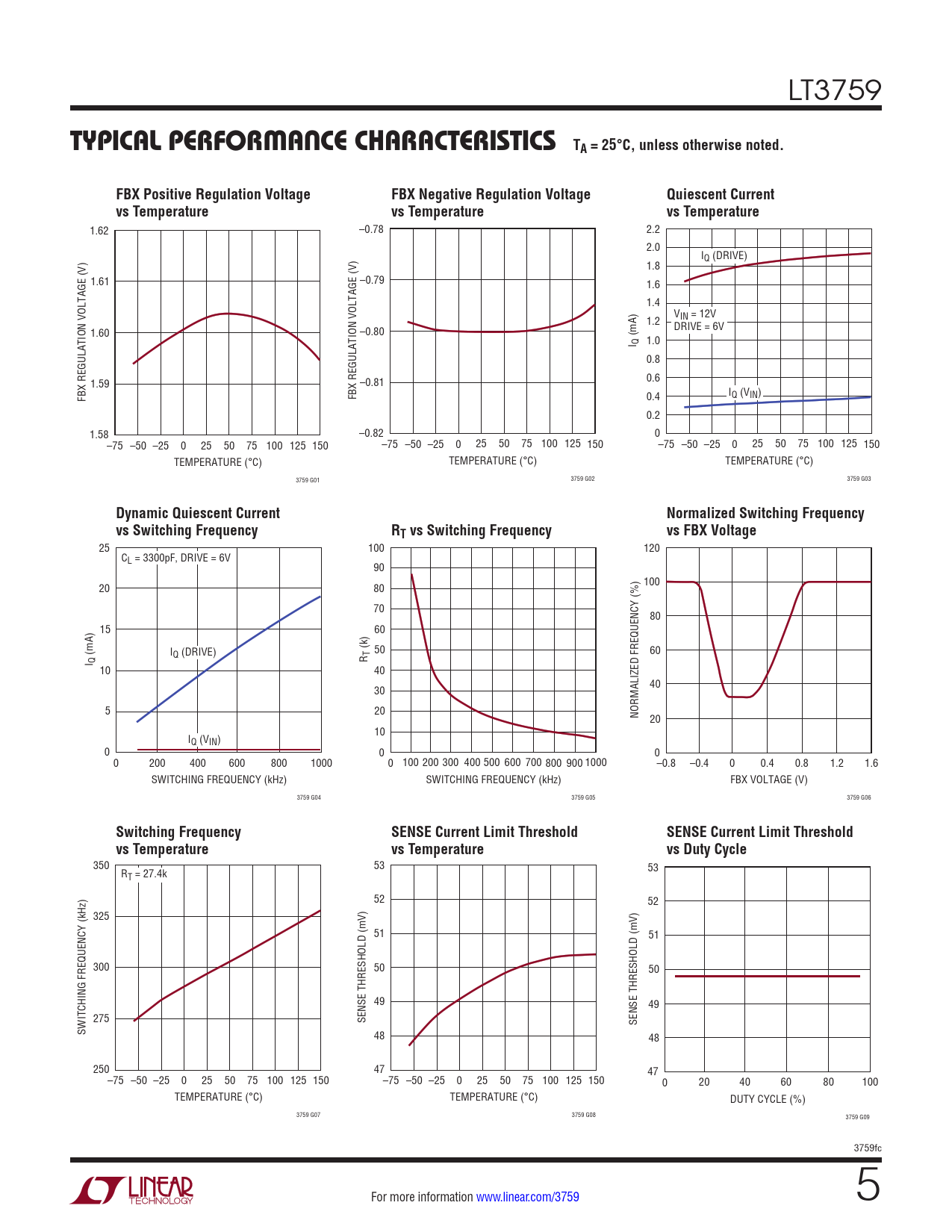

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. FBX Positive Regulation Voltage
