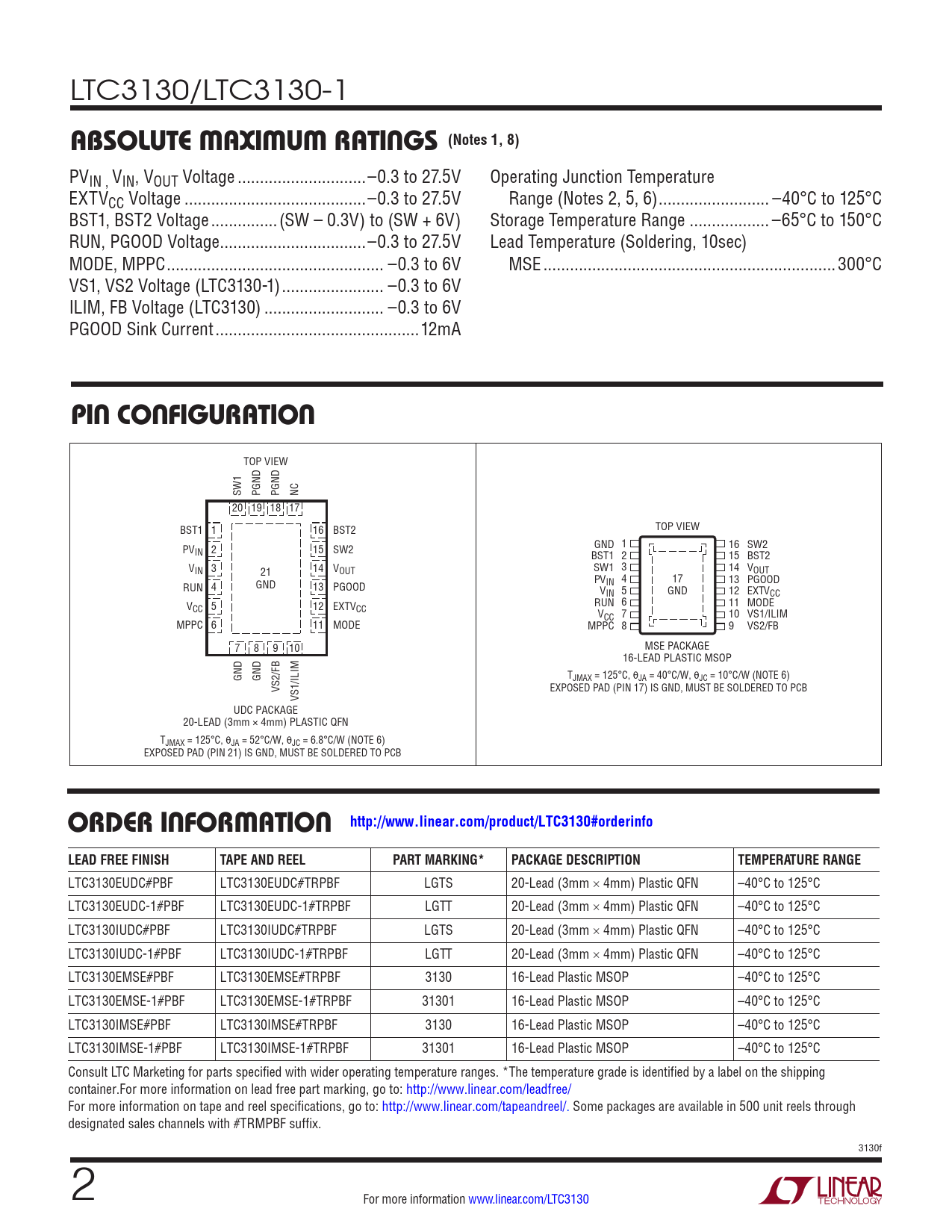

LTC3130/LTC3130-1
ABSOLUTE MAXIMUM RATINGS (Notes 1, 8)
PVIN , VIN, VOUT Voltage ...–0.3 to 27.5V Operating Junction Temperature EXTVCC Voltage ...–0.3 to 27.5V Range (Notes 2, 5, 6) ... –40°C to 125°C BST1, BST2 Voltage ...(SW – 0.3V) to (SW + 6V) Storage Temperature Range .. –65°C to 150°C RUN, PGOOD Voltage ...–0.3 to 27.5V Lead Temperature (Soldering, 10sec) MODE, MPPC ... –0.3 to 6V MSE ..300°C VS1, VS2 Voltage (LTC3130-1) ... –0.3 to 6V ILIM, FB Voltage (LTC3130) ... –0.3 to 6V PGOOD Sink Current ..12mA
PIN CONFIGURATION
TOP VIEW SW1 PGND PGND NC 20 19 18 17 BST1 1 16 BST2 TOP VIEW PV GND 1 16 SW2 IN 2 15 SW2 BST1 2 15 BST2 VIN 3 21 14 VOUT SW1 3 14 VOUT GND PV 4 17 13 PGOOD RUN 4 13 PGOOD IN V 5 IN GND 12 EXTVCC V RUN 6 11 MODE CC 5 12 EXTVCC V 7 CC 10 VS1/ILIM MPPC 6 11 MODE MPPC 8 9 VS2/FB 7 8 9 10 MSE PACKAGE 16-LEAD PLASTIC MSOP GND GND TJMAX = 125°C, θJA = 40°C/W, θJC = 10°C/W (NOTE 6) VS2/FB EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB VS1/ILIM UDC PACKAGE 20-LEAD (3mm × 4mm) PLASTIC QFN TJMAX = 125°C, θJA = 52°C/W, θJC = 6.8°C/W (NOTE 6) EXPOSED PAD (PIN 21) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION http://www.linear.com/product/LTC3130#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3130EUDC#PBF LTC3130EUDC#TRPBF LGTS 20-Lead (3mm × 4mm) Plastic QFN –40°C to 125°C LTC3130EUDC-1#PBF LTC3130EUDC-1#TRPBF LGTT 20-Lead (3mm × 4mm) Plastic QFN –40°C to 125°C LTC3130IUDC#PBF LTC3130IUDC#TRPBF LGTS 20-Lead (3mm × 4mm) Plastic QFN –40°C to 125°C LTC3130IUDC-1#PBF LTC3130IUDC-1#TRPBF LGTT 20-Lead (3mm × 4mm) Plastic QFN –40°C to 125°C LTC3130EMSE#PBF LTC3130EMSE#TRPBF 3130 16-Lead Plastic MSOP –40°C to 125°C LTC3130EMSE-1#PBF LTC3130EMSE-1#TRPBF 31301 16-Lead Plastic MSOP –40°C to 125°C LTC3130IMSE#PBF LTC3130IMSE#TRPBF 3130 16-Lead Plastic MSOP –40°C to 125°C LTC3130IMSE-1#PBF LTC3130IMSE-1#TRPBF 31301 16-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container.For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 3130f 2 For more information www.linear.com/LTC3130 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Typical Performance Characteristics Pin Functions LTC3130 Block Diagram LTC3130-1 Block Diagram Operation Applications Information Package Description Typical Application Related Parts
