Datasheet LTC3400-1 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 600mA, 1.2MHz Micropower Synchronous Boost Converter in ThinSOT |
| Pages / Page | 12 / 8 — TYPICAL APPLICATIO S. Single Cell to 3.3V Synchronous Boost Converter. … |
| File Format / Size | PDF / 302 Kb |
| Document Language | English |
TYPICAL APPLICATIO S. Single Cell to 3.3V Synchronous Boost Converter. with Load Disconnect in Shutdown
Model Line for this Datasheet
Text Version of Document
LTC3400-1

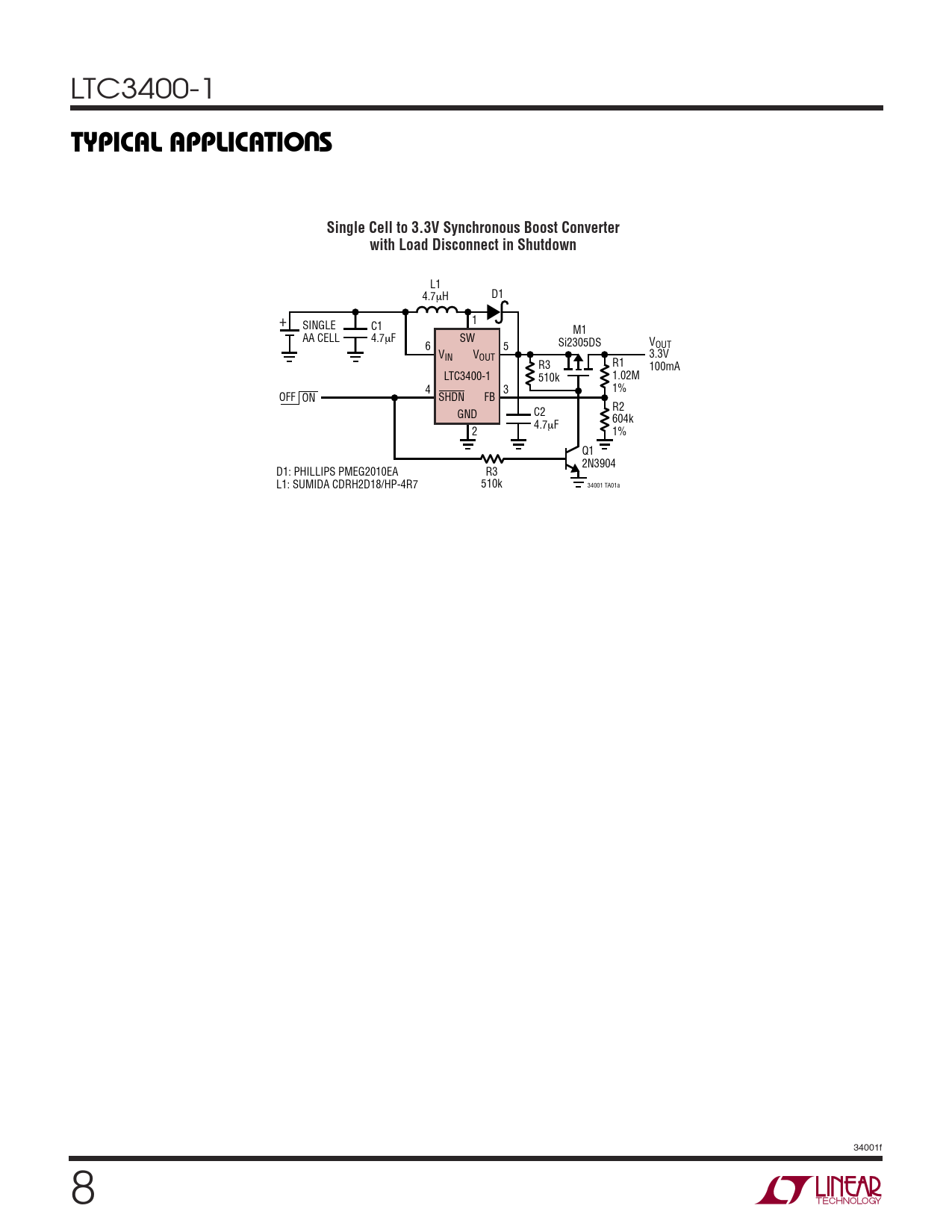

U TYPICAL APPLICATIO S Single Cell to 3.3V Synchronous Boost Converter with Load Disconnect in Shutdown
L1 4.7µH D1 1 + SINGLE C1 M1 AA CELL 4.7µF SW Si2305DS VOUT 6 5 V V IN OUT 3.3V R1 R3 100mA LTC3400-1 1.02M 510k 4 3 1% OFF ON SHDN FB R2 GND C2 604k 4.7µF 2 1% Q1 2N3904 D1: PHILLIPS PMEG2010EA R3 L1: SUMIDA CDRH2D18/HP-4R7 510k 34001 TA01a 34001f 8
U TYPICAL APPLICATIO S Single Cell to 3.3V Synchronous Boost Converter with Load Disconnect in Shutdown
L1 4.7µH D1 1 + SINGLE C1 M1 AA CELL 4.7µF SW Si2305DS VOUT 6 5 V V IN OUT 3.3V R1 R3 100mA LTC3400-1 1.02M 510k 4 3 1% OFF ON SHDN FB R2 GND C2 604k 4.7µF 2 1% Q1 2N3904 D1: PHILLIPS PMEG2010EA R3 L1: SUMIDA CDRH2D18/HP-4R7 510k 34001 TA01a 34001f 8
