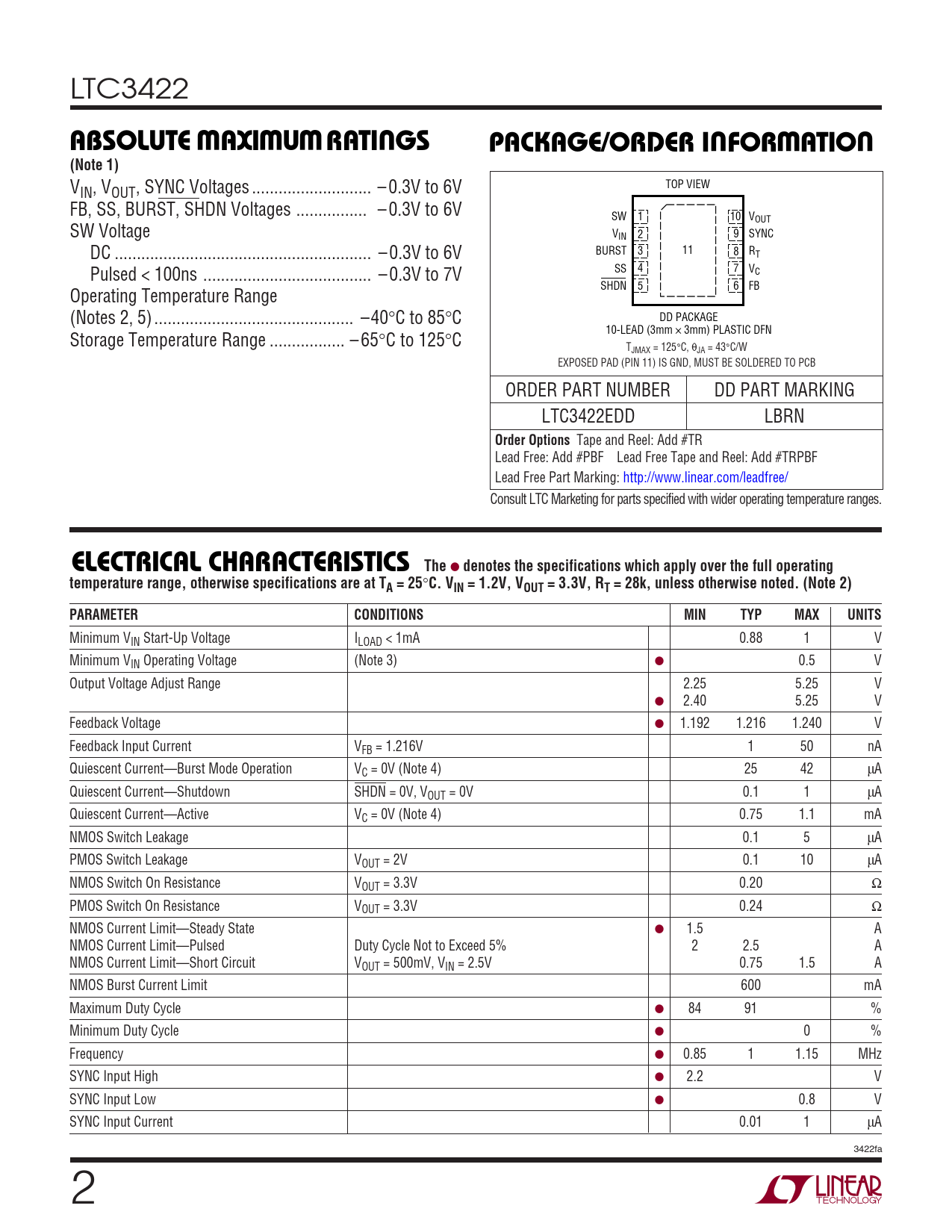

ABSOLUTE AXI U. RATI GS. PACKAGE/ORDER I FOR ATIO. (Note 1). Order Options. ELECTRICAL CHARACTERISTICS The
Model Line for this Datasheet
Text Version of Document
LTC3422
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
V TOP VIEW IN, VOUT, SYNC Voltages ... – 0.3V to 6V FB, SS, BURST, SHDN Voltages .. – 0.3V to 6V SW 1 10 VOUT SW Voltage V 2 9 SYNC IN DC .. – 0.3V to 6V BURST 3 11 8 RT Pulsed < 100ns .. – 0.3V to 7V SS 4 7 VC SHDN 5 6 FB Operating Temperature Range (Notes 2, 5) ... –40°C to 85°C DD PACKAGE 10-LEAD (3mm × 3mm) PLASTIC DFN Storage Temperature Range ... – 65°C to 125°C TJMAX = 125°C, θJA = 43°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB ORDER PART NUMBER DD PART MARKING LTC3422EDD LBRN
