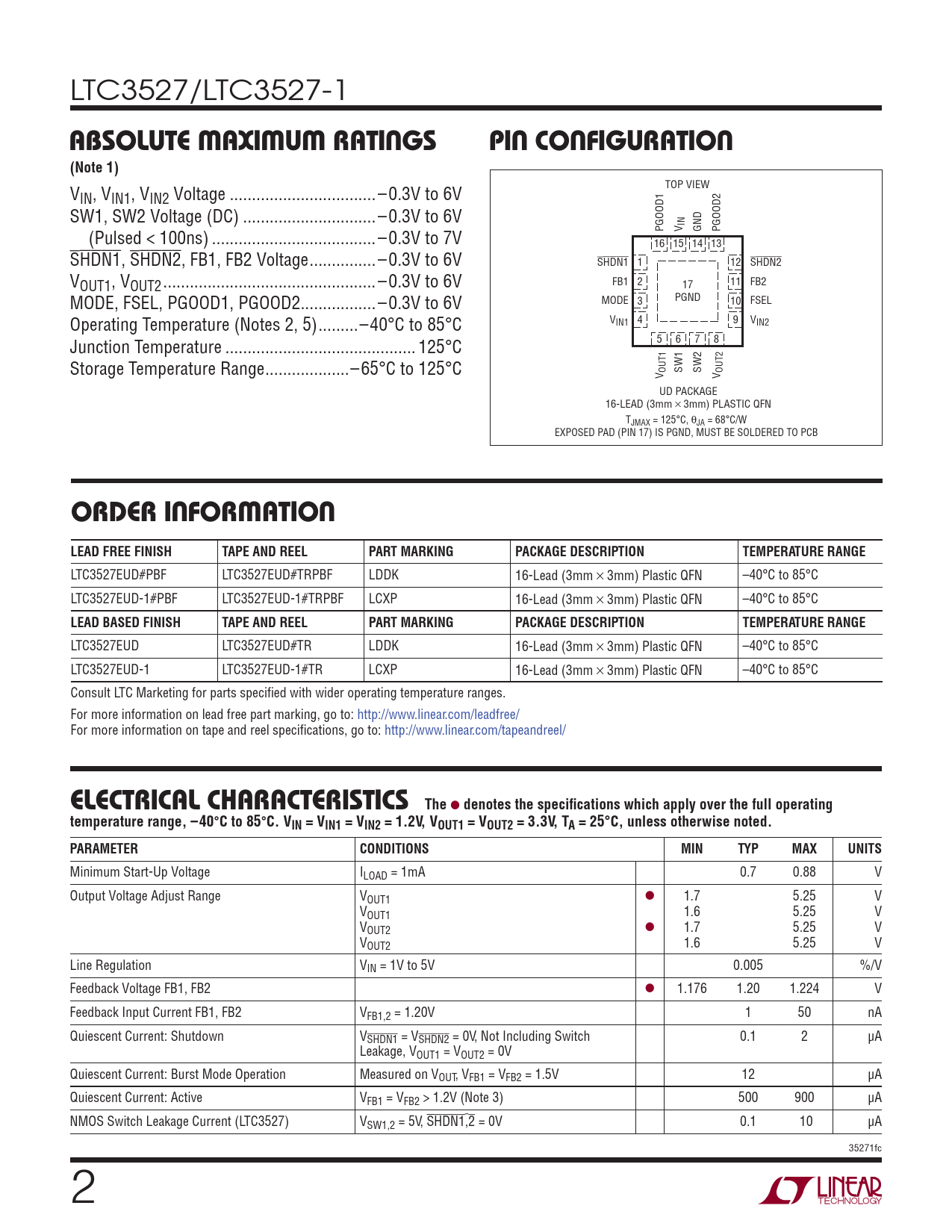

LTC3527/LTC3527-1
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
TOP VIEW VIN, VIN1, VIN2 Voltage ...–0.3V to 6V SW1, SW2 Voltage (DC) .. –0.3V to 6V IN PGOOD1 V GND PGOOD2 (Pulsed < 100ns) ... –0.3V to 7V 16 15 14 13 SHDN1, SHDN2, FB1, FB2 Voltage ...–0.3V to 6V SHDN1 1 12 SHDN2 VOUT1, VOUT2 ..–0.3V to 6V FB1 2 17 11 FB2 MODE, FSEL, PGOOD1, PGOOD2 ... –0.3V to 6V PGND MODE 3 10 FSEL Operating Temperature (Notes 2, 5) ...–40°C to 85°C VIN1 4 9 VIN2 Junction Temperature ... 125°C 5 6 7 8 Storage Temperature Range ...–65°C to 125°C OUT1 SW1 SW2 OUT2 V V UD PACKAGE 16-LEAD (3mm s 3mm) PLASTIC QFN TJMAX = 125°C, θJA = 68°C/W EXPOSED PAD (PIN 17) IS PGND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3527EUD#PBF LTC3527EUD#TRPBF LDDK 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C LTC3527EUD-1#PBF LTC3527EUD-1#TRPBF LCXP 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3527EUD LTC3527EUD#TR LDDK 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C LTC3527EUD-1 LTC3527EUD-1#TR LCXP 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
