Datasheet LTC3731 (Analog Devices) - 3

ManufacturerAnalog Devices
Description3-Phase, 600kHz, Synchronous Buck Switching Regulator Controller
Pages / Page34 / 3 — ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING. PACKAGE …
File Format / SizePDF / 384 Kb
Document LanguageEnglish

ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING. PACKAGE DESCRIPTION. TEMPERATURE RANGE

ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE

Model Line for this Datasheet

Text Version of Document

LTC3731

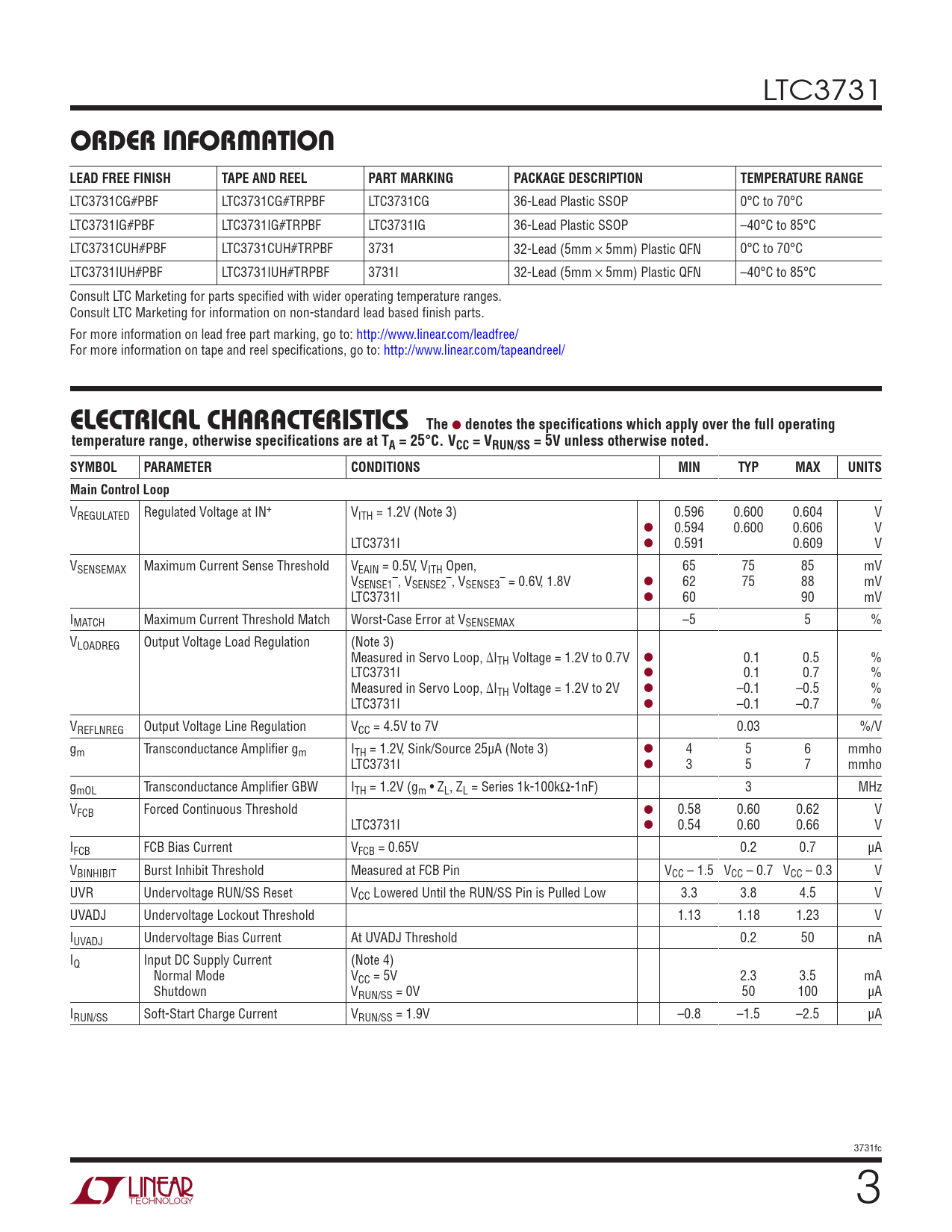

ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3731CG#PBF LTC3731CG#TRPBF LTC3731CG 36-Lead Plastic SSOP 0°C to 70°C LTC3731IG#PBF LTC3731IG#TRPBF LTC3731IG 36-Lead Plastic SSOP –40°C to 85°C LTC3731CUH#PBF LTC3731CUH#TRPBF 3731 32-Lead (5mm × 5mm) Plastic QFN 0°C to 70°C LTC3731IUH#PBF LTC3731IUH#TRPBF 3731I 32-Lead (5mm × 5mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VCC = VRUN/SS = 5V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Main Control Loop
