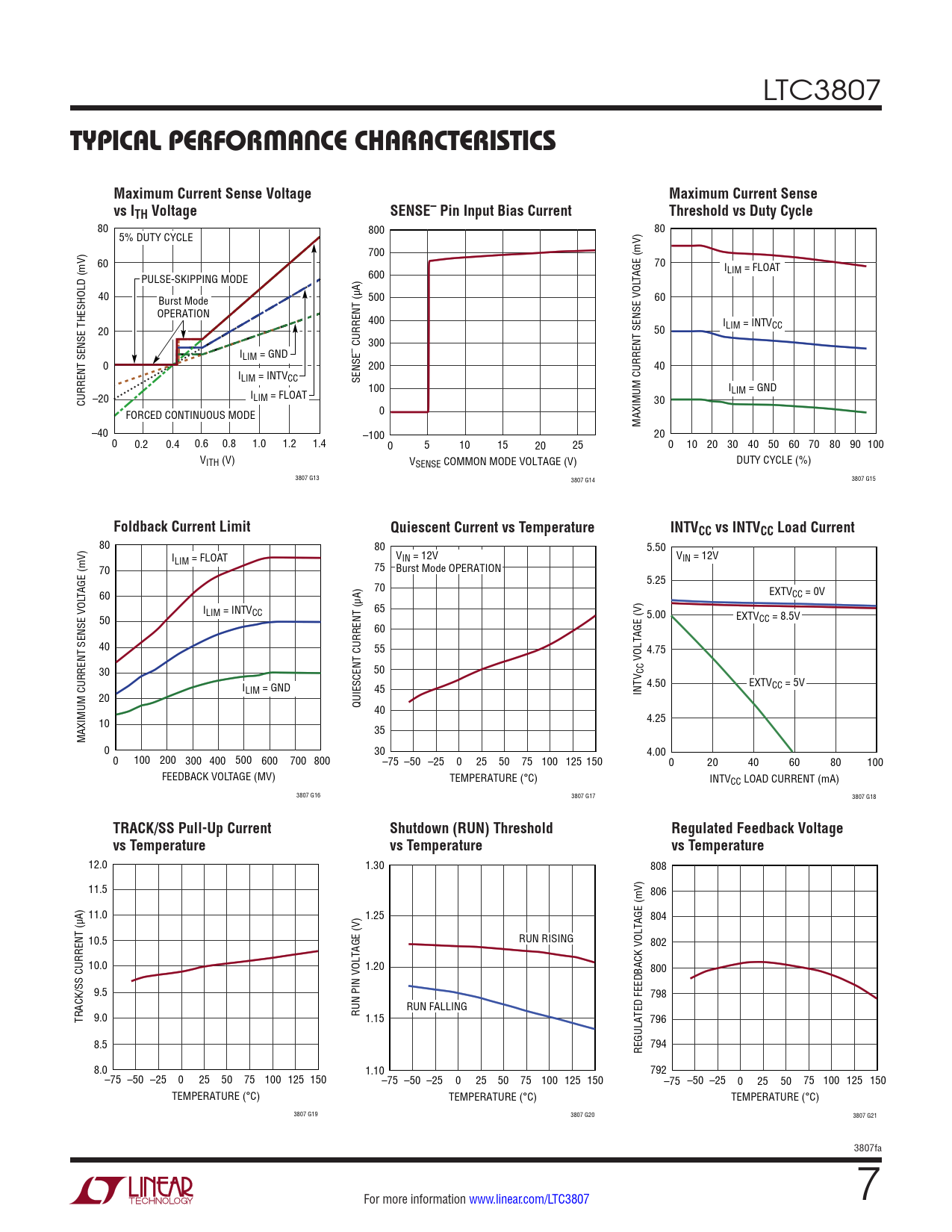

TYPICAL PERFORMANCE CHARACTERISTICS. Maximum Current Sense Voltage. Maximum Current Sense. vs ITH Voltage
