LTC2991

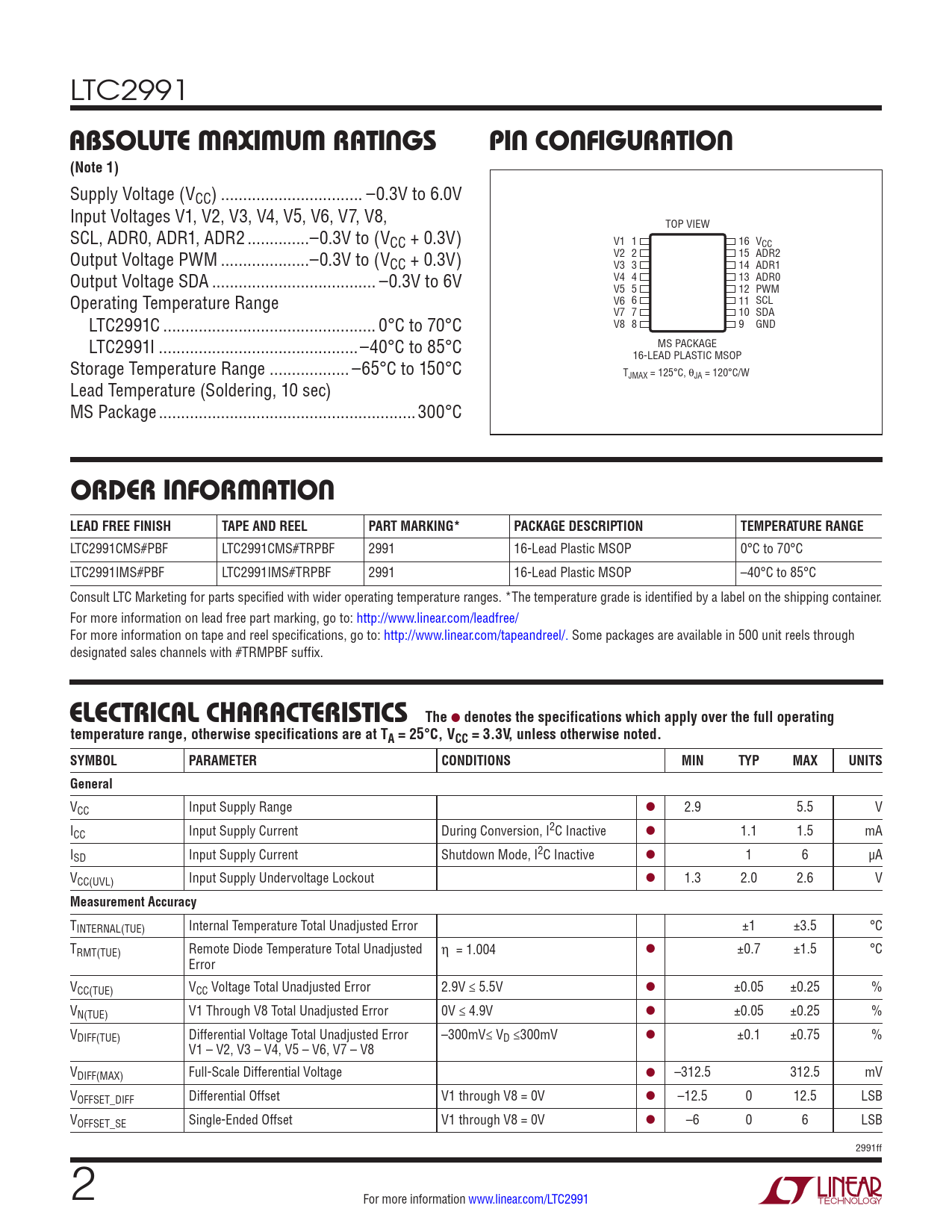

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage (VCC) .. –0.3V to 6.0V Input Voltages V1, V2, V3, V4, V5, V6, V7, V8, TOP VIEW SCL, ADR0, ADR1, ADR2 ..–0.3V to (VCC + 0.3V) V1 1 16 VCC Output Voltage PWM ..–0.3V to (V V2 2 15 ADR2 CC + 0.3V) V3 3 14 ADR1 Output Voltage SDA ... –0.3V to 6V V4 4 13 ADR0 V5 5 12 PWM Operating Temperature Range V6 6 11 SCL V7 7 10 SDA LTC2991C .. 0°C to 70°C V8 8 9 GND LTC2991I ...–40°C to 85°C MS PACKAGE 16-LEAD PLASTIC MSOP Storage Temperature Range .. –65°C to 150°C TJMAX = 125°C, θJA = 120°C/W Lead Temperature (Soldering, 10 sec) MS Package ..300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2991CMS#PBF LTC2991CMS#TRPBF 2991 16-Lead Plastic MSOP 0°C to 70°C LTC2991IMS#PBF LTC2991IMS#TRPBF 2991 16-Lead Plastic MSOP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VCC = 3.3V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS General
VCC Input Supply Range l 2.9 5.5 V ICC Input Supply Current During Conversion, I2C Inactive l 1.1 1.5 mA ISD Input Supply Current Shutdown Mode, I2C Inactive l 1 6 µA VCC(UVL) Input Supply Undervoltage Lockout l 1.3 2.0 2.6 V
