Datasheet LTM8045 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | Inverting or SEPIC μModule (Power Module) DC/DC Converter with Up to 700mA Output Current |
| Pages / Page | 22 / 4 — Typical perForMance characTerisTics. Efficiency. 2.5VOUT SEPIC. 3.3VOUT … |
| File Format / Size | PDF / 361 Kb |
| Document Language | English |

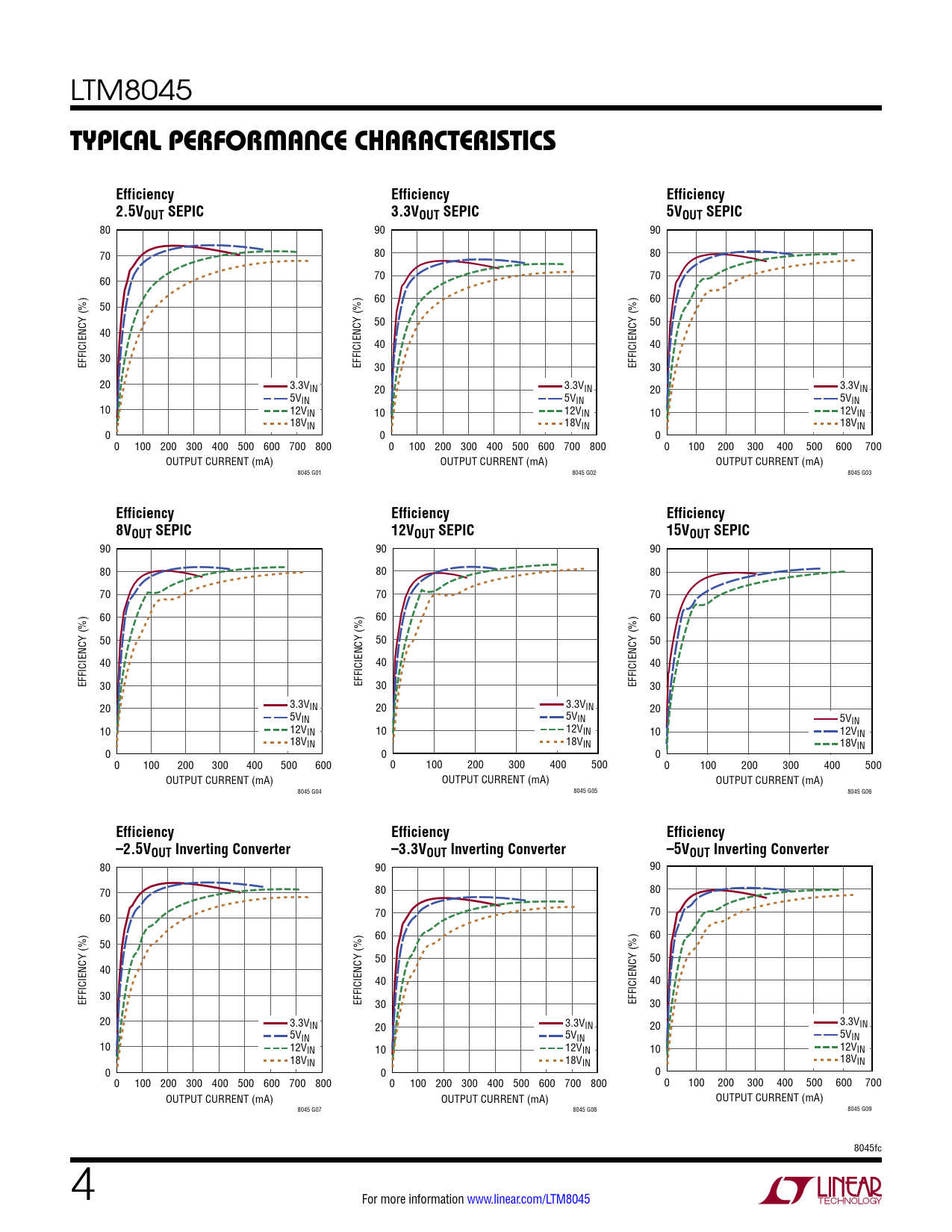

Typical perForMance characTerisTics. Efficiency. 2.5VOUT SEPIC. 3.3VOUT SEPIC. 5VOUT SEPIC. 8VOUT SEPIC. 12VOUT SEPIC. 15VOUT SEPIC
Model Line for this Datasheet
Text Version of Document
LTM8045
Typical perForMance characTerisTics Efficiency Efficiency Efficiency 2.5VOUT SEPIC 3.3VOUT SEPIC 5VOUT SEPIC
80 90 90 70 80 80 60 70 70 60 60 50 50 50 40 40 40 30 EFFICIENCY (%) EFFICIENCY (%) 30 EFFICIENCY (%) 30 20 3.3VIN 20 3.3VIN 20 3.3VIN 5VIN 5VIN 5VIN 10 12VIN 10 12VIN 10 12VIN 18VIN 18VIN 18VIN 0 0 0 0 100 200 300 400 500 600 700 800 0 100 200 300 400 500 600 700 800 0 100 200 300 400 500 600 700 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) 8045 G01 8045 G02 8045 G03
Efficiency Efficiency Efficiency 8VOUT SEPIC 12VOUT SEPIC 15VOUT SEPIC
90 90 90 80 80 80 70 70 70 60 60 60 50 50 50 40 40 40 EFFICIENCY (%) 30 EFFICIENCY (%) 30 EFFICIENCY (%) 30 20 3.3VIN 20 3.3VIN 20 5VIN 5VIN 5VIN 10 12VIN 10 12VIN 10 12VIN 18VIN 18VIN 18VIN 0 0 0 0 100 200 300 400 500 600 0 100 200 300 400 500 0 100 200 300 400 500 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) 8045 G04 8045 G05 8045 G06
Efficiency Efficiency Efficiency –2.5VOUT Inverting Converter –3.3VOUT Inverting Converter –5VOUT Inverting Converter
80 90 90 70 80 80 60 70 70 60 60 50 50 50 40 40 40 30 EFFICIENCY (%) EFFICIENCY (%) 30 EFFICIENCY (%) 30 20 3.3VIN 20 3.3VIN 20 3.3VIN 5VIN 5VIN 5VIN 10 12VIN 10 12VIN 10 12VIN 18VIN 18VIN 18VIN 0 0 0 0 100 200 300 400 500 600 700 800 0 100 200 300 400 500 600 700 800 0 100 200 300 400 500 600 700 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) 8045 G07 8045 G08 8045 G09 8045fc 4 For more information www.linear.com/LTM8045 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Photo Package Description Revision History Typical Application Related Parts
