Dual Differential 16-Bit, 1 MSPS. PulSAR ADC 12.0 mW in QSOP. Data Sheet. AD7903. FEATURES. GENERAL DESCRIPTION
Model Line for this Datasheet
Text Version of Document

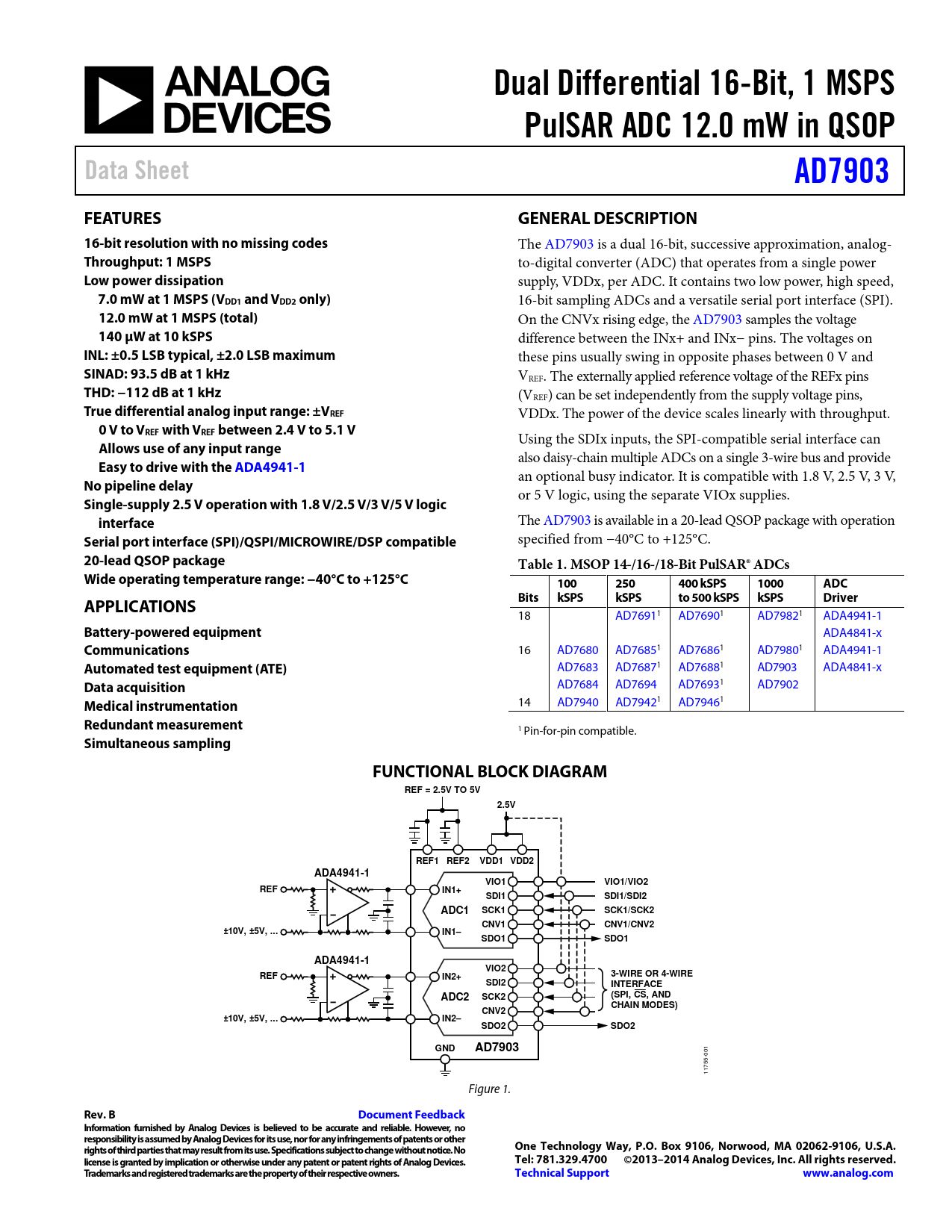

Dual Differential 16-Bit, 1 MSPS PulSAR ADC 12.0 mW in QSOP Data Sheet AD7903 FEATURES GENERAL DESCRIPTION 16-bit resolution with no missing codes
The AD7903 is a dual 16-bit, successive approximation, analog-
Throughput: 1 MSPS
to-digital converter (ADC) that operates from a single power
Low power dissipation
supply, VDDx, per ADC. It contains two low power, high speed,
7.0 mW at 1 MSPS (VDD1 and VDD2 only)
16-bit sampling ADCs and a versatile serial port interface (SPI).
12.0 mW at 1 MSPS (total)
On the CNVx rising edge, the AD7903 samples the voltage
140 µW at 10 kSPS
difference between the INx+ and INx− pins. The voltages on
INL: ±0.5 LSB typical, ±2.0 LSB maximum
these pins usually swing in opposite phases between 0 V and
SINAD: 93.5 dB at 1 kHz
VREF. The external y applied reference voltage of the REFx pins
THD: −112 dB at 1 kHz
(VREF) can be set independently from the supply voltage pins,
True differential analog input range: ±VREF
VDDx. The power of the device scales linearly with throughput.
0 V to VREF with VREF between 2.4 V to 5.1 V
Using the SDIx inputs, the SPI-compatible serial interface can
Allows use of any input range
also daisy-chain multiple ADCs on a single 3-wire bus and provide
Easy to drive with the ADA4941-1
an optional busy indicator. It is compatible with 1.8 V, 2.5 V, 3 V,
No pipeline delay
or 5 V logic, using the separate VIOx supplies.
Single-supply 2.5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface
The AD7903 is available in a 20-lead QSOP package with operation
Serial port interface (SPI)/QSPI/MICROWIRE/DSP compatible
specified from −40°C to +125°C.
20-lead QSOP package Table 1. MSOP 14-/16-/18-Bit PulSAR® ADCs Wide operating temperature range: −40°C to +125°C 100 250 400 kSPS 1000 ADC APPLICATIONS Bits kSPS kSPS to 500 kSPS kSPS Driver
18 AD76911 AD76901 AD79821 ADA4941-1
Battery-powered equipment
ADA4841-x
Communications
16 AD7680 AD76851 AD76861 AD79801 ADA4941-1
Automated test equipment (ATE)
AD7683 AD76871 AD76881 AD7903 ADA4841-x
Data acquisition
AD7684 AD7694 AD76931 AD7902
Medical instrumentation
14 AD7940 AD79421 AD79461
Redundant measurement
1 Pin-for-pin compatible.
Simultaneous sampling FUNCTIONAL BLOCK DIAGRAM REF = 2.5V TO 5V 2.5V REF1 REF2 VDD1 VDD2 ADA4941-1 VIO1 VIO1/VIO2 REF IN1+ SDI1 SDI1/SDI2 ADC1 SCK1 SCK1/SCK2 CNV1 CNV1/CNV2 ±10V, ±5V, ... IN1– SDO1 SDO1 ADA4941-1 VIO2 REF IN2+ 3-WIRE OR 4-WIRE SDI2 INTERFACE ADC2 SCK2 (SPI, CS, AND CHAIN MODES) CNV2 ±10V, ±5V, ... IN2– SDO2 SDO2 GND AD7903
001 11755- Figure 1.
