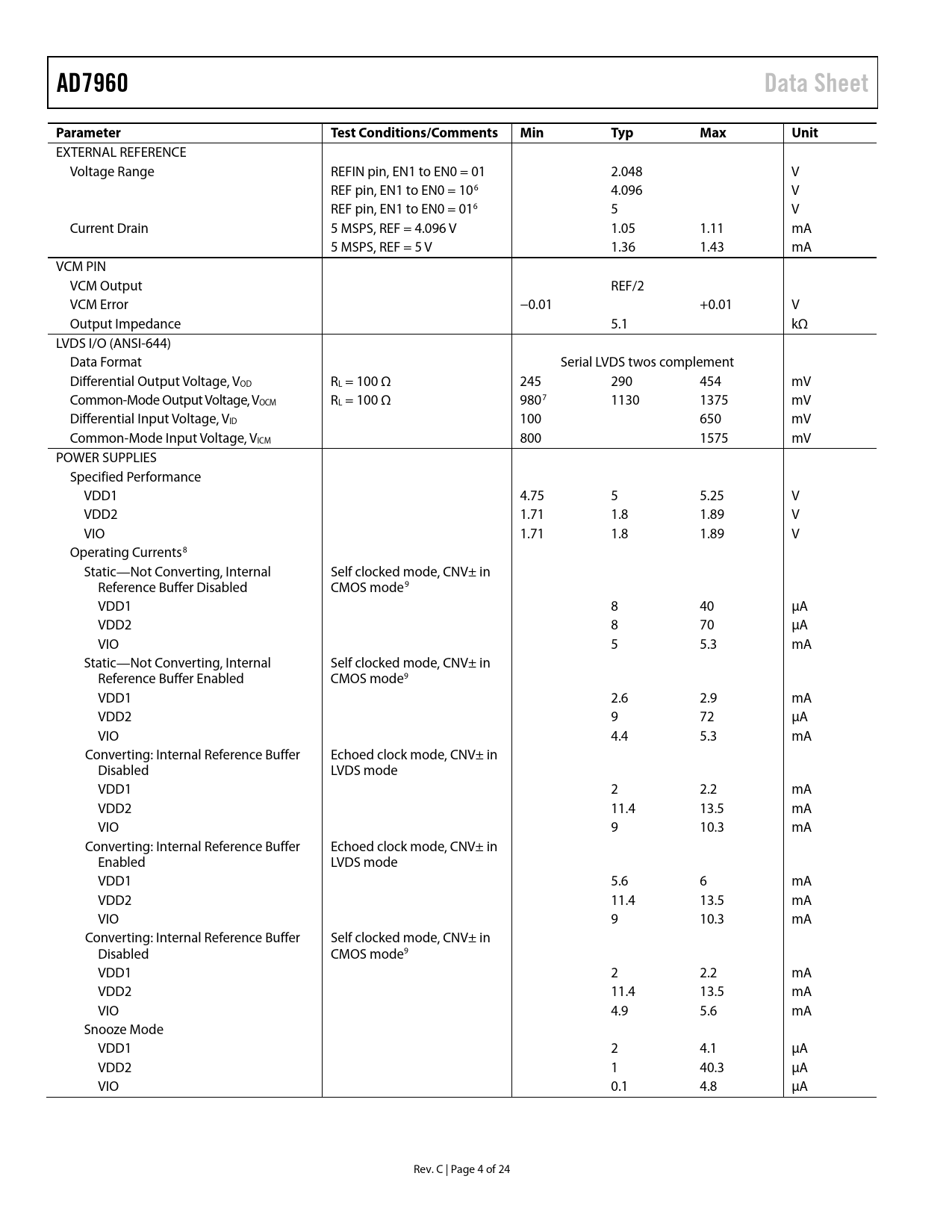

AD7960. Data Sheet. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit

AD7960 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit

Model Line for this Datasheet

Text Version of Document

link to page 6 link to page 6 link to page 6 link to page 6 link to page 6 link to page 6 link to page 6
AD7960 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
EXTERNAL REFERENCE Voltage Range REFIN pin, EN1 to EN0 = 01 2.048 V REF pin, EN1 to EN0 = 106 4.096 V REF pin, EN1 to EN0 = 016 5 V Current Drain 5 MSPS, REF = 4.096 V 1.05 1.11 mA 5 MSPS, REF = 5 V 1.36 1.43 mA VCM PIN VCM Output REF/2 VCM Error −0.01 +0.01 V Output Impedance 5.1 kΩ LVDS I/O (ANSI-644) Data Format Serial LVDS twos complement Differential Output Voltage, VOD RL = 100 Ω 245 290 454 mV Common-Mode Output Voltage, VOCM RL = 100 Ω 9807 1130 1375 mV Differential Input Voltage, VID 100 650 mV Common-Mode Input Voltage, VICM 800 1575 mV POWER SUPPLIES Specified Performance VDD1 4.75 5 5.25 V VDD2 1.71 1.8 1.89 V VIO 1.71 1.8 1.89 V Operating Currents8 Static—Not Converting, Internal Self clocked mode, CNV± in Reference Buffer Disabled CMOS mode9 VDD1 8 40 µA VDD2 8 70 µA VIO 5 5.3 mA Static—Not Converting, Internal Self clocked mode, CNV± in Reference Buffer Enabled CMOS mode9 VDD1 2.6 2.9 mA VDD2 9 72 µA VIO 4.4 5.3 mA Converting: Internal Reference Buffer Echoed clock mode, CNV± in Disabled LVDS mode VDD1 2 2.2 mA VDD2 11.4 13.5 mA VIO 9 10.3 mA Converting: Internal Reference Buffer Echoed clock mode, CNV± in Enabled LVDS mode VDD1 5.6 6 mA VDD2 11.4 13.5 mA VIO 9 10.3 mA Converting: Internal Reference Buffer Self clocked mode, CNV± in Disabled CMOS mode9 VDD1 2 2.2 mA VDD2 11.4 13.5 mA VIO 4.9 5.6 mA Snooze Mode VDD1 2 4.1 µA VDD2 1 40.3 µA VIO 0.1 4.8 µA Rev. C | Page 4 of 24 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Timing Specifications Timing Diagrams Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Terminology Theory of Operation Circuit Information Converter Information Transfer Function Analog Inputs Typical Applications Voltage Reference Options Wake-Up Time from Power-Down and Snooze Modes Power Supply Power-Up Digital Interface Conversion Control Echoed Clock Interface Mode Self Clocked Mode Applications Information Layout Evaluating AD7960 Performance Outline Dimensions Ordering Guide
