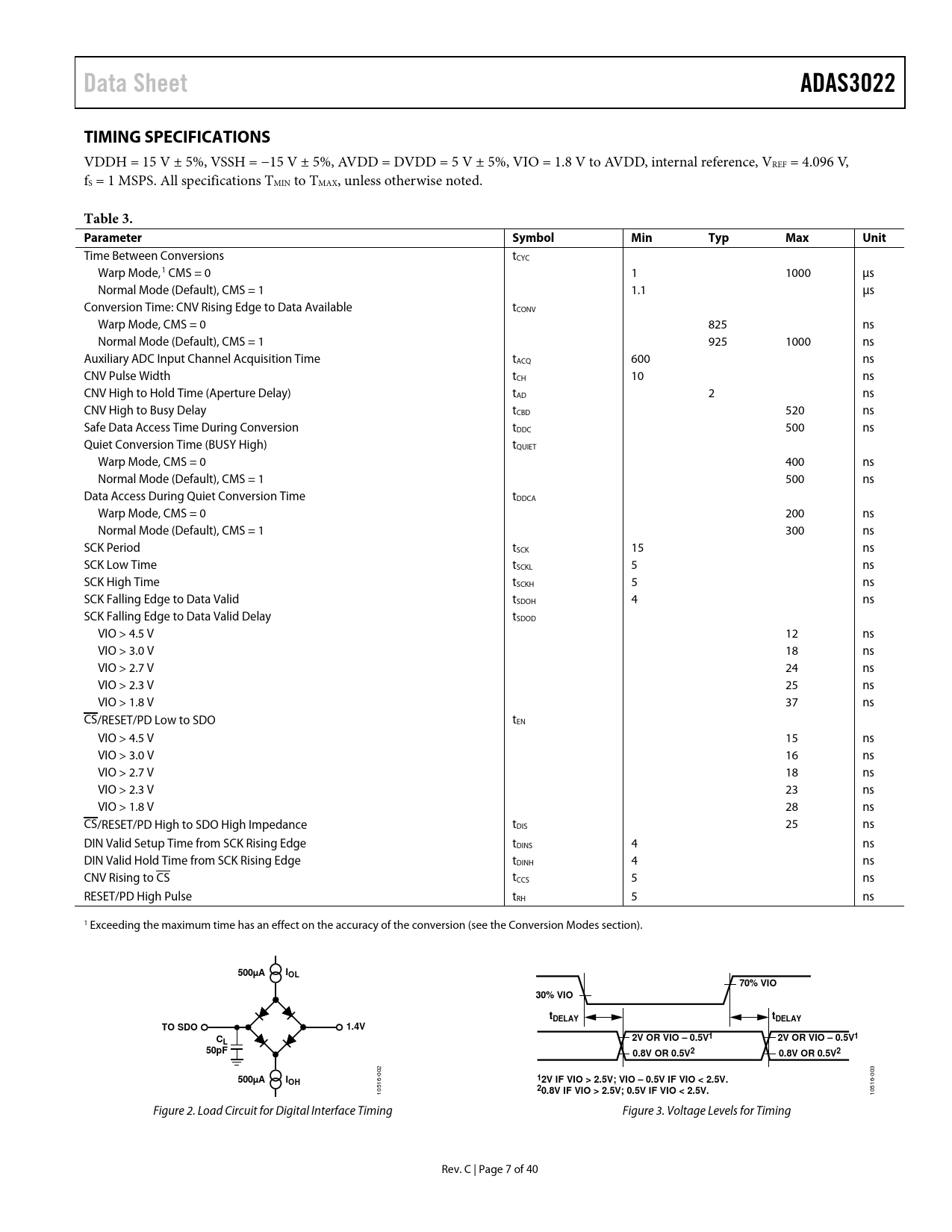

Data Sheet ADAS3022 TIMING SPECIFICATIONS
VDDH = 15 V ± 5%, VSSH = −15 V ± 5%, AVDD = DVDD = 5 V ± 5%, VIO = 1.8 V to AVDD, internal reference, VREF = 4.096 V, fS = 1 MSPS. All specifications TMIN to TMAX, unless otherwise noted.
Table 3. Parameter Symbol Min Typ Max Unit
Time Between Conversions tCYC Warp Mode,1 CMS = 0 1 1000 µs Normal Mode (Default), CMS = 1 1.1 µs Conversion Time: CNV Rising Edge to Data Available tCONV Warp Mode, CMS = 0 825 ns Normal Mode (Default), CMS = 1 925 1000 ns Auxiliary ADC Input Channel Acquisition Time tACQ 600 ns CNV Pulse Width tCH 10 ns CNV High to Hold Time (Aperture Delay) tAD 2 ns CNV High to Busy Delay tCBD 520 ns Safe Data Access Time During Conversion tDDC 500 ns Quiet Conversion Time (BUSY High) tQUIET Warp Mode, CMS = 0 400 ns Normal Mode (Default), CMS = 1 500 ns Data Access During Quiet Conversion Time tDDCA Warp Mode, CMS = 0 200 ns Normal Mode (Default), CMS = 1 300 ns SCK Period tSCK 15 ns SCK Low Time tSCKL 5 ns SCK High Time tSCKH 5 ns SCK Falling Edge to Data Valid tSDOH 4 ns SCK Falling Edge to Data Valid Delay tSDOD VIO > 4.5 V 12 ns VIO > 3.0 V 18 ns VIO > 2.7 V 24 ns VIO > 2.3 V 25 ns VIO > 1.8 V 37 ns CS/RESET/PD Low to SDO tEN VIO > 4.5 V 15 ns VIO > 3.0 V 16 ns VIO > 2.7 V 18 ns VIO > 2.3 V 23 ns VIO > 1.8 V 28 ns CS/RESET/PD High to SDO High Impedance tDIS 25 ns DIN Valid Setup Time from SCK Rising Edge tDINS 4 ns DIN Valid Hold Time from SCK Rising Edge tDINH 4 ns CNV Rising to CS tCCS 5 ns RESET/PD High Pulse tRH 5 ns 1 Exceeding the maximum time has an effect on the accuracy of the conversion (see the Conversion Modes section).
500µA IOL 70% VIO 30% VIO tDELAY tDELAY TO SDO 1.4V C 2V OR VIO – 0.5V1 2V OR VIO – 0.5V1 L 50pF 0.8V OR 0.5V2 0.8V OR 0.5V2
002 003
500µA I 1 OH 2V IF VIO > 2.5V; VIO – 0.5V IF VIO < 2.5V. 2
10516-
0.8V IF VIO > 2.5V; 0.5V IF VIO < 2.5V.
