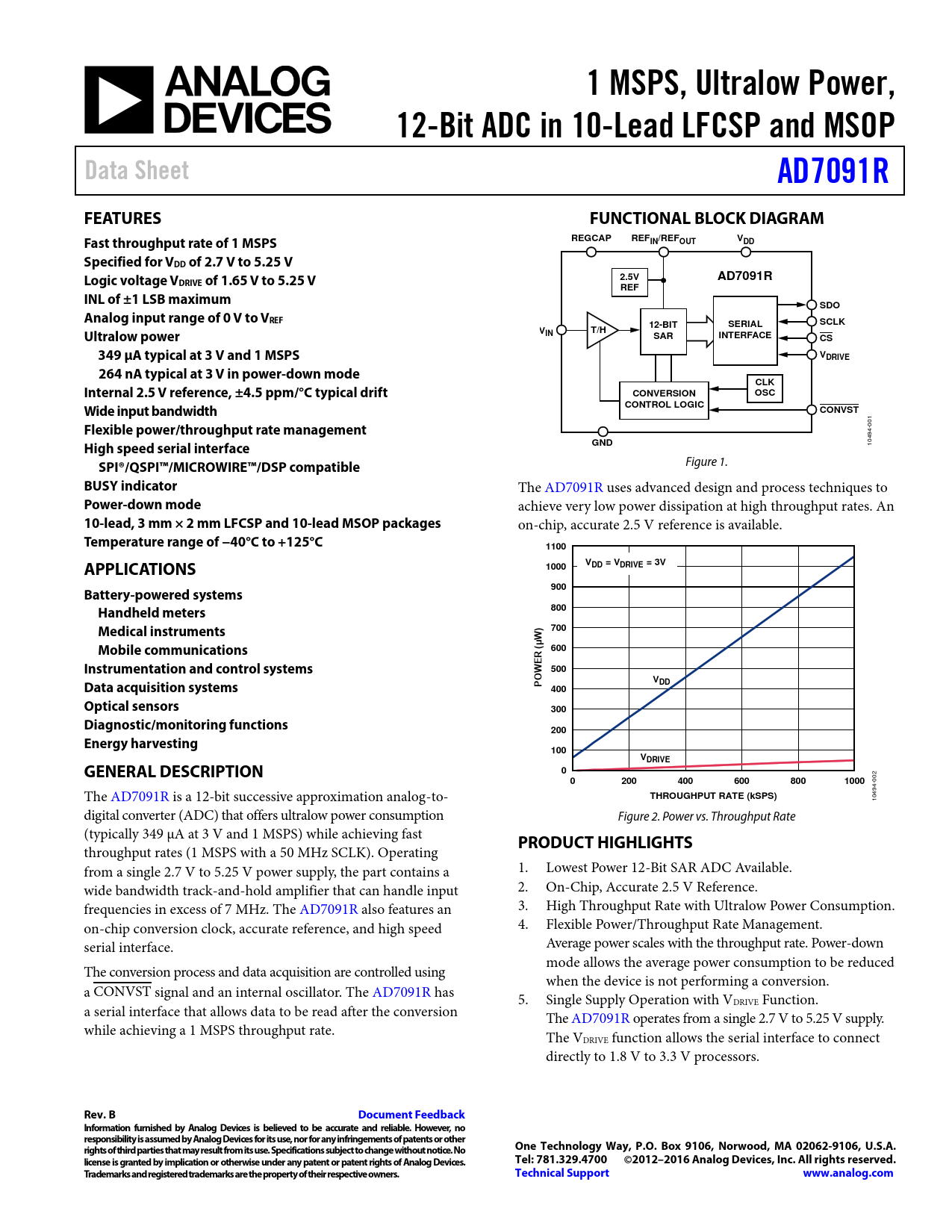

1 MSPS, Ultralow Power,. 12-Bit ADC in 10-Lead LFCSP and MSOP. Data Sheet. AD7091R. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
1 MSPS, Ultralow Power, 12-Bit ADC in 10-Lead LFCSP and MSOP Data Sheet AD7091R FEATURES FUNCTIONAL BLOCK DIAGRAM Fast throughput rate of 1 MSPS REGCAP REF V IN/REFOUT DD Specified for VDD of 2.7 V to 5.25 V Logic voltage V 2.5V AD7091R DRIVE of 1.65 V to 5.25 V REF INL of ±1 LSB maximum SDO Analog input range of 0 V to VREF 12-BIT SERIAL SCLK Ultralow power V T/H IN SAR INTERFACE CS 349 µA typical at 3 V and 1 MSPS VDRIVE 264 nA typical at 3 V in power-down mode CLK Internal 2.5 V reference, ±4.5 ppm/°C typical drift CONVERSION OSC Wide input bandwidth CONTROL LOGIC CONVST Flexible power/throughput rate management
001
High speed serial interface GND
10494-
SPI®/QSPI™/MICROWIRE™/DSP compatible
Figure 1.
BUSY indicator
The AD7091R uses advanced design and process techniques to
Power-down mode
achieve very low power dissipation at high throughput rates. An
10-lead, 3 mm × 2 mm LFCSP and 10-lead MSOP packages
on-chip, accurate 2.5 V reference is available.
Temperature range of −40°C to +125°C 1100 V APPLICATIONS V 1000 DD = V DD = V DR DRIIV V E = 3V E = 3V Battery-powered systems 900 Handheld meters 800 Medical instruments ) 700 W Mobile communications (μ 600 ER Instrumentation and control systems 500 W V Data acquisition systems PO DD 400 Optical sensors 300 Diagnostic/monitoring functions 200 Energy harvesting 100 VDRIVE GENERAL DESCRIPTION 0 0 200 400 600 800 1000
002 The AD7091R is a 12-bit successive approximation analog-to-
THROUGHPUT RATE (kSPS)
10494- digital converter (ADC) that offers ultralow power consumption Figure 2. Power vs. Throughput Rate (typically 349 µA at 3 V and 1 MSPS) while achieving fast
PRODUCT HIGHLIGHTS
throughput rates (1 MSPS with a 50 MHz SCLK). Operating from a single 2.7 V to 5.25 V power supply, the part contains a 1. Lowest Power 12-Bit SAR ADC Available. wide bandwidth track-and-hold amplifier that can handle input 2. On-Chip, Accurate 2.5 V Reference. frequencies in excess of 7 MHz. The AD7091R also features an 3. High Throughput Rate with Ultralow Power Consumption. on-chip conversion clock, accurate reference, and high speed 4. Flexible Power/Throughput Rate Management. serial interface. Average power scales with the throughput rate. Power-down mode al ows the average power consumption to be reduced The conversion process and data acquisition are controlled using when the device is not performing a conversion. a CONVST signal and an internal oscillator. The AD7091R has 5. Single Supply Operation with VDRIVE Function. a serial interface that al ows data to be read after the conversion The AD7091R operates from a single 2.7 V to 5.25 V supply. while achieving a 1 MSPS throughput rate. The VDRIVE function al ows the serial interface to connect directly to 1.8 V to 3.3 V processors.
