Datasheet AD9268 (Analog Devices) - 17

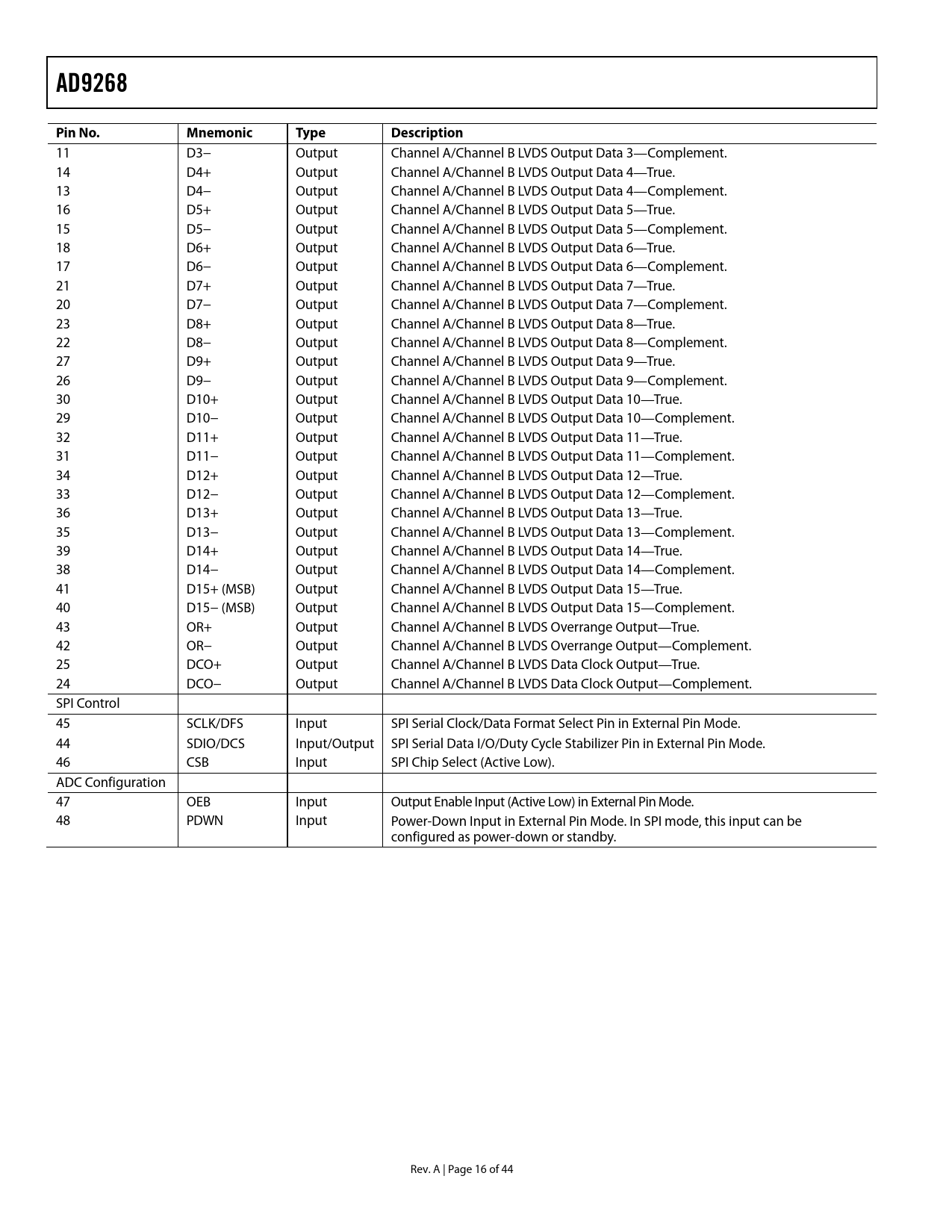

AD9268 Pin No. Mnemonic Type Description
11 D3− Output Channel A/Channel B LVDS Output Data 3—Complement. 14 D4+ Output Channel A/Channel B LVDS Output Data 4—True. 13 D4− Output Channel A/Channel B LVDS Output Data 4—Complement. 16 D5+ Output Channel A/Channel B LVDS Output Data 5—True. 15 D5− Output Channel A/Channel B LVDS Output Data 5—Complement. 18 D6+ Output Channel A/Channel B LVDS Output Data 6—True. 17 D6− Output Channel A/Channel B LVDS Output Data 6—Complement. 21 D7+ Output Channel A/Channel B LVDS Output Data 7—True. 20 D7− Output Channel A/Channel B LVDS Output Data 7—Complement. 23 D8+ Output Channel A/Channel B LVDS Output Data 8—True. 22 D8− Output Channel A/Channel B LVDS Output Data 8—Complement. 27 D9+ Output Channel A/Channel B LVDS Output Data 9—True. 26 D9− Output Channel A/Channel B LVDS Output Data 9—Complement. 30 D10+ Output Channel A/Channel B LVDS Output Data 10—True. 29 D10− Output Channel A/Channel B LVDS Output Data 10—Complement. 32 D11+ Output Channel A/Channel B LVDS Output Data 11—True. 31 D11− Output Channel A/Channel B LVDS Output Data 11—Complement. 34 D12+ Output Channel A/Channel B LVDS Output Data 12—True. 33 D12− Output Channel A/Channel B LVDS Output Data 12—Complement. 36 D13+ Output Channel A/Channel B LVDS Output Data 13—True. 35 D13− Output Channel A/Channel B LVDS Output Data 13—Complement. 39 D14+ Output Channel A/Channel B LVDS Output Data 14—True. 38 D14− Output Channel A/Channel B LVDS Output Data 14—Complement. 41 D15+ (MSB) Output Channel A/Channel B LVDS Output Data 15—True. 40 D15− (MSB) Output Channel A/Channel B LVDS Output Data 15—Complement. 43 OR+ Output Channel A/Channel B LVDS Overrange Output—True. 42 OR− Output Channel A/Channel B LVDS Overrange Output—Complement. 25 DCO+ Output Channel A/Channel B LVDS Data Clock Output—True. 24 DCO− Output Channel A/Channel B LVDS Data Clock Output—Complement. SPI Control 45 SCLK/DFS Input SPI Serial Clock/Data Format Select Pin in External Pin Mode. 44 SDIO/DCS Input/Output SPI Serial Data I/O/Duty Cycle Stabilizer Pin in External Pin Mode. 46 CSB Input SPI Chip Select (Active Low). ADC Configuration 47 OEB Input Output Enable Input (Active Low) in External Pin Mode. 48 PDWN Input Power-Down Input in External Pin Mode. In SPI mode, this input can be configured as power-down or standby. Rev. A | Page 16 of 44 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS ADC DC SPECIFICATIONS ADC AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS EQUIVALENT CIRCUITS THEORY OF OPERATION ADC ARCHITECTURE ANALOG INPUT CONSIDERATIONS Input Common Mode Common-Mode Voltage Servo Dither Differential Input Configurations VOLTAGE REFERENCE Internal Reference Connection External Reference Operation CLOCK INPUT CONSIDERATIONS Clock Input Options Input Clock Divider Clock Duty Cycle Jitter Considerations CHANNEL/CHIP SYNCHRONIZATION POWER DISSIPATION AND STANDBY MODE DIGITAL OUTPUTS Digital Output Enable Function (OEB) TIMING Data Clock Output (DCO) BUILT-IN SELF-TEST (BIST) AND OUTPUT TEST BUILT-IN SELF-TEST (BIST) OUTPUT TEST MODES SERIAL PORT INTERFACE (SPI) CONFIGURATION USING THE SPI HARDWARE INTERFACE CONFIGURATION WITHOUT THE SPI SPI ACCESSIBLE FEATURES MEMORY MAP READING THE MEMORY MAP REGISTER TABLE Open Locations Default Values Logic Levels Transfer Register Map Channel-Specific Registers MEMORY MAP REGISTER TABLE MEMORY MAP REGISTER DESCRIPTIONS Sync Control (Register 0x100) Bits[7:3]—Reserved Bit 2—Clock Divider Next Sync Only Bit 1—Clock Divider Sync Enable Bit 0—Master Sync Enable APPLICATIONS INFORMATION DESIGN GUIDELINES Power and Ground Recommendations LVDS Operation Exposed Paddle Thermal Heat Slug Recommendations VCM RBIAS Reference Decoupling SPI Port OUTLINE DIMENSIONS ORDERING GUIDE
