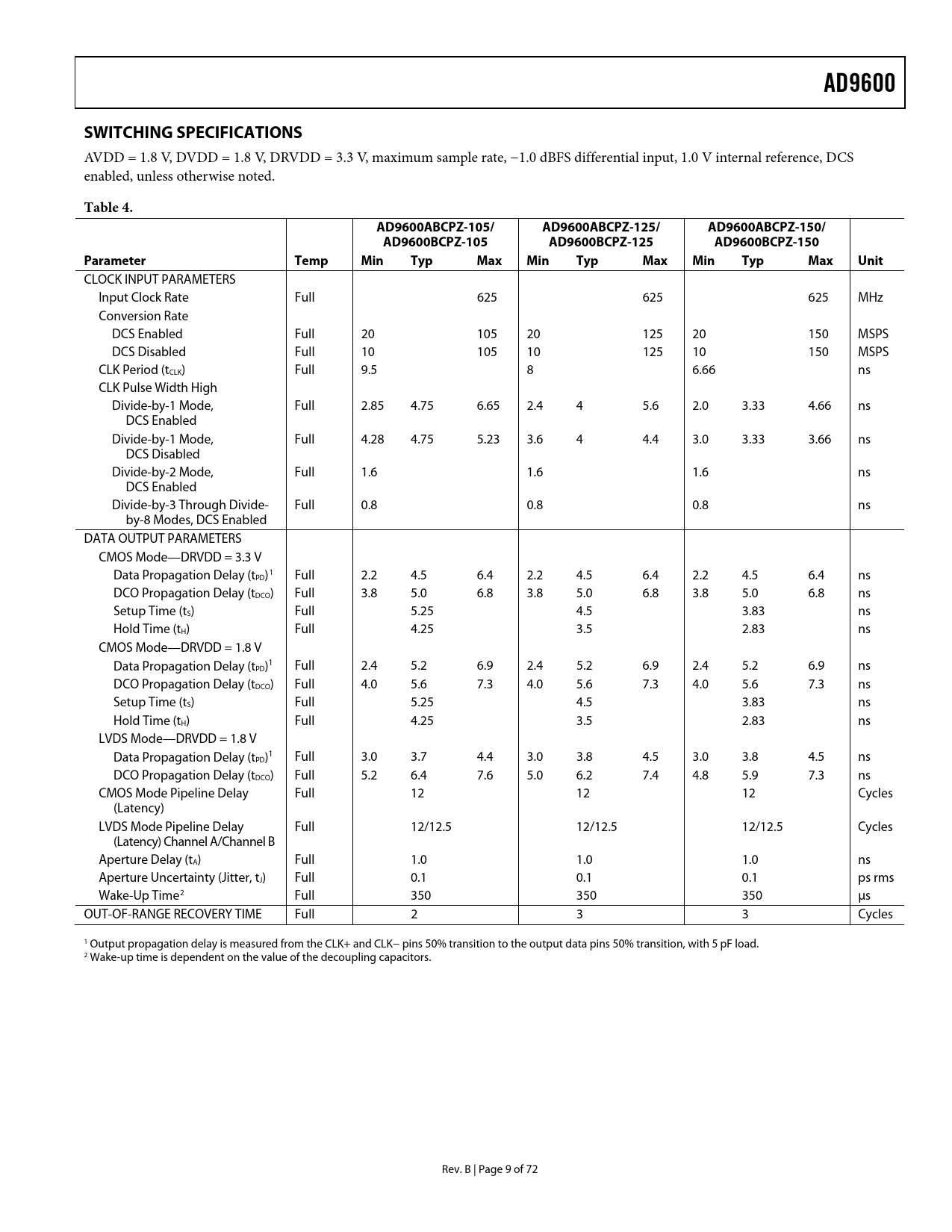

AD9600 SWITCHING SPECIFICATIONS
AVDD = 1.8 V, DVDD = 1.8 V, DRVDD = 3.3 V, maximum sample rate, −1.0 dBFS differential input, 1.0 V internal reference, DCS enabled, unless otherwise noted.
Table 4. AD9600ABCPZ-105/ AD9600ABCPZ-125/ AD9600ABCPZ-150/ AD9600BCPZ-105 AD9600BCPZ-125 AD9600BCPZ-150 Parameter Temp Min Typ Max Min Typ Max Min Typ Max Unit
