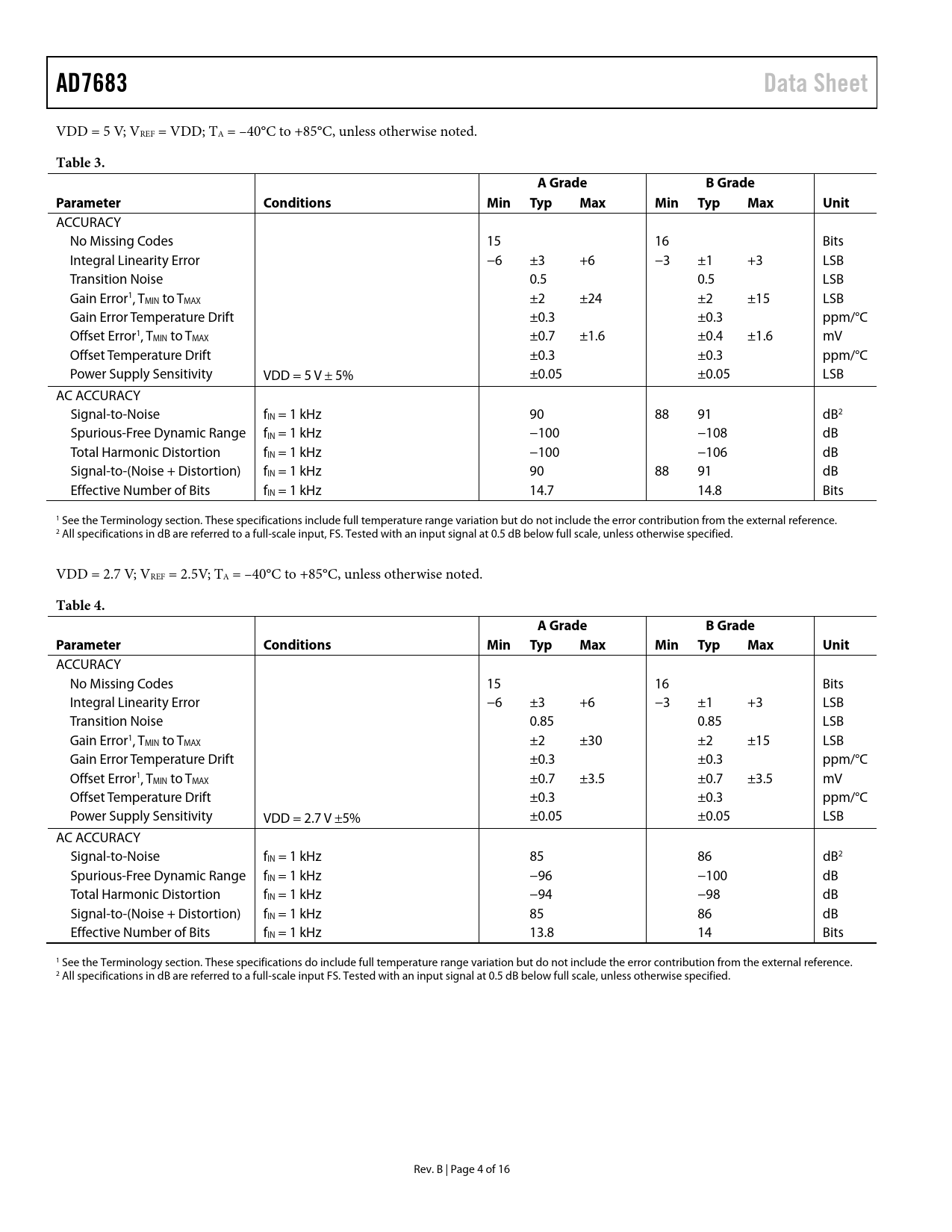

AD7683 Data Sheet
VDD = 5 V; VREF = VDD; TA = –40°C to +85°C, unless otherwise noted.
Table 3. A Grade B Grade Parameter Conditions Min Typ Max Min Typ Max Unit
ACCURACY No Missing Codes 15 16 Bits Integral Linearity Error −6 ±3 +6 −3 ±1 +3 LSB Transition Noise 0.5 0.5 LSB Gain Error1, TMIN to TMAX ±2 ±24 ±2 ±15 LSB Gain Error Temperature Drift ±0.3 ±0.3 ppm/°C Offset Error1, TMIN to TMAX ±0.7 ±1.6 ±0.4 ±1.6 mV Offset Temperature Drift ±0.3 ±0.3 ppm/°C Power Supply Sensitivity VDD = 5 V ± 5% ±0.05 ±0.05 LSB AC ACCURACY Signal-to-Noise fIN = 1 kHz 90 88 91 dB2 Spurious-Free Dynamic Range fIN = 1 kHz −100 −108 dB Total Harmonic Distortion fIN = 1 kHz −100 −106 dB Signal-to-(Noise + Distortion) fIN = 1 kHz 90 88 91 dB Effective Number of Bits fIN = 1 kHz 14.7 14.8 Bits 1 See the Terminology section. These specifications include full temperature range variation but do not include the error contribution from the external reference. 2 All specifications in dB are referred to a full-scale input, FS. Tested with an input signal at 0.5 dB below full scale, unless otherwise specified. VDD = 2.7 V; VREF = 2.5V; TA = –40°C to +85°C, unless otherwise noted.
Table 4. A Grade B Grade Parameter Conditions Min Typ Max Min Typ Max Unit
ACCURACY No Missing Codes 15 16 Bits Integral Linearity Error −6 ±3 +6 −3 ±1 +3 LSB Transition Noise 0.85 0.85 LSB Gain Error1, TMIN to TMAX ±2 ±30 ±2 ±15 LSB Gain Error Temperature Drift ±0.3 ±0.3 ppm/°C Offset Error1, TMIN to TMAX ±0.7 ±3.5 ±0.7 ±3.5 mV Offset Temperature Drift ±0.3 ±0.3 ppm/°C Power Supply Sensitivity VDD = 2.7 V ±5% ±0.05 ±0.05 LSB AC ACCURACY Signal-to-Noise fIN = 1 kHz 85 86 dB2 Spurious-Free Dynamic Range fIN = 1 kHz −96 −100 dB Total Harmonic Distortion fIN = 1 kHz −94 −98 dB Signal-to-(Noise + Distortion) fIN = 1 kHz 85 86 dB Effective Number of Bits fIN = 1 kHz 13.8 14 Bits 1 See the Terminology section. These specifications do include full temperature range variation but do not include the error contribution from the external reference. 2 All specifications in dB are referred to a full-scale input FS. Tested with an input signal at 0.5 dB below full scale, unless otherwise specified. Rev. B | Page 4 of 16 Document Outline Features Applications Application Diagram General Description Table of Contents Revision History Specifications Timing Specifications Timing and Circuit Diagrams Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Terminology Typical Performance Characteristics Applications Information Circuit Information Converter Operation Transfer Functions Typical Connection Diagram Analog Input Driver Amplifier Choice Voltage Reference Input Power Supply Digital Interface Layout Evaluating the AD7683 Performance Outline Dimensions Ordering Guide
