Datasheet AD7788, AD7789 (Analog Devices)

ManufacturerAnalog Devices
Description24-Bit, Single-Channel, Ultra Low Power, Sigma-Delta A/D Converter
Pages / Page20 / 1 — Low Power, 16-/24-Bit,. Sigma-Delta ADCs. Data Sheet. AD7788/. AD7789. …
RevisionC
File Format / SizePDF / 347 Kb
Document LanguageEnglish

Low Power, 16-/24-Bit,. Sigma-Delta ADCs. Data Sheet. AD7788/. AD7789. FEATURES. FUNCTIONAL BLOCK DIAGRAM. AD7788: 1. 6-bit resolution

Datasheet AD7788, AD7789 Analog Devices, Revision: C

Model Line for this Datasheet

Text Version of Document

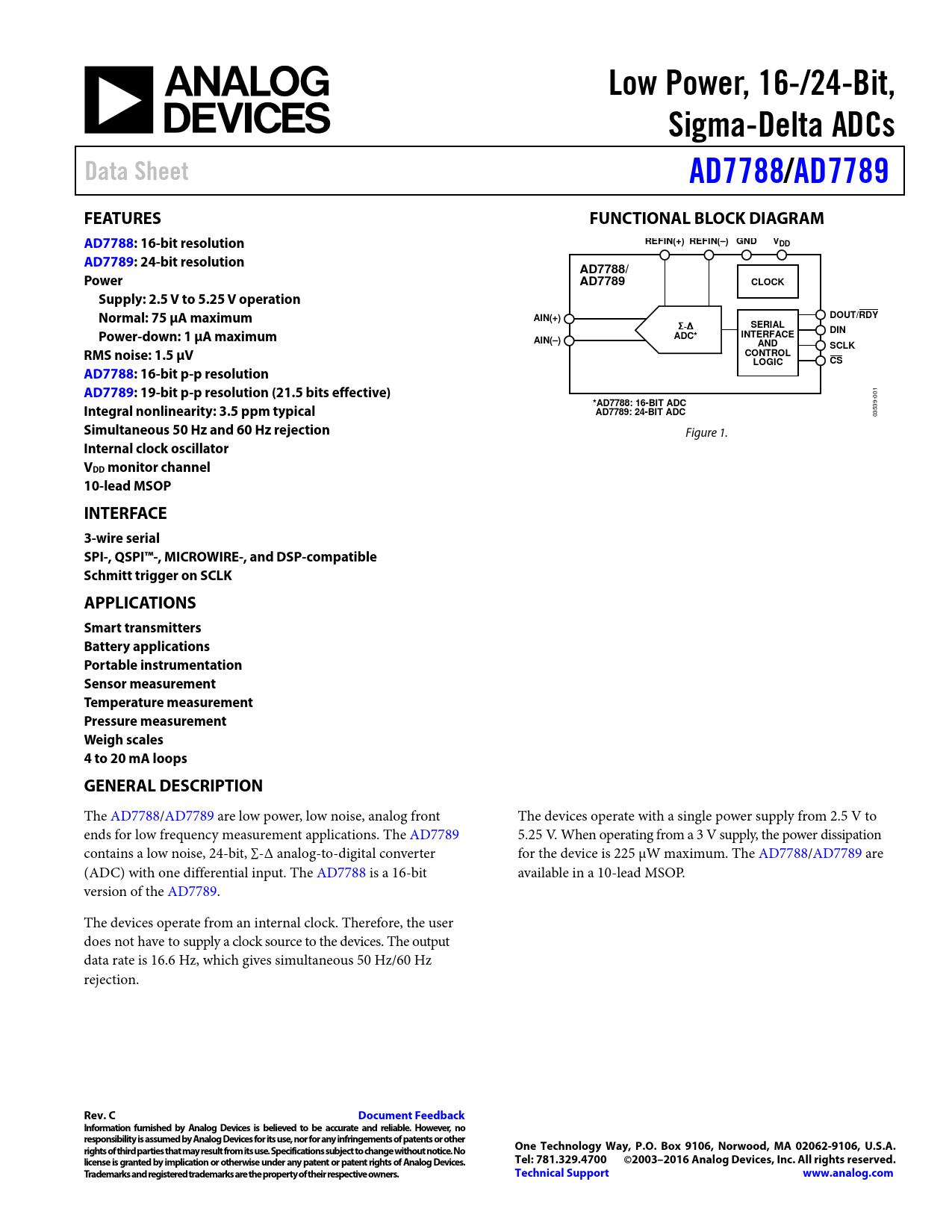

Low Power, 16-/24-Bit, Sigma-Delta ADCs Data Sheet AD7788/ AD7789 FEATURES FUNCTIONAL BLOCK DIAGRAM AD7788: 1 6-bit resolution REFIN(+) REFIN(–) GND VDD AD7789: 2 4-bit resolution AD7788/ Power AD7789 CLOCK Supply: 2.5 V to 5.25 V operation Normal: 75 µA maximum AIN(+) DOUT/RDY SERIAL Σ-Δ Power-down: 1 µA maximum DIN ADC* INTERFACE AIN(–) AND SCLK RMS noise: 1.5 µV CONTROL LOGIC CS AD7788: 1 6-bit p-p resolution AD7789: 1 9-bit p-p resolution (21.5 bits effective)
001
Integral nonlinearity: 3.5 ppm typical *AD7788: 16-BIT ADC AD7789: 24-BIT ADC
03539-
Simultaneous 50 Hz and 60 Hz rejection
Figure 1.
Internal clock oscillator VDD monitor channel 10-lead MSOP INTERFACE 3-wire serial SPI-, QSPI™-, MICROWIRE-, and DSP-compatible Schmitt trigger on SCLK APPLICATIONS Smart transmitters Battery applications Portable instrumentation Sensor measurement Temperature measurement Pressure measurement Weigh scales 4 to 20 mA loops GENERAL DESCRIPTION
The AD7788/AD7789 are low power, low noise, analog front The devices operate with a single power supply from 2.5 V to ends for low frequency measurement applications. The AD7789 5.25 V. When operating from a 3 V supply, the power dissipation contains a low noise, 24-bit, ∑-∆ analog-to-digital converter for the device is 225 µW maximum. The AD7788/AD7789 are (ADC) with one differential input. The AD7788 is a 16-bit available in a 10-lead MSOP. version of the AD7789. The devices operate from an internal clock. Therefore, the user does not have to supply a clock source to the devices. The output data rate is 16.6 Hz, which gives simultaneous 50 Hz/60 Hz rejection.
