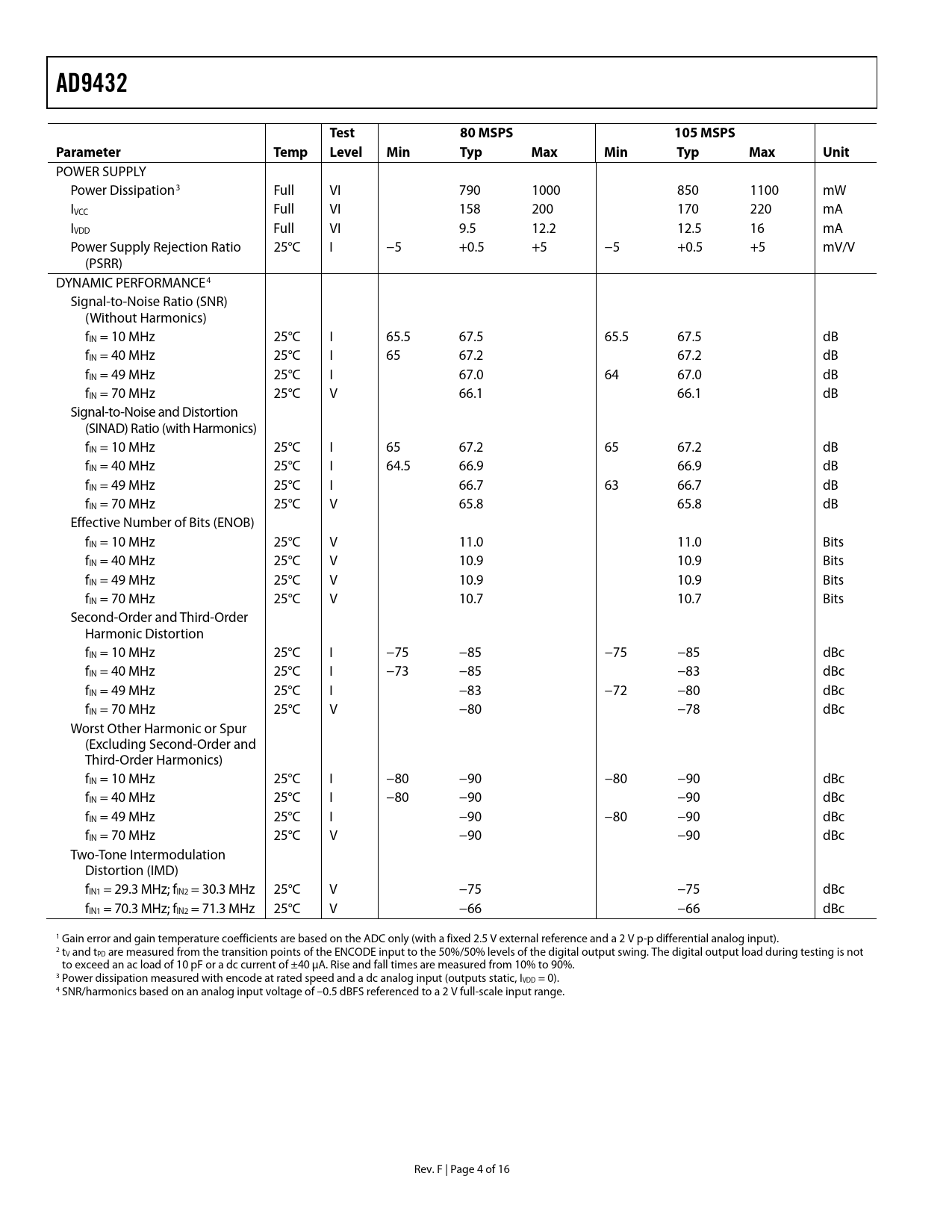

AD9432 Test 80 MSPS 105 MSPS Parameter Temp Level Min Typ Max Min Typ Max Unit
POWER SUPPLY Power Dissipation3 Full VI 790 1000 850 1100 mW IVCC Full VI 158 200 170 220 mA IVDD Full VI 9.5 12.2 12.5 16 mA Power Supply Rejection Ratio 25°C I −5 +0.5 +5 −5 +0.5 +5 mV/V (PSRR) DYNAMIC PERFORMANCE4 Signal-to-Noise Ratio (SNR) (Without Harmonics) fIN = 10 MHz 25°C I 65.5 67.5 65.5 67.5 dB fIN = 40 MHz 25°C I 65 67.2 67.2 dB fIN = 49 MHz 25°C I 67.0 64 67.0 dB fIN = 70 MHz 25°C V 66.1 66.1 dB Signal-to-Noise and Distortion (SINAD) Ratio (with Harmonics) fIN = 10 MHz 25°C I 65 67.2 65 67.2 dB fIN = 40 MHz 25°C I 64.5 66.9 66.9 dB fIN = 49 MHz 25°C I 66.7 63 66.7 dB fIN = 70 MHz 25°C V 65.8 65.8 dB Effective Number of Bits (ENOB) fIN = 10 MHz 25°C V 11.0 11.0 Bits fIN = 40 MHz 25°C V 10.9 10.9 Bits fIN = 49 MHz 25°C V 10.9 10.9 Bits fIN = 70 MHz 25°C V 10.7 10.7 Bits Second-Order and Third-Order Harmonic Distortion fIN = 10 MHz 25°C I −75 −85 −75 −85 dBc fIN = 40 MHz 25°C I −73 −85 −83 dBc fIN = 49 MHz 25°C I −83 −72 −80 dBc fIN = 70 MHz 25°C V −80 −78 dBc Worst Other Harmonic or Spur (Excluding Second-Order and Third-Order Harmonics) fIN = 10 MHz 25°C I −80 −90 −80 −90 dBc fIN = 40 MHz 25°C I −80 −90 −90 dBc fIN = 49 MHz 25°C I −90 −80 −90 dBc fIN = 70 MHz 25°C V −90 −90 dBc Two-Tone Intermodulation Distortion (IMD) fIN1 = 29.3 MHz; fIN2 = 30.3 MHz 25°C V −75 −75 dBc fIN1 = 70.3 MHz; fIN2 = 71.3 MHz 25°C V −66 −66 dBc 1 Gain error and gain temperature coefficients are based on the ADC only (with a fixed 2.5 V external reference and a 2 V p-p differential analog input). 2 tV and tPD are measured from the transition points of the ENCODE input to the 50%/50% levels of the digital output swing. The digital output load during testing is not to exceed an ac load of 10 pF or a dc current of ±40 μA. Rise and fall times are measured from 10% to 90%. 3 Power dissipation measured with encode at rated speed and a dc analog input (outputs static, IVDD = 0). 4 SNR/harmonics based on an analog input voltage of –0.5 dBFS referenced to a 2 V full-scale input range. Rev. F | Page 4 of 16 Document Outline FEATURES APPLICATIONS GENERAL INTRODUCTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING DIAGRAM ABSOLUTE MAXIMUM RATINGS EXPLANATION OF TEST LEVELS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY EQUIVALENT CIRCUITS THEORY OF OPERATION ANALOG INPUT ENCODE INPUT ENCODE VOLTAGE LEVEL DEFINITION DIGITAL OUTPUTS VOLTAGE REFERENCE TIMING APPLICATIONS INFORMATION USING THE AD8138 TO DRIVE THE AD9432 OUTLINE DIMENSIONS ORDERING GUIDE
